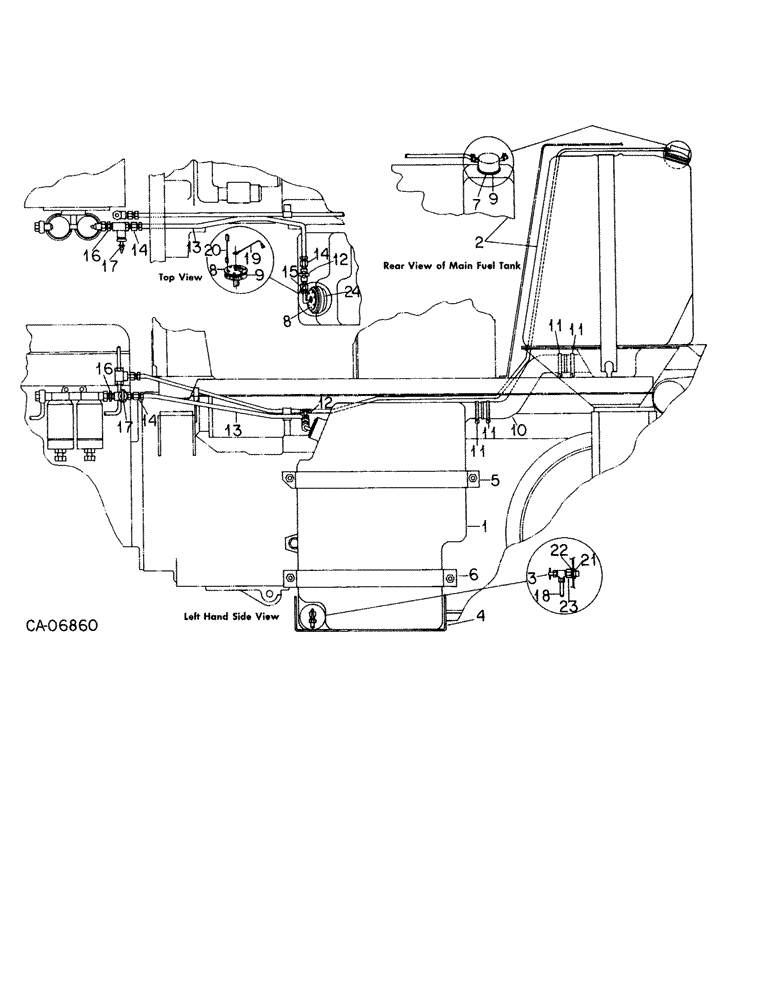

Запчасти Case IH 886 (12-14) - POWER, AUXILIARY FUEL TANK ATTACHMENT, 886 WITH D-358 ENGINES Power

1

130238C

TANK ASSY, auxiliary fuel, replaces 104274C1, 886, also order hose 1251826C1, Serial Range: -17329

1шт.

2

72906C92

TANK

ASSY, fuel

1шт.

3

104465C1

DRAIN VALVE

VALVE, fuel tank drain

1шт.

4

104282C1

BRACKET

ASSY, aux fuel tank

1шт.

NLS

NO LONGER SERVICED

3/4 x 1-1/2 pln type 5

2шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108 pln

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

5

104277C1

SUPPORT ASSY.

SUPPORT, upper aux fuel tank, strap

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

6

104276C1

BRACKET

SUPPORT, lower aux fuel tank, strap

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

107531C2

ELECTRICAL GAUGE

GAGE, electric fuel, sending unit, main fuel tank

1шт.

8

107532C2

SENDER UNIT

GAGE, electric fuel, sending unit, aux fuel tank

1шт.

9

104812C1

GASKET

sending unit

2шт.

423595

SCREW,Hex Hd, #10-24 x 1/2", w/LW

no. 10 x 1/2 znp h/hd l/w mach

10шт.

10

104275C1

FUEL HOSE,41.40 mm ID x 238.80 mm, SAE 30R1

Aux fuel tank, 886 41.40 mm ID x 238.80 mm, SAE 30R1, Serial Range: -17329

1шт.

10

1251826C1

FUEL HOSE,41.40 mm ID x 283.20 mm, SAE 30R1 or SAE 30R1 TYPE 2

Auxillary Fuel Tank, 886 41.40 mm ID x 283.20 mm, SAE 30R1 or SAE 30R1 TYPE 2, Start Serial: 17330

1шт.

11

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, no. 32 hose

4шт.

12

130306C1

VALVE

fuel tank shutoff

1шт.

13

TUBE, aux tank shutoff valve to hand primer valve, use 25 in. of 1/2 OD nylon tube from bulk roll marked 74814C1

1шт.

14

184820H1

CONNECTOR, ELEC

CONNECTOR, hi-duty 86 lb 1/2 x 1/4

2шт.

15

130307C1

CONNECTOR, ELEC

CONNECTOR, hi-duty 88 lb 3/8 x 1/4

1шт.

16

443979

HYD CONNECTOR

NIPPLE, 1/4-18 zn autom pipe

1шт.

17

303753R91

PUMP

VALVE, hand primer, pump, refer to hand primer valve this group, for list of components

1шт.

18

TUBE, aux tank drain, use 2.25 in. of 3/8 OD nylon tube from bulk roll mared 74813C1

1шт.

19

104733C1

CABLE

ASSY, receiving unit to aux tank sender

1шт.

20

104732C1

CABLE

ASSY, aux fuel tank sender to main tank sender

1шт.

21

120156C1

NUT

fuel tank, well

1шт.

22

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

1шт.

23

120157C1

CONNECTOR, ELEC

CONNECTOR, fuel tank, stud

1шт.

24

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, no. 44 hose, 886 w/serial no. 17329 & below, Serial Range: -17329

1шт.
