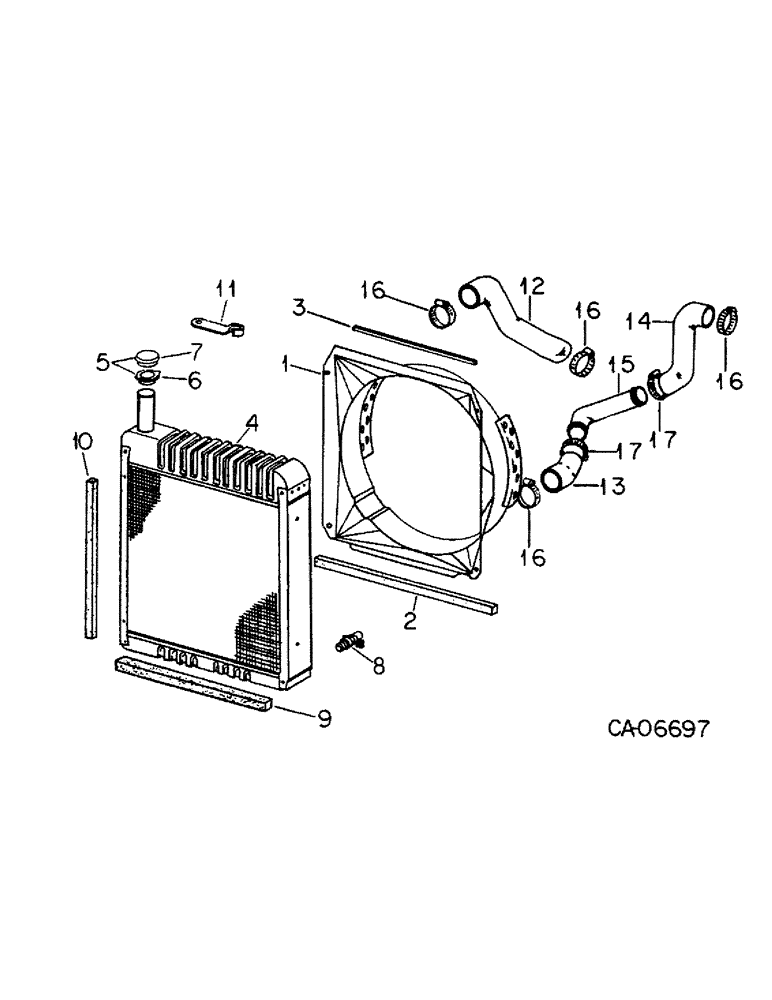

Запчасти Case IH 886 (06-06) - COOLING, RADIATOR AND CONNECTIONS, 786 TRACTORS, 886 WITH D-358 ENGINES Cooling

1

130059C1

SHROUD

ASSY, fan

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

4шт.

2

SEAL, fan shroud, lower, use 15 in. from 4 ft length marked 73213C1

1шт.

3

SEAL, fan shroud, upper, use 19.6 in. from 4 ft length marked 73213C1

1шт.

4

104594C2

RADIATOR

ASSY, less filler cap

1шт.

5

532672R91

CAP

W/COVER, radiator

1шт.

6

532673R1

CAP

ASSY, radiator

1шт.

7

NSS

NOT SOLD SEPARAT

COVER, radiator cap, (not serviced separately) order cap w/cover 532672R91

1шт.

8

614201R1

VALVE

radiator drain

1шт.

9

SEAL, radiator front, use 22.5 in. from 4 ft length of foam gasket marked 73213C1

2шт.

10

SEAL, radiator, side, use 28 in. from 4 ft length of foam gasket marked 73212C1

2шт.

11

68429C1

CLIP

radiator overflow hose

1шт.

12

104595C1

RADIATOR HOSE,2.00" ID x 11.60"

2.00" mm ID X 11.60", Inlet

1шт.

13

131422C1

RADIATOR HOSE,1290.30 mm ID x 2590.80 mm, SAE 20R4

Lower 1290.30 mm ID x 2590.80 mm, SAE 20R4

1шт.

14

131421C1

RADIATOR HOSE,44.50 mm ID, 50.80 mm ID x 94.00 mm

44.50 mm ID, 50.80 mm ID X 94.00, Outlet Upper

1шт.

15

131402C1

TUBE

radiator outlet

1шт.

16

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, hose

4шт.

17

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, hose

2шт.
