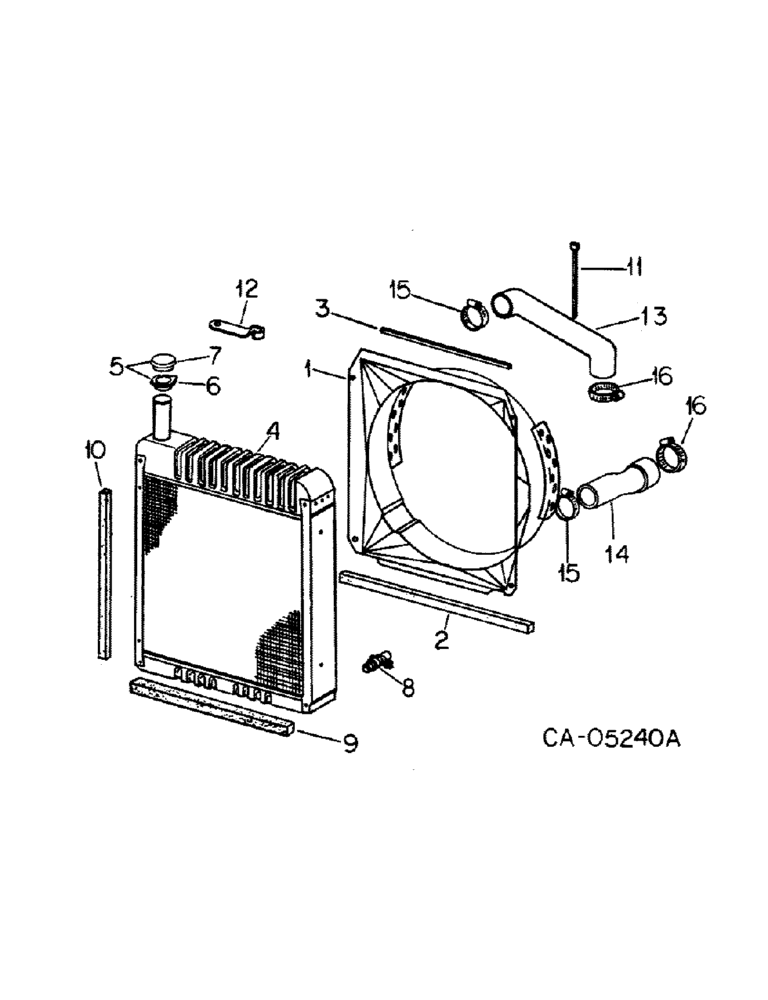

Запчасти Case IH 886 (06-05) - COOLING, RADIATOR AND CONNECTIONS, 986, 1086, 1486, 886 WITH D-360 ENGINES Cooling

1

531210R1

SHROUD

ASSY, fan, 886 tractors only

1шт.

1

531230R1

SHROUD

ASSY, fan, 986, 1086 and 1486 tractors

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

2

SEAL, fan shroud, lower, use 15 in. from 4 ft length of foam gasket marked 73213C1

1шт.

3

SEAL, fan shroud, upper, use 19.6 in. from 4 ft length of foam gasket marked 73213C1

1шт.

4

121723C1

CORE, RADIATOR

RADIATOR ASSY, less filler cap, 886 tractors only

1шт.

4

121725C1

RADIATOR

ASSY, less cap, 1086 and 1486 tractors

1шт.

4

71610C1

RADIATOR

ASSY, less filler cap, all 986 tractors

1шт.

4

71611C1

RADIATOR

ASSY, less filler cap, 1486 tractor w/air conditioned cab

1шт.

5

532672R91

CAP

W/COVER RADIATOR

1шт.

6

532673R1

CAP

ASSY

1шт.

7

COVER, (not serviced separately) order cap w/cover 532672R91

1шт.

8

614201R1

VALVE

COCK, radiator drain

1шт.

9

SEAL, radiator front, use 22.5 in. from 4 ft length of foam gasket marked 73213C1

1шт.

9

394787R1

GASKET

GASKET, radiator baffle, tractors w/tricycle front upper bolster

1шт.

10

SEAL, radiator side, use 28 in. from 4 ft length of foam gasket marked 73212C1

1шт.

11

306132C1

CABLE TIE,14.5" L

STRAP, hose lock, 986, 1086 and 1486 tractors

1шт.

12

68429C1

CLIP

radiator overflow hose

1шт.

13

66003C1

RADIATOR HOSE,57.20 mm ID x 393.70 mm, SAE 20R4 Class SC, SAE 20R Class R Grade 1A

Inlet, 886 tractors only 57.20 mm ID x 393.70 mm, SAE 20R4 Class SC, SAE 20R Class R Grade 1A

1шт.

13

532680R1

RADIATOR HOSE,57.20 mm ID x 302.30 mm, SAE 20R4 CLASS 5C, SAE 20 R4 CLASS R, GRADE 1A

Inlet, 986, 1086 and 1486 Tractors 57.20 mm ID x 302.30 mm, SAE 20R4 CLASS 5C, SAE 20 R4 CLASS R, GRADE 1A

1шт.

13

532680R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

14

532678R1

RADIATOR HOSE,2.50" ID, 2.62" ID x 7.80", SAE 20R4 CLASS5C, SAE 20R4 CLASS R GRADE 1A

2.50" ID, 2.62" mm ID X 7.80", SAE 20R4 CLASS5C, SAE 20R4 CLASS R GRADE 1A, Outlet, 886 Tractors Only

1шт.

14

532681R1

RADIATOR HOSE,66.50 mm ID x 106.68 mm, SAE 20R4, CLASS 5C, SAE 20R4, CLASS R, GRADE 1A

Outlet, 986, 1086 and 1486 Tractors 66.50 mm ID x 106.68 mm, SAE 20R4, CLASS 5C, SAE 20R4, CLASS R, GRADE 1A

1шт.

14

532681R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

15

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, hose

2шт.

16

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP, hose

2шт.

279476A1

SENSOR

PROBE, Low Coolant Level, 1086 tractors

1шт.
