(09-02) - FRAME, FIXED NON-ADJUSTABLE DRAWBAR, MODELS WITHOUT HYDRAULIC DRAFT CONTROL

Запчасти Case IH 886 (09-02) - FRAME, FIXED NON-ADJUSTABLE DRAWBAR, MODELS WITHOUT HYDRAULIC DRAFT CONTROL (12) - FRAME

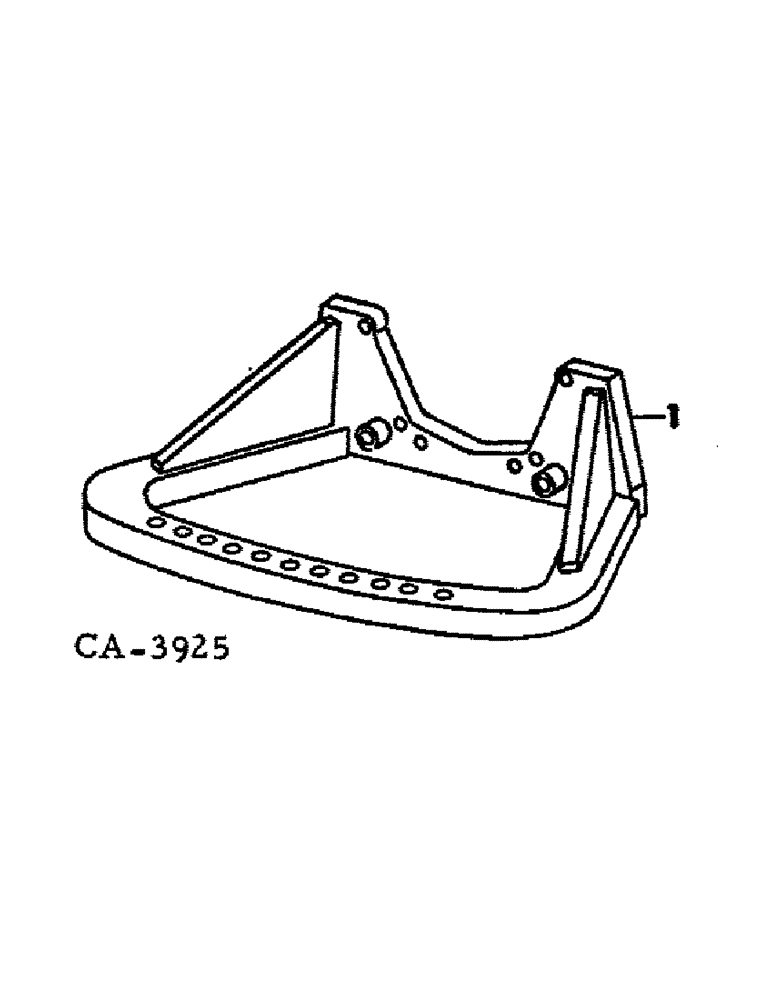

Схема запчастей Case IH 886 - (09-02) - FRAME, FIXED NON-ADJUSTABLE DRAWBAR, MODELS WITHOUT HYDRAULIC DRAFT CONTROL (12) - FRAME
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

67876C1

BAR

DRAWBAR ASSY, fixed

1шт.

20664R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

SCREW, 5/8-11 x 2-3/4 hex-hd cap

6шт.

375624R1

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 8

SCREW, 5/8-11 x 3-3/4 hex-hd cap

2шт.

67872C1

WASHER

mtg. bolt

6шт.
