Запчасти Case IH 886 (10-56) - HYDRAULIC, FEMALE COUPLER (07) - HYDRAULICS

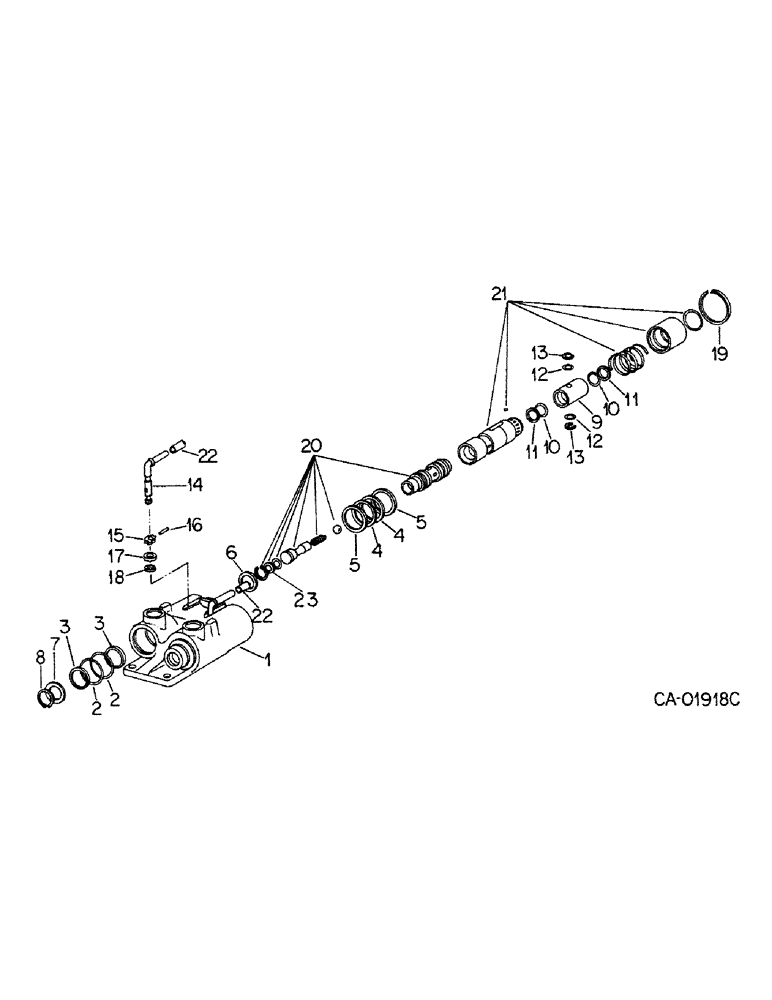

Схема запчастей Case IH 886 - (10-56) - HYDRAULIC, FEMALE COUPLER (07) - HYDRAULICS
19
23
5
1
14
3
13
18
4
7
8
2
22
16
3
17
11
9
12
6
10
22
20
2
21
12
15
5
4
11
13
10

Артикул

Название

Примечание

Количество

544786R95

COUPLING, BREAK AWAY

COUPLER ASSY, female

1шт.

1

544788R2

BODY

coupler

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub

2шт.

2

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

4шт.

3

544789R2

SEAL

sleeve

4шт.

4

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

4шт.

5

544792R1

WASHER,27.66mm ID x 32.08mm OD x 1.32mm Thk

back-up

4шт.

6

57071C1

RING

retaining check body inner

2шт.

7

22769R1

WASHER

used w/body, 544788R1

1шт.

8

21399R1

SNAP RING,#106, Ext

Ring, Snap, , check body outer, used w/body, 544788R1 #106, Ext

2шт.

9

76931C1

SLEEVE

female body small, replaces 544798R1 for 886, Serial Range: -14491

2шт.

9

76931C1

SLEEVE

female body small, replaces 544798R1 for 986, Serial Range: -19475

2шт.

9

76931C1

SLEEVE

female body small, replaces 544798R1 for 1086, Serial Range: -35214

2шт.

9

76931C1

SLEEVE

female body small, replaces 544798R1 for 1486, Serial Range: -19004

2шт.

10

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

4шт.

11

544799R1

WASHER

back-up

4шт.

12

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

866, Serial Range: -14491

4шт.

12

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

986, Serial Range: -19475

4шт.

12

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1086, Serial Range: -35214

4шт.

12

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1486, Serial Range: -19004

4шт.

12

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

786

2шт.

12

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

886, Start Serial: 14492

2шт.

12

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

986, Start Serial: 19476

2шт.

12

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1086, Start Serial: 35215

2шт.

12

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1486, Start Serial: 19005

2шт.

13

544800R1

WASHER

back-up, 886, Serial Range: -14491

4шт.

13

544800R1

WASHER

back-up, 986, Serial Range: -19475

4шт.

13

544800R1

WASHER

back-up, 1086, Serial Range: -35214

4шт.

13

544800R1

WASHER

back-up, 1486, Serial Range: -19004

4шт.

13

76932C1

WASHER

o-ring back-up, 786 tractors

2шт.

13

76932C1

WASHER

o-ring back-up, 886, Start Serial: 14492

2шт.

13

76932C1

WASHER

o-ring back-up, 986, Start Serial: 19476

2шт.

13

76932C1

WASHER

o-ring back-up, 1086, Start Serial: 35215

2шт.

13

76932C1

WASHER

o-ring back-up, 1486, Start Serial: 19005

2шт.

14

142371C1

HANDLE

valve, replaces 544801R1 for 886, Serial Range: -14491

2шт.

14

142371C1

HANDLE

valve, replaces 544801R1 for 986, Serial Range: -19475

2шт.

14

142371C1

HANDLE

valve, replaces 544801R1 for 1086, Serial Range: -35214

2шт.

14

142371C1

HANDLE

valve, replaces 544801R1 for 1486, Serial Range: -19004

2шт.

15

544804R1

CAM

check valve

2шт.

16

544805R1

PIN

cam retainer

2шт.

17

544806R1

RETAINER

cam shaft, 886, Serial Range: -14491

2шт.

17

544806R1

RETAINER

cam shaft, 986, Serial Range: -19475

2шт.

17

544806R1

RETAINER

cam shaft, 1086, Serial Range: -35214

2шт.

17

544806R1

RETAINER

cam shaft, 1486, Serial Range: -19004

2шт.

17

76935C1

SPACER

RETAINER, cam shaft spacer, 786 tractors

2шт.

17

76935C1

SPACER

RETAINER, cam shaft spacer, 886, Start Serial: 14492

2шт.

17

76935C1

SPACER

RETAINER, cam shaft spacer, 986, Start Serial: 19476

2шт.

17

76935C1

SPACER

RETAINER, cam shaft spacer, 1086, Start Serial: 35215

2шт.

17

76935C1

SPACER

RETAINER, cam shaft spacer, 1486, Start Serial: 19005

2шт.

18

399921C1

RING

cam shaft retaining, 886, Serial Range: -14491

2шт.

18

399921C1

RING

cam shaft retaining, 986, Serial Range: -19475

2шт.

18

399921C1

RING

cam shaft retaining, 1086, Serial Range: -35214

2шт.

18

399921C1

RING

cam shaft retaining, 1486, Serial Range: -19004

2шт.

19

537468R1

SNAP RING,#193, 2.081", Int

RING, retaining

2шт.

20

549158R1

VALVE

ASSY, check

2шт.

There is an O-ring that is on this valve assy that is between the back-up washer # 23 and the retainer spring. The O-ring number is 238-6113. Sae size # 113, nominal I.D. is .562 material class is 6 and the nominal which is .094. ms 5-7-99

1шт.

21

549159R2

SLEEVE

ASSY, female body

2шт.

22

139346C1

SLEEVE

valve handle, black, motor control valve coupler, 986, Serial Range: 24000-27999

2шт.

22

139346C1

SLEEVE

valve handle, black, motor control valve coupler, 1086, Serial Range: 48000-54999

2шт.

22

139346C1

SLEEVE

valve handle, black, motor control valve coupler, 1486, Serial Range: 26000-29149

2шт.

22

139347C1

SLEEVE

valve handle, yellow, second aux control valve couple, 986, Serial Range: 24000-27999

2шт.

22

139347C1

SLEEVE

valve handle, yellow, second aux control valve coupler, 1086, Serial Range: 48000-54999

2шт.

22

139347C1

SLEEVE

valve handle, yellow, second aux control valve coupler, 1486, Serial Range: 26000-29149

2шт.

22

139348C1

SLEEVE

valve handle, blue, third aux control valve coupler, 986, Serial Range: 24000-27999

2шт.

22

139348C1

SLEEVE

valve handle, blue, third aux control valve coupler, 1086, Serial Range: 48000-54999

2шт.

22

139348C1

SLEEVE

valve handle, blue, third aux control valve coupler, 1486, Serial Range: 26000-29149

2шт.

22

139349C1

SLEEVE

valve handle, tan, fourth aux control valve coupler, 986, Serial Range: 24000-27999

2шт.

22

139349C1

SLEEVE

valve handle, tan, fourth aux control valve coupler, 1086, Serial Range: 48000-54999

2шт.

22

139349C1

SLEEVE

valve handle, tan, fourth aux control valve coupler, 1486, Serial Range: 26000-29149

2шт.

23

544795R1

WASHER

back-up

2шт.

549160R92

PACKAGE

hydraulic coupler o-ring and seal service, consists of

1шт.

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

4шт.

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

4шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

4шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

544789R2

SEAL

4шт.

544792R1

WASHER,27.66mm ID x 32.08mm OD x 1.32mm Thk

4шт.

544799R1

WASHER

4шт.

544800R1

WASHER

4шт.

76932C1

WASHER

2шт.

399921C1

RING

2шт.

76936C91

PACKAGE

female coupling handle service, replaces sleeve 544798R1 & handle assy 544801R1 on 886, consists of, Serial Range: -14491

1шт.

76936C91

PACKAGE

female coupling handle service, replaces sleeve 544798R1 & handle assy 544801R1 on 986, consists of, Serial Range: -19475

1шт.

76936C91

PACKAGE

female coupling handle service, replaces sleeve 544798R1 & handle assy 544801R1 on 1086, consists of, Serial Range: -35214

1шт.

142371C1

HANDLE

VALVE

1шт.

76931C1

SLEEVE

1шт.

76935C1

SPACER

1шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

76932C1

WASHER

1шт.

Выбрано товаров: 90
