Запчасти Case IH 886 (10-51) - HYDRAULIC, THIRD VALVE FOR TRIPLE AUXILIARY VALVES (07) - HYDRAULICS

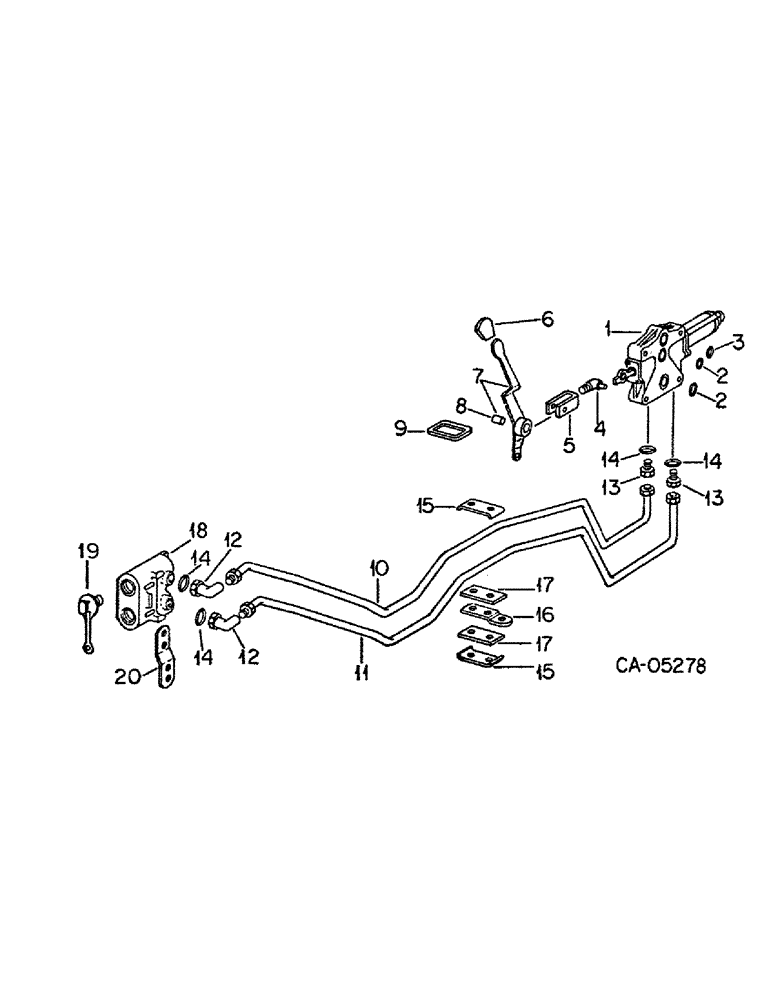

Схема запчастей Case IH 886 - (10-51) - HYDRAULIC, THIRD VALVE FOR TRIPLE AUXILIARY VALVES (07) - HYDRAULICS
19
15
14
2
20
13
14
7
14
6
10
12
3
8
2
5
14
12
11
4
17
15
18
1
17
16
13
9

Артикул

Название

Примечание

Количество

62771C91

PACKAGE

PARTS ACCESSORY, third auxiliary valve, 786, 886 and 986 tractors w/double auxiliary valve

1шт.

62770C91

PACKAGE

PARTS ACCESSORY, third auxiliary valve, 1086 and 1486 tractors w/double auxiliary valve

1шт.

1

62464C94

VALVE

ASSY, aux control, 2250 PSI, 1086 and 1486 tractors, refer to open center control valve this group for list of components

1шт.

1

62463C94

VALVE, CHECK

VALVE ASSY, aux control, 2000 PSI, 786, 886 and 986 tractor, refer to open center control valve this group for list of components

1шт.

20848R1

BOLT,Hex, 3/8" - 16 x 6 1/2", Gr 8

SCREW, 3/8-16 x 6-1/2 hex-hd cap type 8

4шт.

2

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32

2шт.

3

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

1шт.

4

104230C1

ROD

aux valve operating

1шт.

103338

WASHER,#10

.219 x .500 x .049 flat

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cotter

1шт.

118625

NUT

3/8-24 hex. jam

1шт.

5

104543C1

CLEVIS COUPLING,3/8" - 24

CLEVIS, valve rod

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN, 3/8 x 1.218 PHC clevis

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

6

1259760C1

BALL KNOB

KNOB, aux valve control, replaces 120197C2

1шт.

7

104249C91

HANDLE

ASSY, third valve

1шт.

8

104542C1

BUSHING,19.07mm ID x 20.68mm OD x 18.29mm L

control valve handle

1шт.

16066R1

WASHER

SPACER, aux valve handle, outer and inner (or as required)

2шт.

9

135877C1

SEAL

control platform, replaces 104535C1

1шт.

10

104618C1

HYD TUBE

TUBE ASSY, 3rd valve raise, 1086 and 1486 tractors

1шт.

10

104682C1

HYD TUBE

TUBE ASSY, 3rd valve raise, 786, 886 and 986 tractors

1шт.

11

104619C1

HYD TUBE

TUBE ASSY, 3rd valve drop

1шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg

2шт.

13

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube

2шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

15

104795C1

CLAMP

aux valve tubes

2шт.

16

104797C1

PLATE

isomount, aux valve tubes

1шт.

17

104798C1

STRIP

isomount, aux valve tubes

2шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

18

544786R95

COUPLING, BREAK AWAY

COUPLER ASSY, female, refer to female coupler this group for list of components

1шт.

19

64757C1

PLUG

ASSY, coupler dust

2шт.

20

120012C1

SUPPORT

BAR, coupler mounting

1шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

2шт.

Выбрано товаров: 35
