Артикул
Название
Примечание
Количество

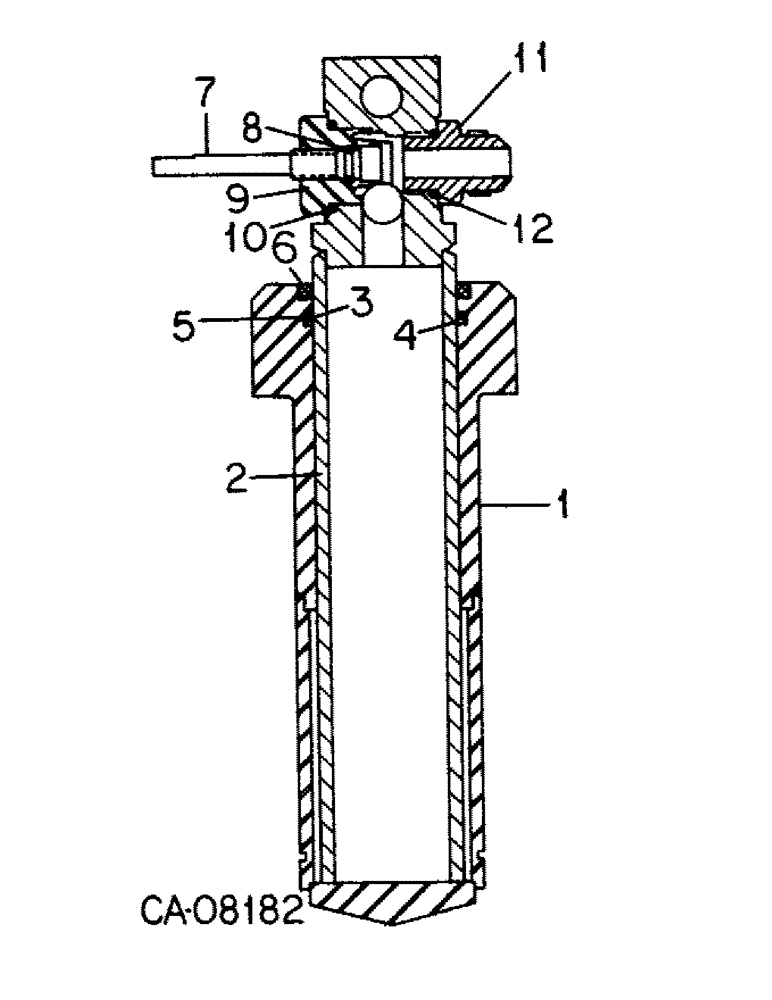

399093R98
CYLINDER
ASSY, single acting ram hyd
1шт.
1
NSS
NOT SOLD SEPARAT
BODY ASSY, hydraulic cylinder, (not serviced separately) order cylinder assy, 399093R98
1шт.
2
399313R4
ROD
ASSY, hyd cylinder
1шт.
3
364108R1
O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro
1-13/16 x 2 class 5
1шт.
4
145387C1
WASHER
WASHER, cylinder rod o-ring back-up
1шт.
5
145388C1
SEALING RING
RING, cylinder rod rectangular
1шт.
6
123354C1
WIPER SEAL
WIPER, rod
1шт.
7
399317R2
ADJUSTMENT SCREW
adjusting
1шт.
8
359158R1
O-RING,0.301" ID x 0.07" Width
-011, 70 Duro, .031" ID x .070" Thk, Adjusting screw
1шт.
9
399318R2
RETAINER,Hex, 7/8" - 14 x 0.615"
adjusting screw
1шт.
10
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
3/4 x 15/16 x 3/32
1шт.
11
9410203
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
UNION, 3/4-16 C-Z 37 deg hyd flared tube short swivel, hydraulic cylinder body
1шт.
79241C1
PACKAGE
KIT, o-ring and seal service, consists of ref nos 3 through 6
1шт.
Выбрано товаров: 14
