Запчасти Case IH 886 (10-36) - HYDRAULIC, UNLOADING VALVE, MODELS WITH DRAFT CONTROLS (07) - HYDRAULICS

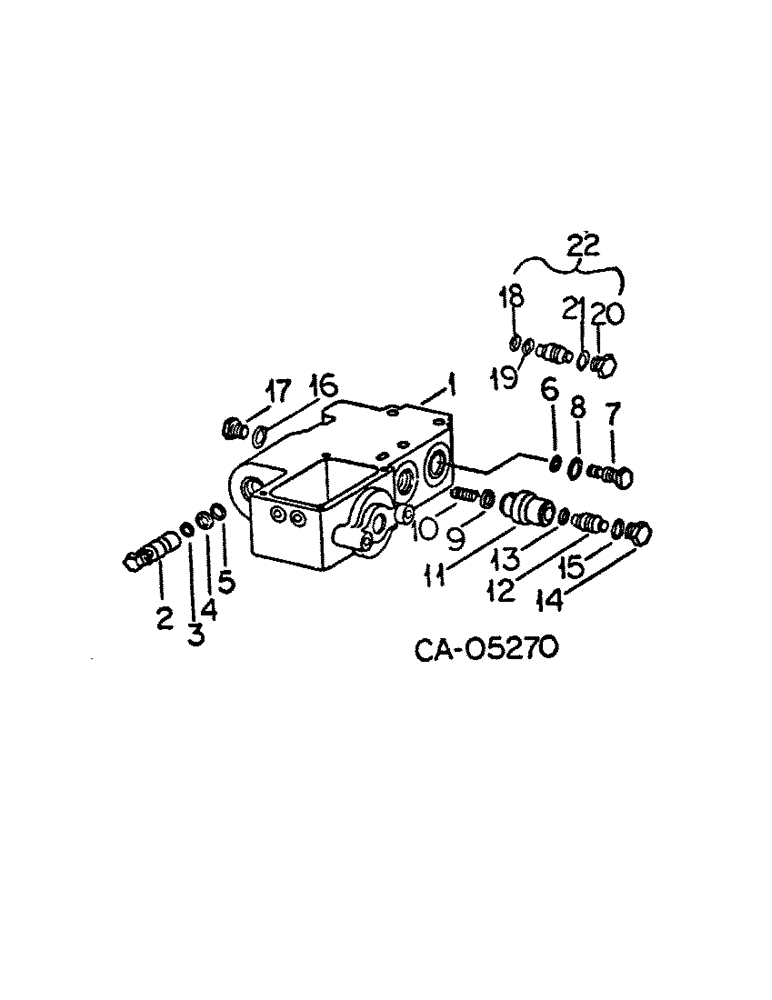

Схема запчастей Case IH 886 - (10-36) - HYDRAULIC, UNLOADING VALVE, MODELS WITH DRAFT CONTROLS (07) - HYDRAULICS
7
14
2
4
20
21
16
9
10
13
17
15
11
18
8
1
12
3
19
5
6
22

Артикул

Название

Примечание

Количество

108516C92

VALVE

ASSY, unloading, 2300 PSI, 786, 886 and 986 tractors

1шт.

108517C91

VALVE

ASSY, unloading, 2500 PSI, 1086 and 1486 tractors

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

186279

BOLT,Hex, 3/8" - 16 x 3 1/8", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

1

108520C1

BODY

unloading valve

1шт.

2

396729R93

VALVE

relief, 2300 PSI, 786, 886 and 986 tractors

1шт.

2

543976R91

VALVE

pilot relief, 2500 PSI, 1086 and 1486 tractors

1шт.

3

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

4

378985R2

BACK-UP RING

back-up-riv chamber

1шт.

5

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 class 6

1шт.

6

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Ball Retainer, Large

1шт.

7

108519C1

PLUG

simultaneous lift

1шт.

8

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tubing

1шт.

9

108522C1

WASHER

unloading valve seal

1шт.

10

128100C1

SPRING

unloading valve

1шт.

11

108610C1

HOUSING

BODY ASSY, unloading, Includes Unloading Piston Poppet

1шт.

12

108715C1

PISTON

ASSY, unloading valve

1шт.

13

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

13/16 x 1-1/16 x 1/8

1шт.

14

324605R1

PLUG

unloading valve

1шт.

15

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1.0 in. tubing

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tubing

1шт.

17

9410358

PLUG

3/8 C-Z str thd o-ring boss

1шт.

18

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Ball Retainer, Large

1шт.

19

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 x 15/16 x 1/16

1шт.

20

9410361

PLUG

1-1/16-12 str-thd o-ring boss

1шт.

21

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

22

63737C91

KIT

PARTS ACCESSORY, sequence raise

1шт.

Выбрано товаров: 29
