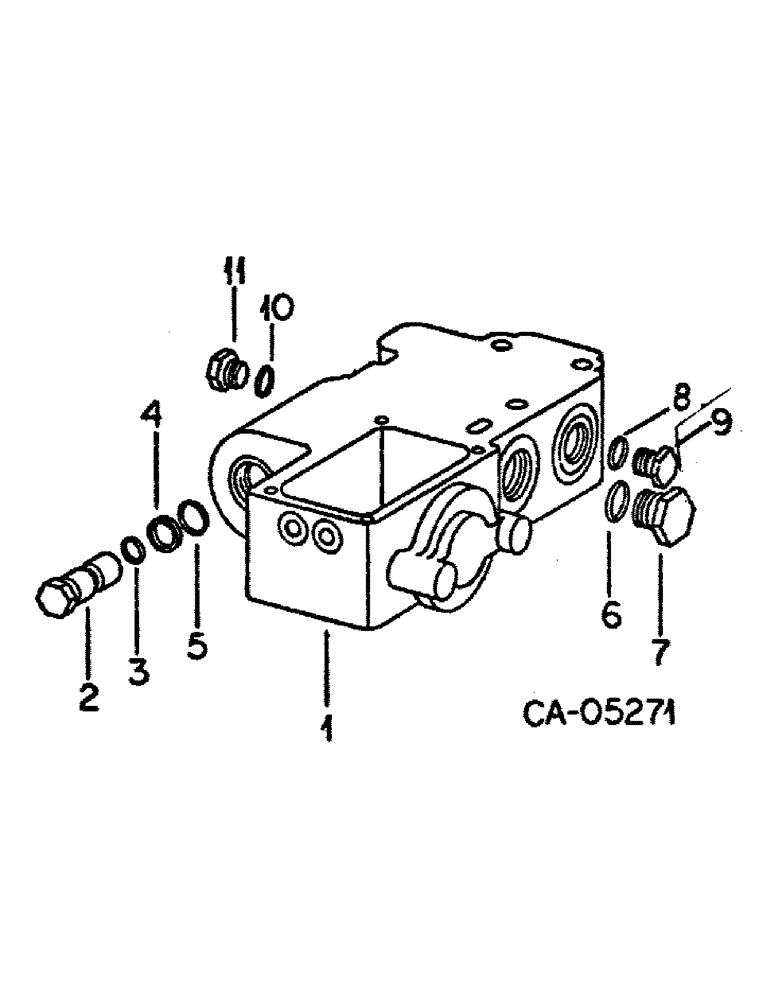

Запчасти Case IH 886 (10-25[A]) - HYDRAULIC, RELIEF VALVE MANIFOLD, MODELS WITHOUT DRAFT CONTROL (07) - HYDRAULICS

1

BODY, relief valve manifold, (not serviced separately) order valve assy, 108554C92 or 108555C91

1шт.

2

396729R93

VALVE

ASSY, pilot relief, 2300 PSI, 786, 886 and 986 tractors

1шт.

2

543976R91

VALVE

ASSY, pilot relief, 2500 PSI, 1086 and 1486 tractors

1шт.

3

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

4

378985R2

BACK-UP RING

back-up rev chamber

1шт.

5

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 class 6

1шт.

6

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. tubing

1шт.

7

324605R1

PLUG

str thd o-ring boss

1шт.

8

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tubing

1шт.

9

9410361

PLUG

3/4 C-Z str thd o-ring boss

1шт.

10

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

11

9410358

PLUG

3/8 C-Z str thd o-ring boss

1шт.
