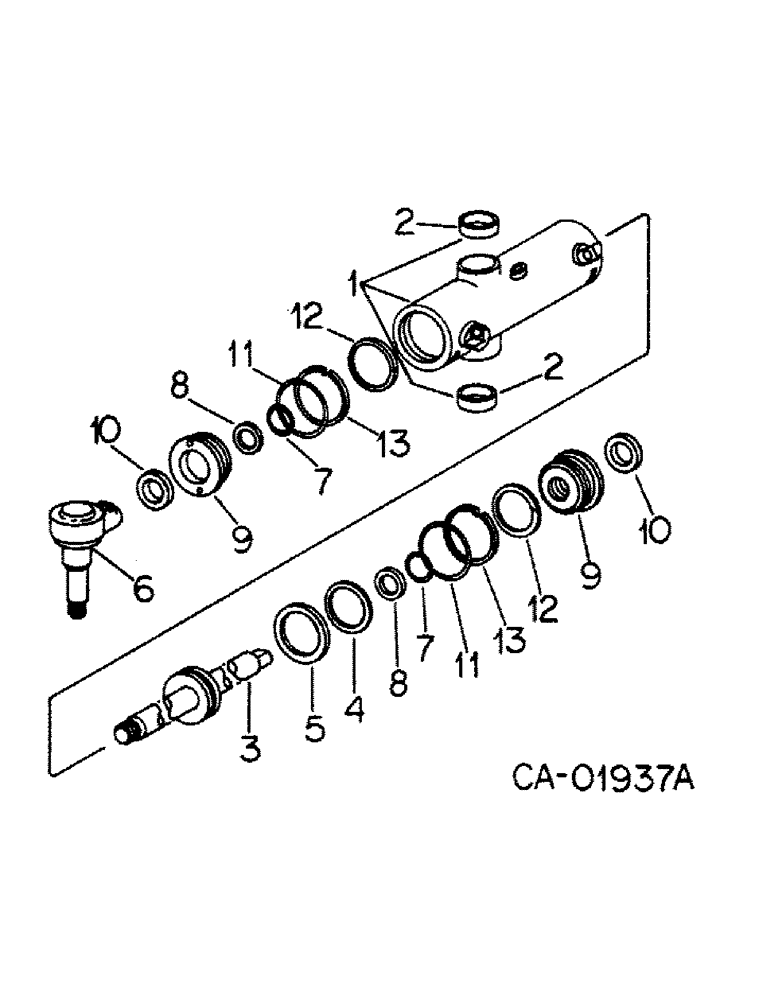

Запчасти Case IH 886 (10-20) - HYDRAULIC, POWER STEERING CYLINDER (07) - HYDRAULICS

63864C92

CYLINDER

ASSY, hyd power steering

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSY, hyd cylinder, (not serviced separately) order cylinder assy, 63864C92

1шт.

2

533283R1

BUSHING,38.16mm ID x 41.41mm OD x 10.99mm L

trunnion

2шт.

3

533286R21

ROD

ASSY, piston

1шт.

4

22240R1

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

2 x 2-1/4 x 1/8, piston seal

1шт.

5

379570R1

SEALING RING

piston

1шт.

6

END, ball joint, refer to hydraulic power steering connections, this group

1шт.

7

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8, piston rod, use w/63864C91

2шт.

7

119185C1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

piston rod, use w/63864C92

2шт.

8

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

rod o-ring back-up, use w/63864C91

2шт.

9

533288R2

JACK HEAD

HEAD, cylinder front

2шт.

10

532856R91

SEALING RING

ASSY, scraper oil, replaces 378587R91

2шт.

11

379457R1

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

2-3/16 x 2-3/4 x 3/32, front head

2шт.

12

382063R1

BACK-UP RING,2.385" ID x 0.052" Width

o-ring back-up

2шт.

13

391985R1

SPRING

RING, front head retaining

2шт.

80446C91

PACKAGE

KIT, hydraulic cylinder service, replaces 533290R91, consists of (2) o-ring 379457R1, (1) o-ring 22240R1, (2) ring 391985R1, (2) seal 532856R91, (1) seal 379570R1, (2) washer 382063R1, (2) seal 119185R1

1шт.
