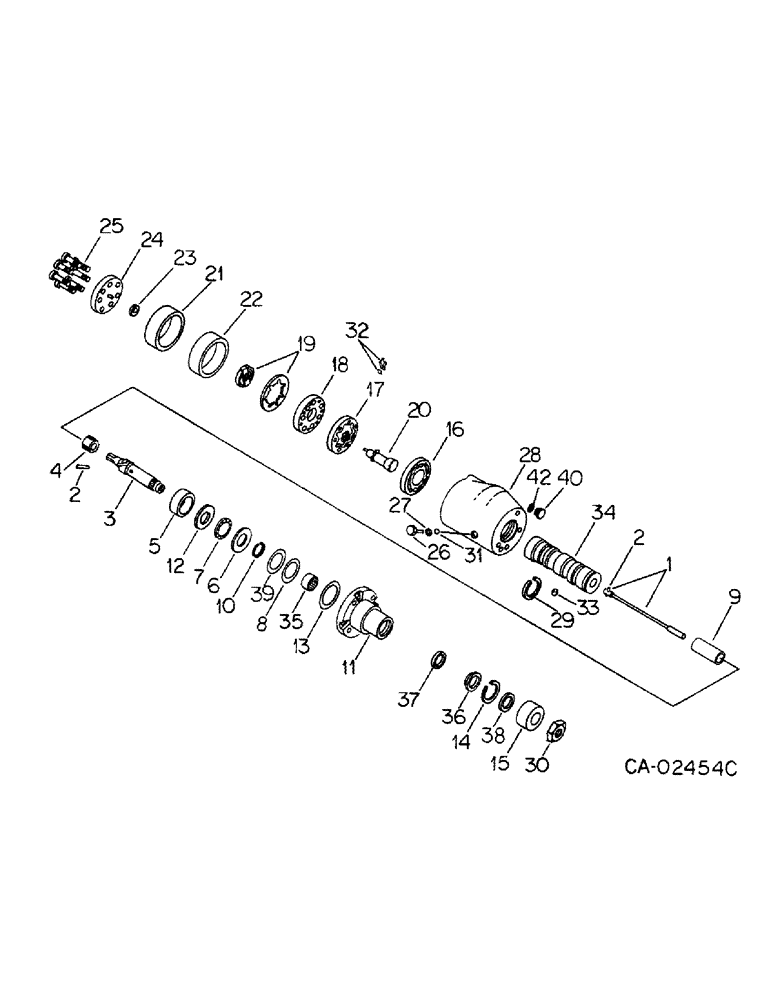

Запчасти Case IH 886 (10-19) - HYDRAULIC, HYDROSTATIC POWER STEERING HAND PUMP (07) - HYDRAULICS

928751C95

LOCK VALVE

PUMP ASSY, hydrostatic power steering hand, vendor# HGA08040

1шт.

120229C93

PUMP

ASSY, hydrostatic power steering hand, vendor# HGA10038

1шт.

1263446C91R

REMAN-STEERING VALVE

986, 1086, 1486, All (1/74-12/79), 786, 886, Both (1/74-12/80), All INTERNATIONAL DIESEL TRACTOR, ASSY, hydrostatic power steering hand, Reman for New PN 120229C93

1шт.

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

1

537271R1

ROD

TORSION BAR ASSY, used w/928751C95 pump

1шт.

1

535055R1

BAR

TORSION BAR ASSY, used w/120229C93 pump

1шт.

2

535056R1

PIN

torsion bar needle

1шт.

3

924665C2

SHAFT

input

1шт.

4

535058R1

RING

drive

1шт.

5

928468C1

SPACER

1шт.

6

535087R1

THRUST WASHER

thrust

1шт.

7

379783R91

THRUST BEARING

BEARING ASSY, thrust

1шт.

8

67567C1

PACKAGE

KIT, shim, consists of (1) shim .002 (NSS), (1) shim .030 (NSS), (1) shim .005 (NSS), (1) shim .010 (NSS)

1шт.

9

537272R1

SPACER

drive link, used w/928751C95 pump

1шт.

9

537277R1

SPACER

drive link, used w/120229C93 pump

1шт.

10

928752C1

RING

retaining

1шт.

11

70115C1

COVER

ASSY, upper

1шт.

27586R1

12 PT SCREW,Flg, 5/16"-18 x 3/4"

SCREW, 5/16 x .750 PHC ast 12 PT flg

4шт.

12

379785R1

THRUST WASHER

WASHER, thrust

1шт.

13

535091R1

RING

seal

1шт.

14

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

15

382587R1

SEAL

SHIELD, pump shaft, not included in pump assy

1шт.

16

535093R1

SPACER

1шт.

17

537273R1

ROTOR

SET, used w/928751C95 pump

1шт.

17

537282R1

ROTOR

SET, used w/120229C93 pump

1шт.

18

535096R1

MANIFOLD

1шт.

19

535097R1

ROTOR

COMMUTATOR ASSY

1шт.

20

538069R1

DRIVE

LINK, drive

1шт.

21

537274R1

SEAL

rotor, used w/928751C95 pump

1шт.

21

537279R1

SEAL

SEAL, rotor, used w/120229C93 pump

1шт.

22

71361C1

RETAINER

seal, used w/928751C95 pump

1шт.

22

71360C1

RETAINER

seal, used w/120229C93 pump

1шт.

23

535100R1

THRUST WASHER

1шт.

24

535101R1

COVER

ASSY, end

1шт.

25

537276R1

BOLT,Spcl, Hex, 5/16" - 18 x 2.688", Gr 5

end cover, used w/928751C95 pump

7шт.

25

535102R1

BOLT,Spcl, Hex, 5/16" - 18 x 2.50", Gr 5

end cover, used w/120229C93 pump

7шт.

26

397901R91

PLUG AND ROLL ASSY

1шт.

27

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Boss Plug

1шт.

28

NSS

NOT SOLD SEPARAT

BODY ASSY, (not serviced separately) order pump assy

1шт.

29

536360R1

SPRING

ball pre-load

1шт.

30

F19646

LOCK NUT,13/16"-20, Thin

NUT, 13/16-20 hex., used w/120229C93 pump

1шт.

31

17008R1

BALL,1/4" Dia

Steel 1/4" Dia

1шт.

32

405785R91

PACKAGE, REPAIR

PACKAGE, vane and spring, used w/928751C95 pump

1шт.

32

405788R91

PACKAGE

vane & spring, used w/120229C93 pump

1шт.

33

17010R1

BALL,5/16" Dia

1шт.

34

NSS

NOT SOLD SEPARAT

SPOOL, body, (not serviced separately) order pump assy

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING ASSY, needle, (not serviced separately) order cover assy, 70115C1

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER, seal, (not serviced separately) order service package, 123456C1

1шт.

37

NSS

NOT SOLD SEPARAT

RING, shaft seal, (not serviced separately) order service package, 123465C1

1шт.

38

NSS

NOT SOLD SEPARAT

SEAL, felt dust, (not serviced separately) order service package, 123465C1

1шт.

39

928469C1

WAVE WASHER

wave

1шт.

40

71085C1

PLUG

1шт.

41

(Not used in this application)

1шт.

42

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube class 6

2шт.

123465C1

X

PACKAGE, hydrostatic power steering hand pump service, consists of (1) seal (NSS), (1) spacer, seal (NSS), (1) seal, dust (NSS)

1шт.
