Запчасти Case IH 886 (10-16) - HYDRAULICS, HYDRAULIC POWER STEERING CONNECTIONS (07) - HYDRAULICS

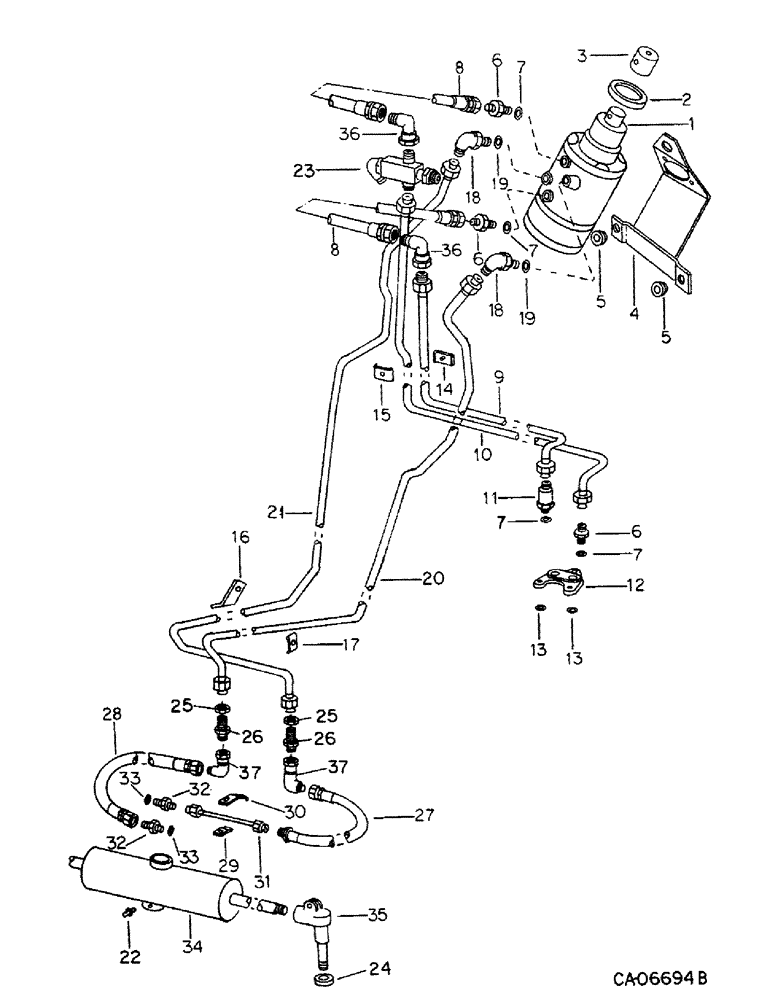

Схема запчастей Case IH 886 - (10-16) - HYDRAULICS, HYDRAULIC POWER STEERING CONNECTIONS (07) - HYDRAULICS
31
20
12
17
32
37
8
7
19
32
33
2
21
16
11
7
1
6
26
19
7
25
13
34
4
36
9
24
27
26
23
7
35
5
33
6
22
28
37
8
30
25
18
29
3
13
15
6
5
18
10
36
14

Артикул

Название

Примечание

Количество

1

928751C95

LOCK VALVE

PUMP ASSY, power steering hand, 886, Serial Range: -16999

1шт.

1

928751C95

LOCK VALVE

PUMP ASSY, power steering hand, 986, Serial Range: -23999

1шт.

1

928751C95

LOCK VALVE

PUMP ASSY, power steering hand, 1086, Serial Range: -47999

1шт.

1

928751C95

LOCK VALVE

PUMP ASSY, power steering hand, 1486, Serial Range: -25999

1шт.

1

1263446C91

PUMP

ASSY, power steering, replaces 120229C93 and 224675C91, 786 tractors, refer to power steering hand pump this group for l

1шт.

1

1263446C91R

REMAN-STEERING VALVE

786 INTERNATIONAL DIESEL TRACTOR, ASSY, power steering (1/74-12/80)

1шт.

1

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

1

1263446C91

PUMP

ASSY, power steering, replaces 120229C93 and 224675C91, 886, refer to power steering hand pump this group for l, Start Serial: 17000

1шт.

1

1263446C91R

REMAN-STEERING VALVE

886 INTERNATIONAL DIESEL TRACTOR, ASSY, power steering, Start Serial: 17000 (1/74-12/80)

1шт.

1

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

1

1263446C91

PUMP

ASSY, power steering, replaces 120229C93 and 224675C91, 986, refer to power steering hand pump this group for l, Start Serial: 24000

1шт.

1

1263446C91R

REMAN-STEERING VALVE

986 INTERNATIONAL DIESEL TRACTOR, ASSY, power steering, Start Serial: 24000 (1/74-12/79)

1шт.

1

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

1

1263446C91

PUMP

ASSY, power steering, replaces 120229C93 and 224675C91, 1086, refer to power steering hand pump this group for l, Start Serial: 48000

1шт.

1

1263446C91R

REMAN-STEERING VALVE

1086 INTERNATIONAL DIESEL TRACTOR, ASSY, power steering, Start Serial: 48000 (1/74-12/79)

1шт.

1

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

1

1263446C91

PUMP

ASSY, power steering, replaces 120229C93 and 224675C91, 1486, refer to power steering hand pump this group for l, Start Serial: 26000

1шт.

1

1263446C91R

REMAN-STEERING VALVE

1486 INTERNATIONAL DIESEL TRACTOR, ASSY, power steering, Start Serial: 26000 (1/74-12/79)

1шт.

1

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

2

104007C1

SEAL

hand pump shaft dust

1шт.

3

104008C1

RUBBER INSULATOR

INSULATOR, pump shaft vibration

1шт.

4

104853C1

BRACKET

ASSY, hand pump mrg

1шт.

179814

SPACER

4шт.

5

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

hand pump bracket isomount

3шт.

536642R1

WASHER

13/32 x 1 x .060

3шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

6

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube short reducer

3шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

8

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

power steering pressure & return, replaces 104792C1 by also ordering 2 elbow 9410281 and 1 clip 144138C1

1шт.

9

120052C2

HYD TUBE

TUBE ASSY, power steering pressure

1шт.

10

120051C1

HYD TUBE

TUBE ASSY, steering return lower

1шт.

11

71830C

CONNECTOR, 3/4-16 37 deg hyd flared tube long reducer

1шт.

12

537840R1

BLOCK

power steering manifold

1шт.

NLS

NO LONGER SERVICED

3шт.

13

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

2шт.

14

384855R11

CLAMP

ASSY, steering tubes

1шт.

15

384855R1

CLAMP

steering tubes

1шт.

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

537844R1

BRACKET

ASSY, power steering tube support front channel

1шт.

17

535307R1

CLAMP

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

18

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube 90 deg

2шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

20

120445C1

HYD TUBE

TUBE ASSY, right turn strg, 886 tractor w/d-360 engine

1шт.

20

130057C1

HYD TUBE

TUBE ASSY, right turn strg, 886 tractor w/d-358 engine, 786 tractors

1шт.

20

120443C2

PIPE FITTING

TUBE ASSY, right turn strg, 986, 1086 and 1486 tractors

1шт.

21

120446C1

HYD TUBE

TUBE ASSY, left turn strg, 886 tractor w/d-360 engine

1шт.

21

130058C1

HYD TUBE

TUBE ASSY, left turn strg, 886 tractor w/d-358 engine, 786 tractors

1шт.

21

120444C2

TUBE

ASSY, left turn strg, 986, 1086 and 1486 tractors

1шт.

22

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

2шт.

23

108863C91

VALVE

ASSY, brake check, refer to brake check valve this group for list of components

1шт.

24

71822C1

SEAL

dust

1шт.

25

124939

NUT,Jam, 9/16"-18, G5

9/16-18 bulkhead union lock

2шт.

26

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 3/8 C-Z hyd fld tube bulkhead

1шт.

27

70312C1

HOSE,9.53mm ID x 577.85mm L, SAE 100R7

ASSY, power steering, LH

1шт.

28

74871C1

HOSE,9.53mm ID x 22.75mm L, SAE 100R7

ASSY, power steering, RH, replaces 70313C2

1шт.

29

533578R2

CLAMP

tube

1шт.

30

533577R2

CLAMP

hose

1шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

5/16-NF x 1/2 pln type 5

1шт.

31

533579R2

TUBE

ASSY, cyl port to steering LH hose

1шт.

32

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

1шт.

33

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

34

63864C92

CYLINDER

ASSY, hyd power steering, refer to power steering cylinder this group for list of components

1шт.

35

71820C91

END

ball joint rod

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

1шт.

272322

WASHER

7/8-NF pln slt-thick type 5

1шт.

103399

PIN,5/32" x 1 3/4"

Split (Cotter), 5/32" x 1 3/4"

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

69981R1

LOCK NUT,3/8"-16, GB

NUT, 3/8 p/t lock type 5

1шт.

36

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2 C-Z hyd sld 90D swivel

1шт.

37

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90D swivel

2шт.

Выбрано товаров: 76
