Запчасти Case IH 886 (10-11) - HYDRAULICS, HYDRAULIC PUMP, 12 GPM, CESSNA FLUID POWER DIVIDER (07) - HYDRAULICS

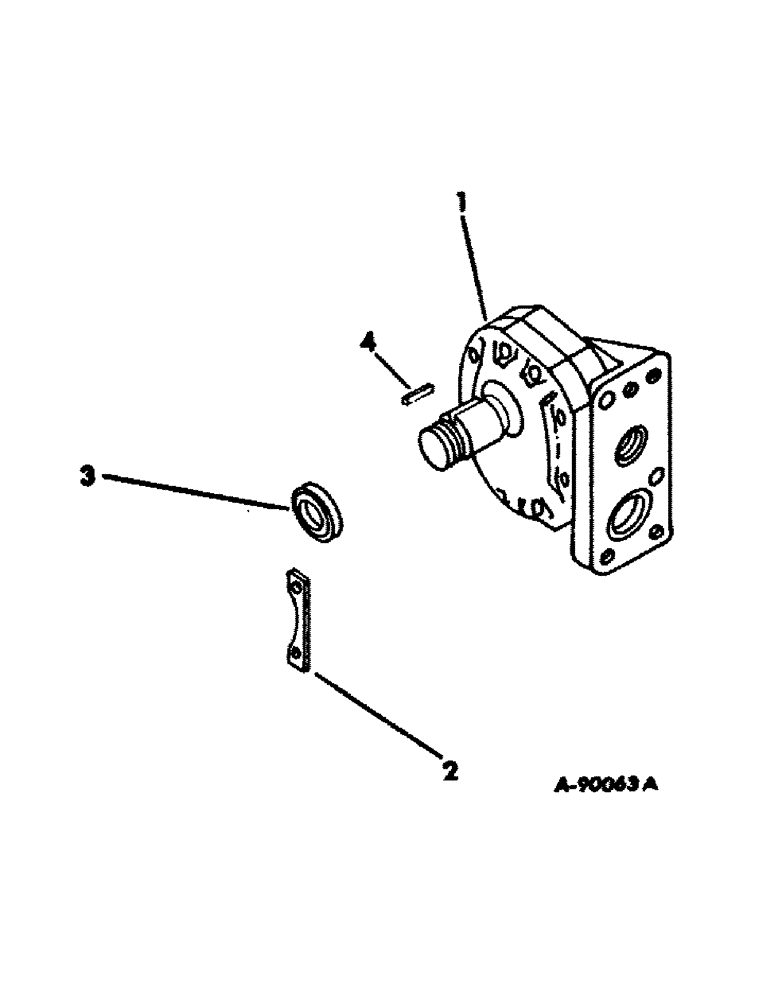

Схема запчастей Case IH 886 - (10-11) - HYDRAULICS, HYDRAULIC PUMP, 12 GPM, CESSNA FLUID POWER DIVIDER (07) - HYDRAULICS
4
3
2
1

Артикул

Название

Примечание

Количество

1

120114C92

PUMP, HYDRAULIC

PUMP ASSY, hydraulic, includes ref nos 2, 3 and 4

1шт.

1

1949302C1

REMAN-HYD PUMP

986, 1086, 1486, All (1/74-12/79), 786, 886, Both (1/74-12/80), All INTERNATIONAL DIESEL TRACTOR, PUMP ASSY

1шт.

1

1949303C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

120114C92GV

PUMP

PUMP ASSY, hydraulic, includes ref nos 2, 3 and 4

1шт.

1

1949302C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - for N.A. Only

1шт.

1

1949303C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - for N.A. Only

1шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

pump mounting bolt

4шт.

23761R1

SCREW,Hex, 5/16"-18 x 2 5/8", G5

5/16-18 x 2-5/8 hex-hd cap

4шт.

2

531530R1

LARGE PLATE

PLATE, washer

1шт.

528174R1

SCREW

5/16-18 special hex-hd cap

2шт.

3

383534R91

OIL SEAL

pump drive shaft

1шт.

4

383539R1

KEY

pump drive shaft

1шт.

63687C1

KIT

PACKAGE, hydraulic pump o-ring & gasket, consists of (1) diaphragm (NSS), (1) gasket (NSS), (1) gasket (NSS), (1) diaphragm (NSS), (1) plate (NSS), (1) seal (NSS), (1) instruction sheet (NSS)

1шт.

Выбрано товаров: 13
