Запчасти Case IH 886 (10-04) - HYDRAULICS, HYDRAULIC PUMP, TRW 12 GPM (07) - HYDRAULICS

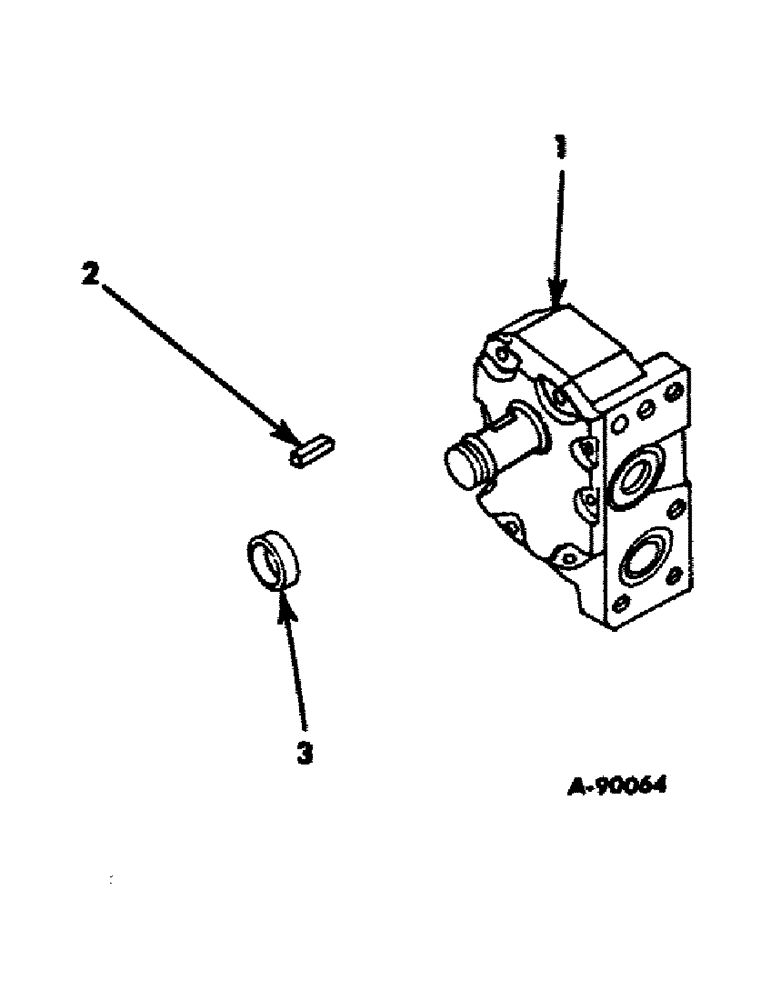

Схема запчастей Case IH 886 - (10-04) - HYDRAULICS, HYDRAULIC PUMP, TRW 12 GPM (07) - HYDRAULICS
3
1
2

Артикул

Название

Примечание

Количество

1

133441C92

PUMP

ASSY, hydraulic, includes ref. no. 2 and 3

1шт.

1

1949302C1

REMAN-HYD PUMP

Reman For New PN 133441C92

1шт.

1

1949303C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

383539R1

KEY

pump drive shaft

1шт.

3

373157R91

OIL SEAL

SEAL, pump drive shaft

1шт.

133442C1

KIT

hydraulic pump o-ring and gasket service, consists of (1) plate, pressure (NSS), (2) web, backing (NSS), (1) web, sealing (NSS), (1) seal, shaft (NSS), (1) instructions (NSS)

1шт.

Выбрано товаров: 6
