Запчасти Case IH 886 (08-17) - ELECTRICAL, TRACTOR CAB WIRING (06) - ELECTRICAL

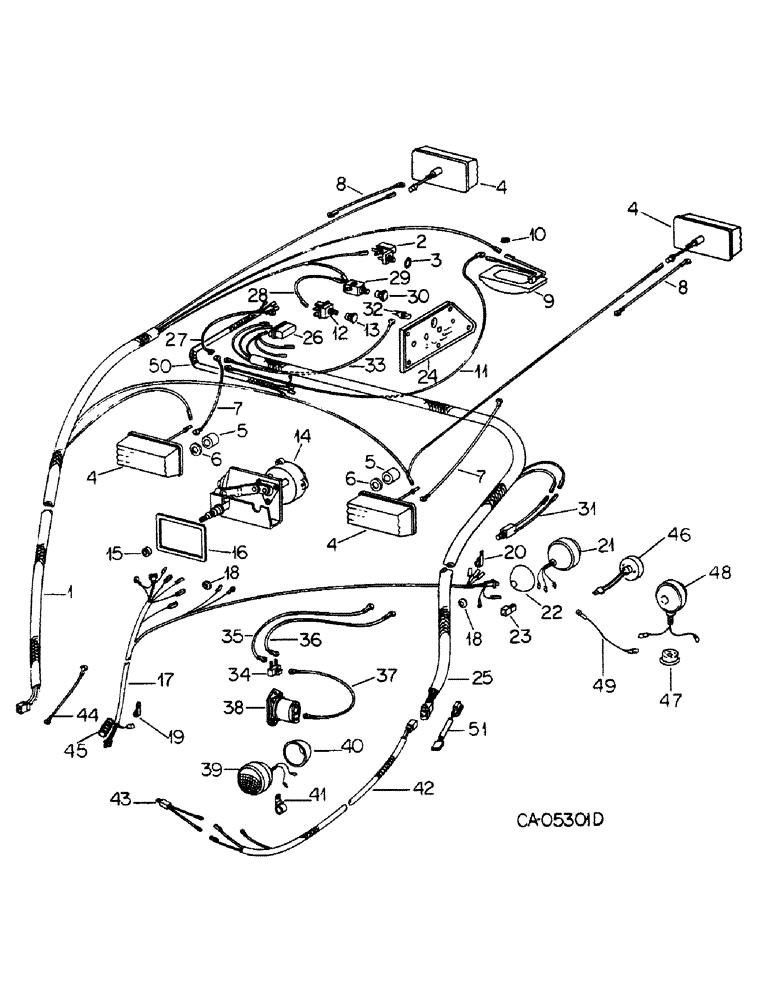

Схема запчастей Case IH 886 - (08-17) - ELECTRICAL, TRACTOR CAB WIRING (06) - ELECTRICAL
22
33
26
8
1
32
7
21
25
6
14
16
42
4
50
3
31
11
19
9
44
6
13
18
48
49
4
15
5
12
40
5
10
7
18
29
51
23
43
30
36
41
28
47
4
35
17
34
20
39
27
2
8
24
37
46
38
45
4

Артикул

Название

Примечание

Количество

1

111227C3

HARNESS

ASSY, main cab cable

1шт.

2

109222C1

SWITCH

windshield wiper w/circuit breaker

1шт.

109311H

JAM NUT

7/16-18 hex. face

1шт.

3

111282C1

KNOB

wiper control

1шт.

4

130882C91

LAMP

LAMP ASSY, combination flast-turn signal, only serviceable items are lamp, 9417866 and lens, 130883C1

4шт.

27619R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/2"

SCREW, #10-16 x 2-1/2 PHC p/hdcr tap

8шт.

5

117735C1

HOSE

GASKET, front lamp socket

2шт.

6

117763C1

GASKET, front lamp screw

1шт.

27619R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/2"

SCREW, 10-16 x 2-1/2 pan-hd cr-rec-tap

8шт.

7

111263C3

CABLE

ASSY, turn signal lights frt-grd

2шт.

8

111264C2

ELECTRIC CABLE

CABLE ASSY, turn signal lights rear ground

2шт.

45617C1

SCREW, #10-16 x 1/2 PHC c/r s/d tap

2шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 ext-int tooth lock

2шт.

9

111397C2

LAMP

LIGHT ASSY, dome, only serviceable items are lamp, 9417866 and lens, 117940C1

1шт.

Cabs w/serial no. 107806 & below

1шт.

9

1262111C91

LAMP

LIGHT ASSY, dome, only serviceable items are lens 117940C1, lamp 142456 and switch 1262109C1

1шт.

Cabs w/serial no. 107807 & above

1шт.

27749R1

SCREW

8-18 x 2-3/4 cr-rec-ov-hd tap

4шт.

10

363846R1

GROMMET

dome light

1шт.

11

111234C1

CABLE ASSY, dome light ground

1шт.

12

168822C2

SWITCH

pressurizer blower

1шт.

109311H

JAM NUT

7/16-28

1шт.

13

111282C1

KNOB

blower control

1шт.

14

MOTOR, windshield wiper, for components see list of parts under w/wpr motor in this group

1шт.

15

(Not used in this application)

1шт.

16

117732C2

GASKET

wiper opening

1шт.

17

111633C2

HARNESS

ASSY, fender lights, 886, Serial Range: -13587

1шт.

17

111633C2

HARNESS

ASSY, fender lights, 986, Serial Range: -17755

1шт.

17

111633C2

HARNESS

ASSY, fender lights, 1086, Serial Range: -30874

1шт.

17

111633C2

HARNESS

ASSY, fender lights, 1486, Serial Range: -17122

1шт.

17

118392C2

HARNESS

ASSY, fender lights, 886, Start Serial: 13588

1шт.

17

118392C2

HARNESS

ASSY, fender lights, 986, Start Serial: 17756

1шт.

17

118392C2

HARNESS

ASSY, fender lights, 1086, Start Serial: 30895

1шт.

17

118392C2

HARNESS

ASSY, fender lights, 1486, Start Serial: 17123

1шт.

17

245000C1

HARNESS

ASSY

1шт.

Cabs w/serial no. 107807 & above

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int tooth lock

2шт.

169850C1

CLIP

harness, plastic, conduit, convoluted wire, furnish 26 in. from bulk roll marked 464835C1

2шт.

18

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

rubber

2шт.

19

299410C1

CLAMP,5/8", Insul, 1/4" Bolt

harness

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1/4-20 x 1/2 hex-hd tap

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

20

370383R1

CLIP

rear lamp harness

2шт.

21

107351C91

HEADLIGHT

LAMP ASSY, flood and tail, 886, consists of, Serial Range: -13587

2шт.

21

107351C91

HEADLIGHT

LAMP ASSY, flood and tail, 986, consists of, Serial Range: -17755

2шт.

21

107351C91

HEADLIGHT

LAMP ASSY, flood and tail, 1086, consists of, Serial Range: -30874

2шт.

21

107351C91

HEADLIGHT

LAMP ASSY, flood and tail, 1486, consists of, Serial Range: -17122

2шт.

371461R92

LAMP

LIGHT, sealed beam

1шт.

676078R1

RETAINER

shock proof light

1шт.

455490

BULB,C-6, #1003, 12V, .94W

LAMP, #1003 12 volt

1шт.

21

388945R91

HEADLIGHT

LAMP ASSY, rear flood, 886, service parts are, Start Serial: 13588

2шт.

21

388945R91

HEADLIGHT

LAMP ASSY, rear flood, 986, service parts are, Start Serial: 17756

2шт.

21

388945R91

HEADLIGHT

LAMP ASSY, rear flood, 1086, service parts are, Start Serial: 30895

2шт.

21

388945R91

HEADLIGHT

LAMP ASSY, rear flood, 1486, service parts are, Start Serial: 17123

2шт.

373662R91

LAMP

type C-6 trade #4411 or

1шт.

131508C1

LAMP BASE

LAMP, replacement #H7610

1шт.

676078R1

RETAINER

rubber

1шт.

22

388947R1

RETAINER

lamp

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

2шт.

23

266515C1

CONNECTOR, ELEC

CONNECTOR, 3-way, 886, Serial Range: -13587

2шт.

23

266515C1

CONNECTOR, ELEC

CONNECTOR, 3-way, 986, Serial Range: -17755

2шт.

23

266515C1

CONNECTOR, ELEC

CONNECTOR, 3-way, 1086, Serial Range: -30894

2шт.

23

266515C1

CONNECTOR, ELEC

CONNECTOR, 3-way, 1486, Serial Range: -17122

2шт.

24

111479C1

PANEL

control trim, cab w/pressurizer heater

1шт.

24

111400C1

PANEL

control trim, cab w/air conditioner and heater

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, 8-18 x 1-3/4 PHC cr-rec-ov-hd tap

5шт.

25

111325C2

HARNESS

air conditioner

1шт.

Cabs w/serial no. 107806 & below

1шт.

25

1262093C1

HARNESS

air conditioner

1шт.

Cabs w/serial no. 107807 & above

1шт.

169850C1

CLIP

harness

1шт.

26

437882C1

RELAY

a/c lockout

1шт.

27

111263C3

CABLE

ASSY, ground lock out relay, tractor cab w/air conditioner

1шт.

27904R1

SCREW,Cross Pan Hd, #10 x 1/2"

#10-16 x 1/2 crb c/r s/d tap

1шт.

28

111229C1

CABLE

ASSY, blower thermostat switch, tractor cab w/air conditioner

1шт.

29

109268C2

SWITCH

thermostat, tractor cab w/air conditioner

1шт.

109311H

JAM NUT

7/16-28 hex. face

2шт.

30

111282C1

KNOB

cooling control, tractor w/cab air conditioner

1шт.

31

111267C3

SWITCH

low pressure, tractor w/cab air conditioner

1шт.

32

109369C91

LIGHT ASSY.

LAMP ASSY, A/C indicator, tractor cab w/air conditioner, only serviceable items are lamp, 200557H1, and lens,71652C1

1шт.

33

111263C3

CABLE

ASSY, ground indicator light, tractor cab w/air conditioner

1шт.

27904R1

SCREW,Cross Pan Hd, #10 x 1/2"

#10-16 x 1/2 crb c/r s/d tap

1шт.

34

403069R1

CIRCUIT-BREAKER,30A

BREAKER, circuit, 30 AMP

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

2шт.

35

111323C1

CABLE

ASSY, chassis relay to key switch

1шт.

36

117620C1

CABLE

ASSY, cab power

1шт.

37

111322C1

CABLE

ASSY, chassis cab power

1шт.

38

107655C1

SOLENOID SWITCH

MAGNETIC SWITCH, cap-imp. elec. load

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

39

107352C91

LAMP BASE

LAMP ASSY, front flood, consists of

2шт.

refer #39 (107352C91) - Shell Not Serviced Separately (NSS)

1шт.

390756R91

LAMP

LIGHT, sealed beam unit

1шт.

676078R1

RETAINER

shock proof light

1шт.

40

388947R1

RETAINER

lamp

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

41

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, air conditioner harness, tractor cab w/air conditioner

2шт.

42

117623C2

HARNESS

ASSY, air conditioner chassis, tractor cab w/air conditioner, 986, 1086 & 1486 tractors, 886 tractors w/d-360 engine

1шт.

42

130061C2

HARNESS

ASSY, air conditioner chassis, tractor cab w/air conditioner, 886 tractor w/d-358 engine

1шт.

111619C1

STRAP

adjustable tie

3шт.

43

111266C1

SWITCH, A/C HIGH PRE

SWITCH, high pressure, tractor cab w/air conditioner

1шт.

44

537055R1

CABLE

ASSY, tractor to cab ground

1шт.

178556

WASHER,Ext-Int Tooth, 7/16"

3/8 tooth lock

1шт.

45

118156C1

CONDUIT

convoluted insulation, fender light harness

1шт.

46

131183C91

STOP LIGHT

LAMP ASSY, tail, 886, Start Serial: 13588

2шт.

46

131183C91

STOP LIGHT

LAMP ASSY, tail, 986, Start Serial: 17756

2шт.

46

131183C91

STOP LIGHT

LAMP ASSY, tail, 1086, Start Serial: 30895

2шт.

46

131183C91

STOP LIGHT

LAMP ASSY, tail, 1486, Start Serial: 17123

2шт.

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 p/hdcr tap

4шт.

47

1267358C2

SEAT

rear flood light mtg ball, replaces 370307R1, tractors w/deluxe cab

2шт.

120371

NUT,1/2"-20, G5

2шт.

1255773C1

GASKET

lamp seat

2шт.

48

131368C92

HEADLIGHT

LIGHT ASSY, aux rear flood, tractors w/deluxe cab, consists of

2шт.

131203C1

LAMP

ASSY, rear flood

1шт.

676078R1

RETAINER

for J.W. Hobbs light assy

1шт.

1252609C1

RETAINER

for Midwest light assy

1шт.

49

405209R1

CABLE

ASSY, aux light ground, tractors w/deluxe cab

1шт.

50

142988C1

HARNESS

ASSY, blower, used w/blower motor, 142990C1

1шт.

Cabs w/serial no. 107806 & below

1шт.

50

1255875C1

HARNESS

ASSY, blower motor

1шт.

Cabs w/serial no. 107807 & above

1шт.

25471R1

FUSE,20 Amp, Type 8AG

8AG 20 amperes

1шт.

51

245001C1

HARNESS

a/c adapter

1шт.

Cabs w/serial no. 107807 & above

1шт.

1255747C1

CLAMP

CLIP, harness

1шт.

111619C1

STRAP

adjustable tie

10шт.

77600C91

SPARE PART

PARTS ACCESSORY, rear fender mounted aux lighting, consists of

1шт.

131436C1

CABLE PULLING GRIP

CABLE ASSY

1шт.

9426333

FUSE,15 Amp, Type 3AG

3AG 15 amperes

1шт.

131319C1

SWITCH

ASSY, rocker

1шт.

1276080C1

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW, no. 6 x 3/8 polyseal p/hdcr mach

2шт.

131368C92

HEADLIGHT

LIGHT ASSY

2шт.

1267358C2

SEAT

2шт.

120371

NUT,1/2"-20, G5

2шт.

1103184

ALTERNATOR

-GENERATOR

1шт.

362667R1

CLIP

cable

3шт.

405209R1

CABLE

ASSY

2шт.

118171C1

PACKAGE

KIT, fastener 2.0 tgl type

1шт.
