Запчасти Case IH 886 (08-04) - ELECTRICAL, ALTERNATOR-GENERATOR, DELCO REMY, WITH INTEGRAL SOLID STATE VOLTAGE REGULATOR (06) - ELECTRICAL

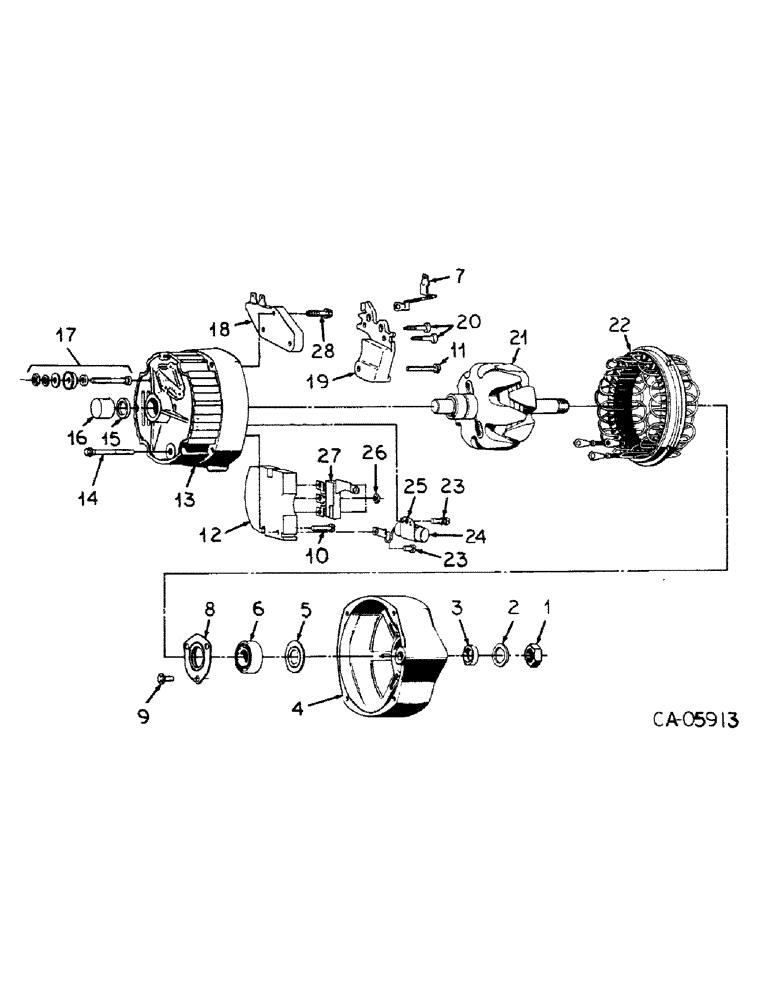

Схема запчастей Case IH 886 - (08-04) - ELECTRICAL, ALTERNATOR-GENERATOR, DELCO REMY, WITH INTEGRAL SOLID STATE VOLTAGE REGULATOR (06) - ELECTRICAL
6
19
13
14
11
9
4
18
15
21
12
23
20
26
3
1
10
8
28
23
25
22
27
5
2
7
24
17
16

Артикул

Название

Примечание

Количество

1103171

GENERATOR

ALTERNATOR GENERATOR, 42 ampere, replaces 1102920

1шт.

1103183

ALTERNATOR

ALTERNATOR GENERATOR, 61 ampere, replaces 1102921

1шт.

1103184

ALTERNATOR

ALTERNATOR GENERATOR, 72 ampere, replaces 1102922 & 1103160

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 72 Ampere

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 61 Ampere

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt, 63 Ampere

1шт.

103799A1C

CORE-ALTERNATOR

Return Number, Alternator, 12 Volt, 63 Ampere

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt, 63 Ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Number, Alternator, 12 Volt, 63 Ampere

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere, 886

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 100 Amp Alternator

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere, 986

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 100 Amp Alternator

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere, 1086

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 100 Amp Alternator

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere, 1486

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 100 Amp Alternator

1шт.

1

1915172

NUT

NUT, drive shaft end

1шт.

2

1941978

WASHER

WASHER, drive end shaft lock

1шт.

3

1976138

BUSHING

COLLAR, drive end shaft, outside, replaces 1959991, use w/frame 1976137 & 1976808

1шт.

3

1959991

COLLAR

COLLAR, drive end shaft, outside, used w/frame 1970525

1шт.

4

1976808

FRAME

PACKAGE, drive end frame, replaces 1970525 & 1976137, consists of frame (NSS), bolt (NSS), sleeve (NSS), instructions (NSS)

1шт.

5

800832

WASHER

WASHER, drive end grease slinger

1шт.

6

1974861

BALL BEARING

BEARING, drive end ball

1шт.

7

1894568

ELEC CONNECTOR

TERMINAL, relay

1шт.

8

1971993

PLATE

PLATE, drive end ball bearing retainer

1шт.

9

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW, bearing retainer plate

3шт.

10

1876668

SCREW

SCREW, rectifier support

1шт.

11

1974020

SCREW

SCREW, brush holder pivot

1шт.

12

1891055

SUPPORT

SUPPORT, rectifier

1шт.

13

1975718

FRAME

PACKAGE, slip ring end frame, replaces 1894570, consists of frame (NSS), bolt (NSS), bearings (NSS), instructions (NSS)

1шт.

14

1956975

BOLT

SCREW, frame attaching

4шт.

15

SEAL, slip ring end roller bearing, part of 1974862

1шт.

16

1974862

BUSHING

BEARING, slip ring end roller, replaces 9436831

1шт.

17

1975471

PACKAGE

PACKAGE, battery output terminal, replaces 1846900

1шт.

18

1116392

REGULATOR

REGULATOR, voltage, replaces 1116387, used w/alternators 1102920, 1102921 and 1102922

1шт.

18

1116387H

VOLTAGE REGULATOR

REGULATOR, voltage, used w/alternators 1103160, 1103171, 1103183 & 1103184

1шт.

19

1894559

HOLDER

HOLDER ASSY, brush and brush

1шт.

20

1876681

SCREW

SCREW ASSY, brush holder insulated

2шт.

21

1876163

ROTOR

ROTOR ASSY

1шт.

22

1894594

STATOR

STATOR ASSY, 42 ampere

1шт.

22

1894562

STATOR

STATOR ASSY, 61 ampere

1шт.

22

1851572

STATOR

STATOR ASSY, 72 ampere

1шт.

23

1851612

SCREW

SCREW W/LOCK WASHER, capacitor bracket and lead attaching

2шт.

24

1971411

CAPACITOR

CAPACITOR ASSY

1шт.

25

1869573

BRACKET

BRACKET, capacitor mounting

1шт.

26

453996

NUT,#8-32

NUT, no. 8NF x 1 cad mach screw type 1

3шт.

27

1971528

RECTIFIER

RECTIFIER, diode trio

1шт.

28

1894586

SCREW

SCREW ASSY, brush holder ground

1шт.

Выбрано товаров: 62
