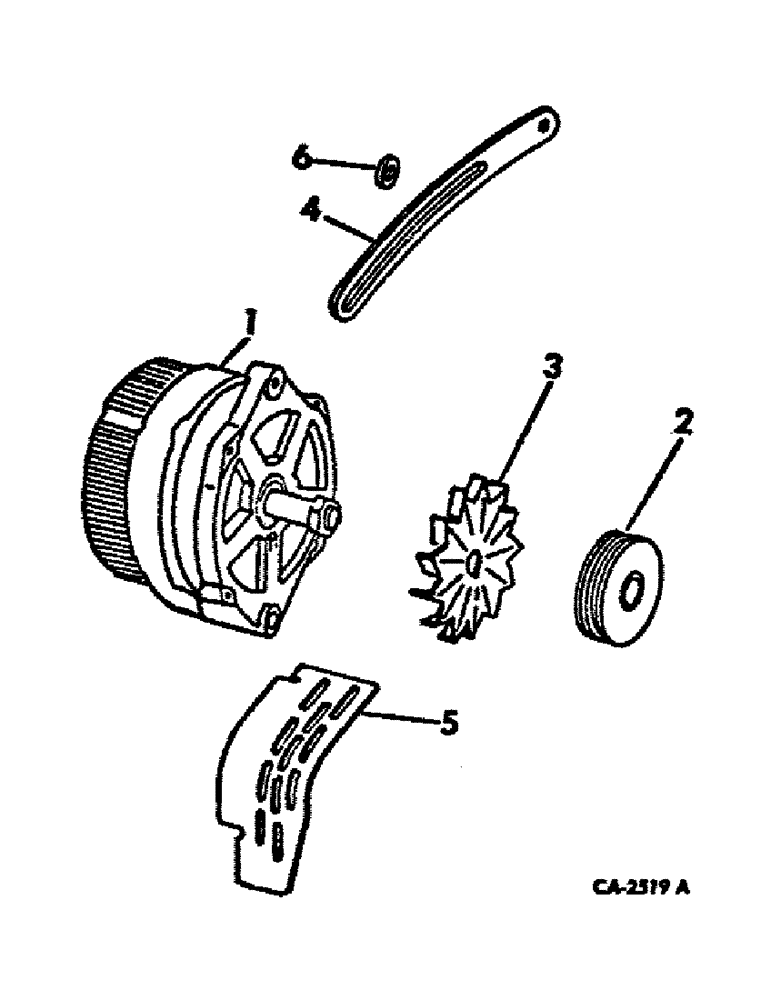

Запчасти Case IH 886 (08-02) - ELECTRICAL, ALTERNATOR-GENERATOR MOUNTING (06) - ELECTRICAL

1

1100583

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere, furnish 1103171, 886, Serial Range: -10822

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1100583

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere, furnish 1103171, 986, Serial Range: -12851

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1100583

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere, furnish 1103171, 1086, Serial Range: -18853

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1100583

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere, furnish 1103171, 1486, Serial Range: -11385

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1100579

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere, furnish 1103171, 886, Serial Range: -10822

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1100579

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere, furnish 1103171, 986, Serial Range: -12851

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1100579

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere, furnish 1103171, 1086, Serial Range: -18853

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1100579

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere, furnish 1103171, 1486, Serial Range: -11385

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1102920

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere, furnish 1103171, 786

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1102920

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere, furnish 1103171, 886, Start Serial: 10823

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1102920

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere, furnish 1103171, 986, Start Serial: 12852

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1102920

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere, furnish 1103171, 1086, Start Serial: 18854

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1102920

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere, furnish 1103171, 1486, Start Serial: 11386

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1100585

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, furnish 1103183, for tractors w/air conditioned cab attachment, 886, Serial Range: -10822

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1100585

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, furnish 1103183, for tractors w/air conditioned cab attachment, 986, Serial Range: -12851

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1100585

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, furnish 1103183, for tractors w/air conditioned cab attachment, 1086, Serial Range: -18853

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1100585

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, furnish 1103183, for tractors w/air conditioned cab attachment, 1486, Serial Range: -11385

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 72 Ampere

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

1100581

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, furnish 1103183, for tractors w/air conditioned cab attachment, 886, Serial Range: -10822

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1100581

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, furnish 1103183, for tractors w/air conditioned cab attachment, 986, Serial Range: -12851

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1100581

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, furnish 1103183, for tractors w/air conditioned cab attachment, 1086, Serial Range: -18853

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1100581

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, furnish 1103183, for tractors w/air conditioned cab attachment, 1486, Serial Range: -11385

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1102921

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, furnish 1103183, for tractors w/air conditioned cab attachment, 786

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1102921

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, furnish 1103183, for tractors w/air conditioned cab attachment, 886, Start Serial: 10823

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1102921

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, furnish 1103183, for tractors w/air conditioned cab attachment, 986, Start Serial: 12852

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1102921

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, furnish 1103183, for tractors w/air conditioned cab attachment, 1086, Start Serial: 18854

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1102921

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, furnish 1103183, for tractors w/air conditioned cab attachment, 1486, Start Serial: 11386

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1103160

ALTERNATOR

ALTERNATOR-GENERATOR, 72 ampere, furnish 1103184, for tractors equipped w/deluxe cab, replaces 1102922

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex. mach screw

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

1

1103171

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere, metric mounting

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

1103183

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, metric mounting

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alternator

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 Amp Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman for New PN 1103183

1шт.

1

103802A1C

CORE-ALTERNATOR

Return number

1шт.

1

1103184

ALTERNATOR

ALTERNATOR-GENERATOR, 72 ampere, metric mounting

1шт.

For components see list of parts under details of alternator generator, this group

1шт.

1

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere, 886

1шт.

1

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

1

104024A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 100 Amp Alternator

1шт.

1

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere, 986, Start Serial: 2400

1шт.

1

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

1

104024A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 100 Amp Alternator

1шт.

1

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere, 1086, Start Serial: 48005

1шт.

1

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

1

104024A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 100 Amp Alternator

1шт.

1

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere, 1486, Start Serial: 26000

1шт.

1

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

1

104024A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 100 Amp Alternator

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

BOLT, M10 x 90 pln class 8.8

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 PHC p/t class 10

1шт.

30281R1

NUT,M6, Cl 10

NUT, M6 class 10

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

25709R1

WASHER

WASHER, .406 x .812 x .089 hdn, 886D only

2шт.

2

384645R1

PULLEY

PULLEY, alternator-generator

1шт.

For all tractors except 886 tractors w/d-358 engines

1шт.

2

537070R1

PULLEY

PULLEY, alternator double groove, tractors w/air condition cab attachment

1шт.

For all tractors except 886 tractors w/d-358 engines

1шт.

2

1946716

PULLEY

PULLEY, alternator generator, 786 tractor, 886 w/d-358 engine

1шт.

2

671807C1

PULLEY

PULLEY, fan and water pump, tractors w/rops and non-rops frame

1шт.

2

131042C1

PULLEY

PULLEY, alternator-generator, for Niefhoff 100 ampere alternator- generator

1шт.

3

221425R1

FAN

FAN, alternator-generator

1шт.

4

532418R1

BRACE

BRACE, alternator-generator

1шт.

For all tractors except 886 tractors w/d-358 engines

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

131030C1

BOLT,M8 x 40mm

BOLT, M8 x 40 special

1шт.

5

121525C1

PROTECTOR

SHIELD, alternator fan

1шт.

6

557265R1

WASHER

WASHER, .344 x 1.0 x .105

1шт.

537326R1

BOLT

SCREW, 5/16-18 x 1-1/2 znd hex-hd

1шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 cad destored thd lock

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

BOLT, M10 x 90 pln class 8.8

1шт.

30382R1

NUT,M8 x 1.25, Cl 10

LOCK NUT, M8 phc p/t class 10

1шт.

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, M8 x 30 pln class 8.8

1шт.

30327R1

WASHER,M10 x 21.5 x 2.5, HT

WASHER, 10MM type B hdn

1шт.
