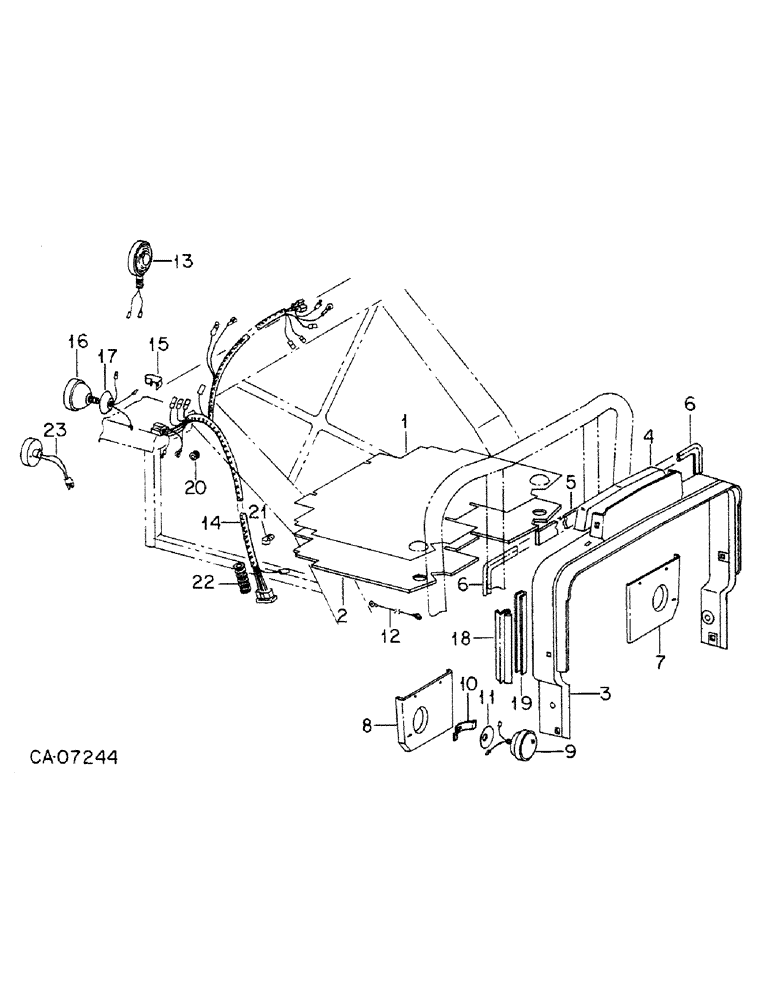

Запчасти Case IH 786 (13-17) - SUPERSTRUCTURE, NON-ROPS FRAME CONNECTIONS, 786 TRACTORS (05) - SUPERSTRUCTURE

1

111622C3

MAT

floor

1шт.

2

111435C3

MAT

LINER, floor mat

2шт.

3

104734C1

SUPPORT ASSY.

SUPPORT ASSY, frt hood

1шт.

4

104737C1

SEAL

front hood channel

1шт.

5

104738C1

SEAL

front hood rear

2шт.

6

103998C2

SEAL

upper instrument housing

2шт.

7

111616C1

SHROUD

LH

1шт.

8

111617C1

SHROUD

RH

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW, 1/4-20 x 3/4 flange lock hex-hd

6шт.

9

107352C91

LAMP BASE

LAMP ASSY, front flood, consists of

2шт.

390756R91

LAMP

LIGHT, sealed beam unit

1шт.

676078R1

RETAINER

shock proof light

1шт.

10

117723C1

STRAP

lamp retainer

2шт.

11

388947R1

RETAINER

lamp

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

12

537055R1

CABLE

ASSY, tractor to cab ground

1шт.

178556

WASHER,Ext-Int Tooth, 7/16"

3/8 ext-int tooth lock

1шт.

13

67538C92

HEADLIGHT

LIGHT ASSY, flashing warning, only serviceable item is lamp 9417866

2шт.

120371

NUT,1/2"-20, G5

2шт.

14

118392C2

HARNESS

ASSY, fender lights

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int tooth lock

2шт.

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

7/8 x 1-9/16 x 3/4 d/c rub

2шт.

15

370383R1

CLIP

rear lamp harness

2шт.

16

388945R91

HEADLIGHT

LAMP ASSY, flood & tail

2шт.

17

388947R1

RETAINER

lamp

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

2шт.

18

104754C1

CHANNEL

firewall seal

2шт.

19

104752C1

SEAL

, Serial Range: rops-firewall

2шт.

20

376254R1

GROMMET

rubber

2шт.

21

299410C1

CLAMP,5/8", Insul, 1/4" Bolt

cable harness

1шт.

172427

SHIELD

1/4 x 1/2 h/hd tap

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

22

118156C1

CONDUIT

convoluted insulation

1шт.

23

131183C91

STOP LIGHT

LAMP ASSY, tail

2шт.

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW no. 10-16 x 3/4 p/hdcr tap

4шт.
