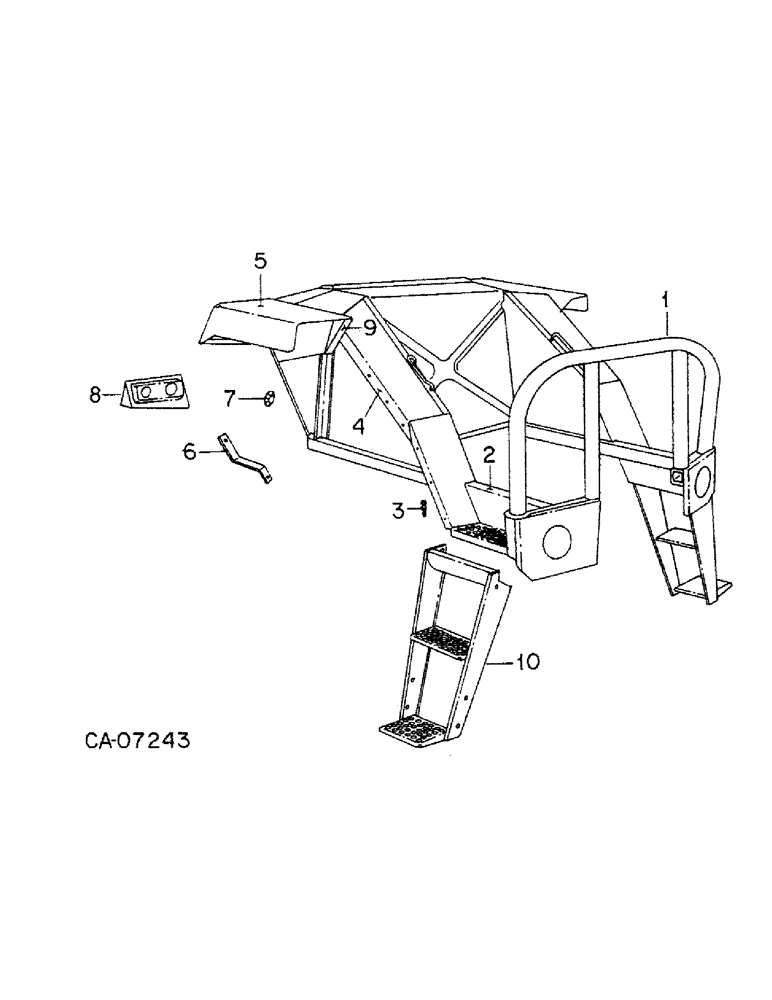

Запчасти Case IH 786 (13-16) - SUPERSTRUCTURE, NON-ROPS FRAME, 786 TRACTORS (05) - SUPERSTRUCTURE

1

1255704C91

FRAME W/PRODUCT GRAPHICS, non-rops

1шт.

353-417

PLUG,Dome, 2.000" hole, Nylon

2.0 in. button

1шт.

118148C2

SELF-TAP SCREW,Hex, #10 x 3/8"

BOLT, 1/4-20 x 1-1/2 hex-hd mach pan-hd type T

6шт.

115109

WASHER,1/4"

1/4"

6шт.

117675C1

PLUG

Button 1/2 inch

6шт.

2

109441C1

PANEL

inner step LH

1шт.

2

109442C1

PANEL

inner step RH

1шт.

24374R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #8 x 3/8"

8шт.

3

111240C1

FASTENER

1/4 turn

4шт.

4

111595C1

PANEL

wheel well, LH, filler

1шт.

4

111596C1

PANEL, wheel well, RH, filler

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4 x 3/4 crg type 5

6шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

6шт.

5

109491C3

FENDER ASSY.

FENDER ASSY, LH

1шт.

5

109492C3

FENDER ASSY.

FENDER ASSY, RH

1шт.

118103C1

SEALING STRIP

SEAL, fender

2шт.

111461C1

TUBE, fender

2шт.

118003C1

SEAL, fender to wheel well

2шт.

6

118072C1

SUPPORT, fender, LH, brace

1шт.

6

118073C1

SUPPORT, fender, RH, brace

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x x.051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

7

117762C1

CLAMP

CLIP, fender tube

4шт.

8

111562C2

PANEL

rear lamp LH

1шт.

8

111563C2

PANEL

rear lamp RH

1шт.

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW, no. 10-16 x 1/2 polyseal

4шт.

143310C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 24 x 1/2"

SCREW, no. 10-24 x 1/2 polyseal

4шт.

9

111533C1

SUPPORT

fender LH, filler

1шт.

9

111534C1

SUPPORT

fender RH, filler

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 flange lock

18шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 flange lock

4шт.

143088C1

PLUG

1/2 button

3шт.

10

109432C2

LADDER

ASSY, LH long

1шт.

10

109433C2

LADDER

ASSY, RH long

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

7шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

614452R1

WASHER

.406 x 1.250 x .090

4шт.

21741R1

WASHER

.406 x .875 x .105

8шт.

224840C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

64520C1

PRODUCT GRAPHIC

safety caution

1шт.
