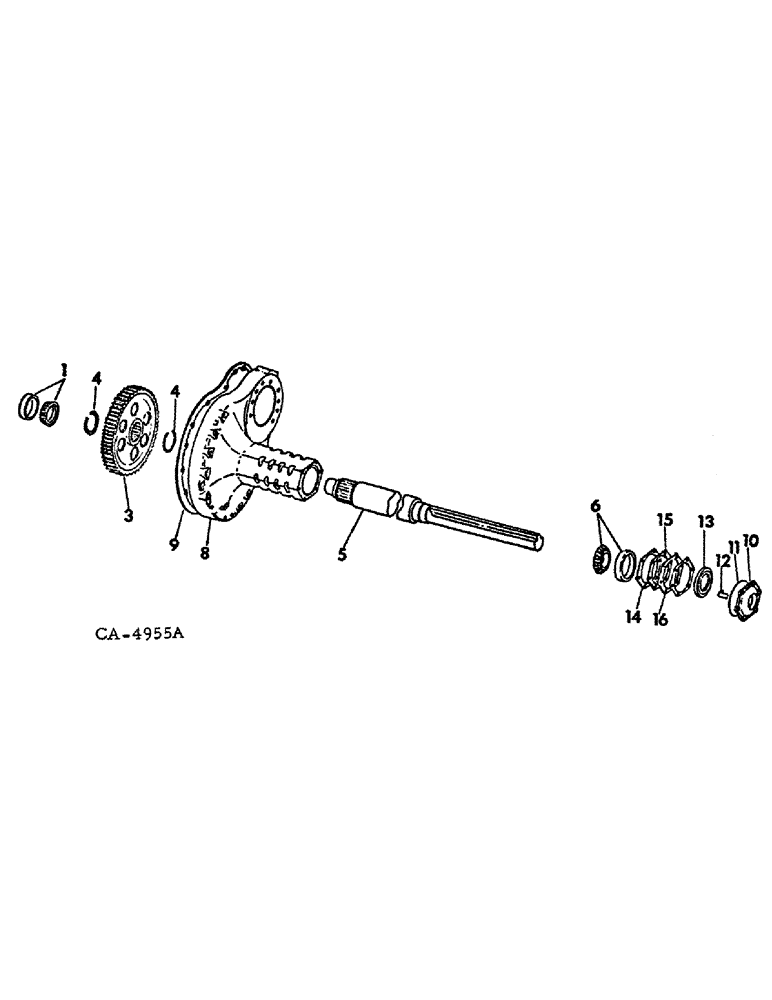

Запчасти Case IH 786 (07-19) - DRIVE TRAIN, REAR DRIVE AXLE (04) - Drive Train

1

ST2111

BEARING ASSY,66.68mm ID x 122.24mm OD x 38.1mm W

rear axle inner, 786, 886 and 986 tractors

2шт.

1

ST2171

BEARING ASSY,65mm ID x 105mm OD x 24mm W

rear axle inner, 1086 and 1486 tractors

2шт.

2

(Not used)

1шт.

3

380219R1

GEAR

bull, 73T, 786 and 886 tractors

2шт.

3

384075R1

GEAR

bull, 73T, 986 and all hi-clear tractors

2шт.

3

528712R1

GEAR

bull, 73 T, 1086 and 1486 tractors

2шт.

4

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer snap, 786, 886, 986 and 1086 hi-clear tractors

2шт.

4

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer snap, 1086 and 1486 tractors

4шт.

5

535664R2

AXLE

rear, 100 in., 786, 886 and 986 tractors

2шт.

5

535662R1

AXLE

rear, 118 in., 886 and 986 tractors

2шт.

5

529787R2

CENTER AXLE

AXLE, rear, 100 in., 1086 and 1486 tractors

2шт.

5

529786R1

AXLE

rear, 118 in., 1086 and 1486 tractors

2шт.

6

ST2041

TAPERED BEARING,3.376" ID x 5.376" OD x 1.2015"

BEARING ASSY, rear axle outer, 786, 886 and 986 tractors

2шт.

6

ST2185

TAPERED BEARING,92.075mm ID x 150mm OD x 35.966mm

BEARING ASSY, rear axle outer, 1086 and 1486 tractors

2шт.

7

(Not used)

1шт.

8

143528C1

CARRIER

rear axle, replaces 380224R6

2шт.

271568

PIPE FITTING,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 pln type 5

20шт.

271571

SEALING RING COLLAR

5/8-11 x 4-1/4 hex-hd cap

16шт.

19968R1

DOWEL,3/4" x 1 3/4"

PIN, DOWEL, 3/4 X 1-1/4", to line up carrier with frame

1шт.

9

380225R2

GASKET

rear axle carrier

2шт.

10

530033R2

CAP

rear axle carrier, 786, 886 and 986 tractors

2шт.

10

528716R1

COVER

CAP, rear axle carrier, 1086 and 1486 tractors

2шт.

11

529133R1

RING

rear axle carrier cap sealing

2шт.

12

392346R1

BRACKET

rear wheel inner position cage

2шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

13

535667R91

OIL SEAL

rear axle carrier cap oil, 786, 886 and 986 tractors

2шт.

13

144139C1

OIL SEAL

rear axle carrier cap oil, replaces 529466R91, 1086 and 1486 tractors

2шт.

14

380227R2

SHIM

rear axle carrier cap, .007

6шт.

15

380228R2

SHIM

rear axle carrier cap, .012

4шт.

16

380229R2

SHIM

rear axle carrier cap, .030

1шт.

16

380230R2

SHIM

rear axle carrier cap, .004

1шт.

16

385158R2

SHIM

rear axle carrier cap, .003

1шт.
