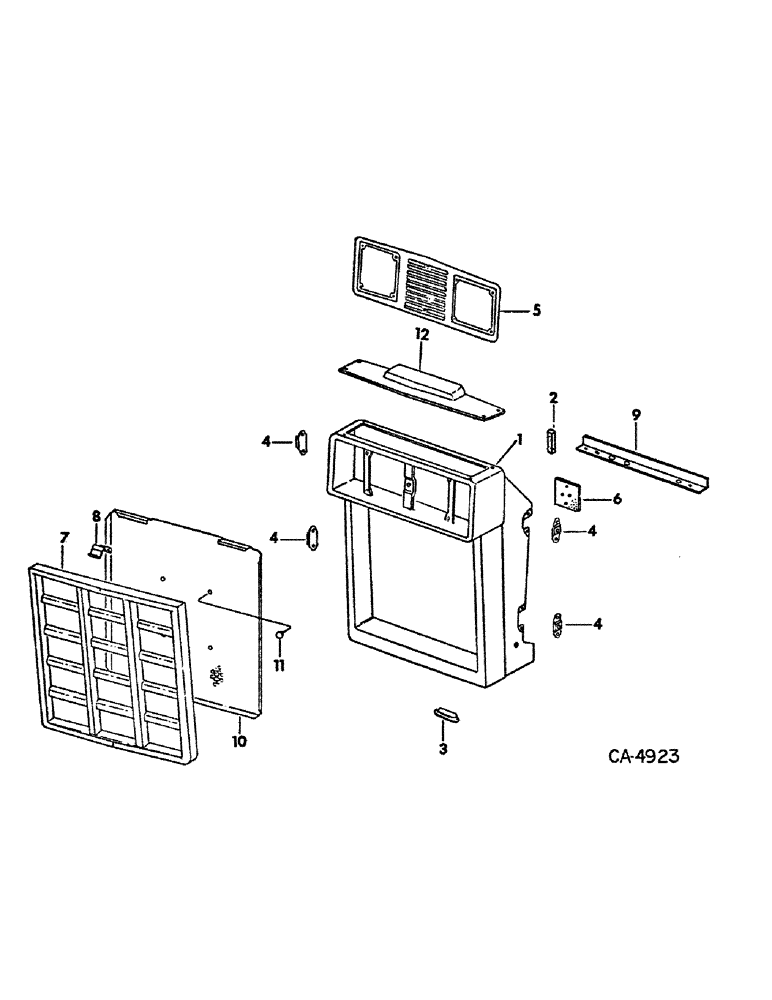

Запчасти Case IH 786 (06-07) - COOLING, GRILLE AND SUPPORTS Cooling

1

71782C91

SUPPORT ASSY.

SUPPORT ASSY, radiator and grille

1шт.

19555R1

PIN,5/16" x 1", Coiled

2шт.

271565

SHIELD,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

2

GASKET, radiator support panel foam, use 3 in. from 4 ft length marked 73215C1

4шт.

3

104520C1

PLUG

radiator support

2шт.

4

378710R91

PLATE ASSY.

BRACKET, radiator mounting plate

4шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

5

71780C1

SUPPORT ASSY.

SUPPORT, head light, plastic, replaces 531217R1

1шт.

156265

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

1/4-20 x 1 cr-rec-f-hd mach, die cast

2шт.

531225R1

SQ HOLE WASHER

head light support

6шт.

533081R1

SCREW,Phillips Drive, Flat HD, 1/4" x 1"

head light support, plastic

4шт.

Ref #5 533081r1 is zinc plated grade 5 per vendor 5-2-97 cw

1шт.

6

531218R2

SCREEN

head light support

1шт.

7

531231R1

GRILLE ASSY

GRILLE, radiator

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 slt-pan-hd mach, die cast grille

2шт.

27581R1

SCREW, 1/4-14 x 3/4 pan-hd cros-rec tapping, plastic grille

2шт.

8

531223R1

SPRING CLIP

LATCH, radiator grille

1шт.

9

71417C1

BAFFLE, radiator air

1шт.

187954

GROMMET,1" ID x 1 3/4" x .062"

rubber

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

10

531233R2

GRILLE ASSY

SCREEN, radiator grille

1шт.

11

368175R1

BUMPER

grille screen, die cast support

4шт.

12

531221R2

COVER ASSY

COVER, head light support

1шт.

369917R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 5/8"

1/4-20 x 5/8 hex-washer-hd cap

4шт.
