Запчасти Case IH 766 (07-03) - DRIVE TRAIN, CLUTCH, 766 AND 966 GEAR DRIVE TRACTORS (04) - Drive Train

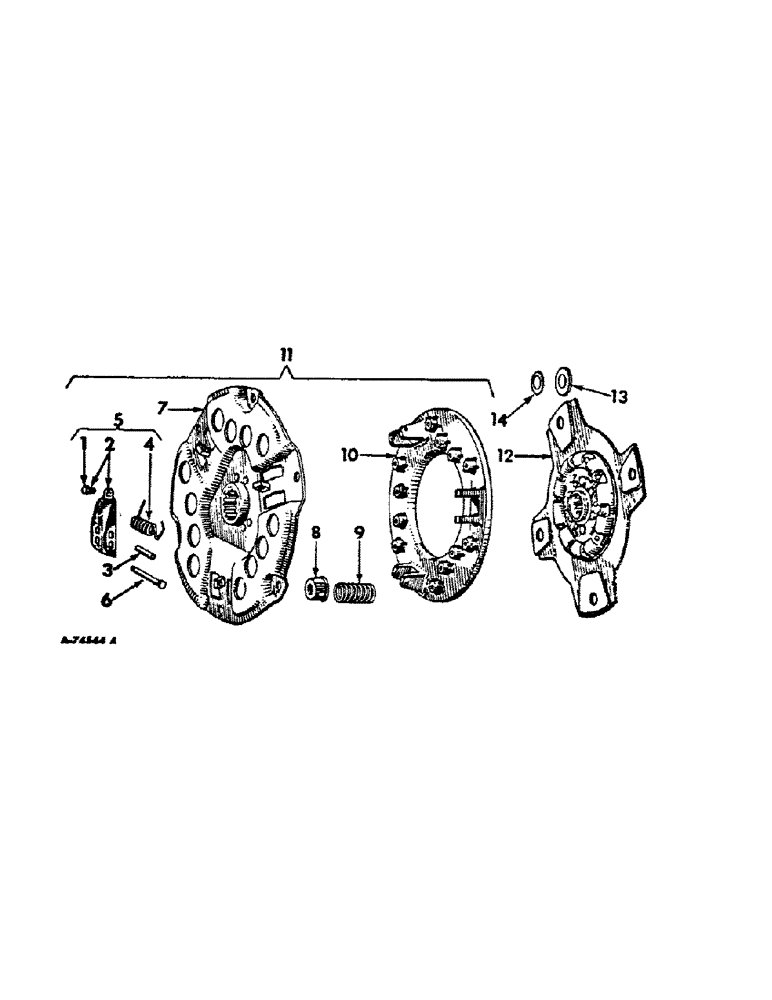

Схема запчастей Case IH 766 - (07-03) - DRIVE TRAIN, CLUTCH, 766 AND 966 GEAR DRIVE TRACTORS (04) - Drive Train
8
5
2
9
4
3
1
6
11
14
10
13
7
12

Артикул

Название

Примечание

Количество

389772A1

REMAN-CLUTCH KIT

Cotains Clutch Disc, Pressure Plate, Realease Bearing, and Pilot Bearing

1шт.

389772A1C

CORE-CLUTCH KIT

Return Part Number

1шт.

1

146806R1

SCREW,Hex, 5/16" - 24 x 15/32"

SCREW, clutch lever adjusting

3шт.

ref #1 (P/N 146806R1) - order 375571R92

1шт.

2

375571R92

FINGER

LEVER ASSEMBLY, clutch

3шт.

3

143264R1

PIVOT PIN

PIN, lever pivot

3шт.

4

375572R1

SPRING

SPRING, clutch lever

3шт.

5

375570R92

PACKAGE

PACKAGE, clutch lever assembly

1шт.

6

149487R1

PIN

PIN, clutch lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

95-11034

WASHER,1/4"

WASHER, 11/32 x 11/16 x .065

3шт.

7

375569R92

COVER ASSY

PLATE ASSEMBLY, clutch back

1шт.

8

353316R1

SPRING CUP

CUP, clutch pressure spring

12шт.

9

405301R1

VALVE SPRING

SPRING, clutch pressure, 766 gasoline tractors

12шт.

9

349934C1

SPRING

SPRING, clutch pressure, 766 diesel and 966 tractors

12шт.

10

373614R1

CLUTCH, PRESSURE PLA,304.09mm OD

PLATE, clutch pressure

1шт.

Clutch pressure plate for the Hydro 100 is 69298c91 found on Figure 7-14 ref 38. 8-3-99 cw

1шт.

11

405299R92

PLATE ASSY.

PLATE ASSY, clutch pressure, 766 gasoline tractors

1шт.

11

405299R92R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate, 12 in, 17 Tooth Hub

1шт.

11

405299R92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

Clutch pressure plate for the Hydro 100 is 69298c91 found on Figure 7-14 ref 38. 8-3-99 cw

1шт.

11

405300R92

CLUTCH PLATE

PLATE ASSY, clutch pressure, 766 diesel and 966 tractors

1шт.

11

405300R92R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate, 12 in, 17 Tooth Hub

1шт.

11

405300R92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

Clutch pressure plate for the Hydro 100 is 69298c91 found on Figure 7-14 ref 38. 8-3-99 cw

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

12

384395R92

DISC

DISC ASSY, clutch driven, dyna life

1шт.

12

384395R94R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 12 in., 11Tooth hub, 1 13/64 in. OD of splines, 4 paddle - Diesel Engine

1шт.

12

384395R94C

CORE-CLUTCH DISC

Return Part Number

1шт.

13

311292C1

WASHER

WASHER, retainer

12шт.

14

311291C1

INSULATING WASHER

WASHER, insulating

12шт.

Выбрано товаров: 31
