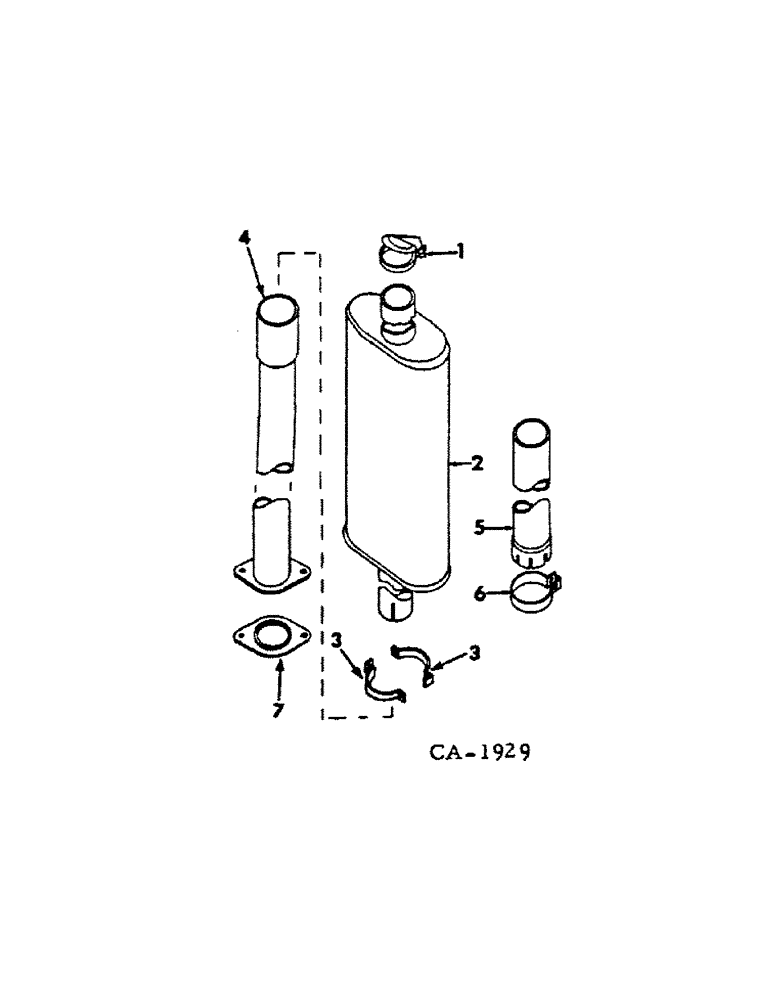

Запчасти Case IH 766 (12-19[A]) - POWER, EXHAUST SYSTEM, 766 GASOLINE TRACTORS Power

1

321575R91

CAP

ASSY, exhaust, replaces 402309R1

1шт.

2

530578R4

MUFFLER

exhaust

1шт.

3

402310R1

FASTENER

CLAMP, muffler

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8-16 x 1-3/8 x 1-3/8 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

534543R1

PIPE

ASSY, exhaust

1шт.

324470R1

BOLT

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

5

527703R1

EXTENSION

muffler, tractors w/cab or protective frame

1шт.

6

663432C1

CLAMP,69.85mm - 82.65mm

exhaust, tractors w/cab or protective frame

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 pln type 1

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

7

383977R2

GASKET

exhaust pipe

1шт.
