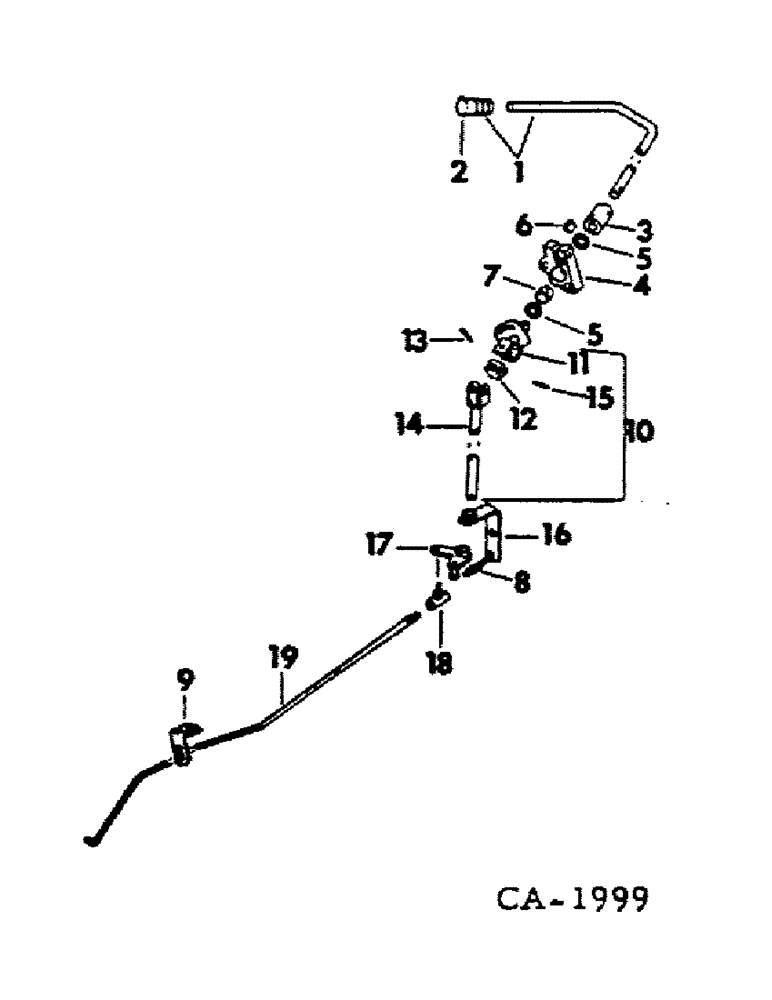

Запчасти Case IH 766 (12-16) - POWER, GOVERNOR CONTROL, 766 GASOLINE TRACTORS Power

1

533206R93

HANDLE

ASSY, governor control

1шт.

2

397931R2

GRIP

1шт.

2

397931R2GV

SPRING

Value, Knob

1шт.

3

533208R1

COUPLING

governor control

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

4

533209R1

CLAMP

friction adjusting

1шт.

181004

BOLT,Hex, 5/16" - 24 x 1 1/8", Gr 5

SCREW, 5/16-24 x 1-1/8 znd hex-hd cap

2шт.

5

535684R1

WASHER

lever stop felt

2шт.

6

535685R1

SPACER

lever stop felt

1шт.

7

533210R1

BUSHING,19.07mm ID x 20.79mm OD x 17.02mm L

BEARING, friction

1шт.

20057R1

NUT

SCREW w/nylon pellet insert, 5/16-24 x 1-1/4 znd hex-hd cap

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

8

369470R1

VALVE SPRING

SPRING, governor control balancing

1шт.

9

384013R1

GUIDE, governor control rod

1шт.

10

533222R91

SPARE PART

JOINT & SHAFT ASSY, governor control, Serial Range: -8999

1шт.

10

67812C91

JOINT

& SHAFT ASSY, governor control, Start Serial: 9000

1шт.

11

533212R1

STOP

ASSY, lever, Serial Range: -8999

1шт.

11

67813C1

STOP

ASSY, lever, Start Serial: 9000

1шт.

12

382691R1

CROSS

BLOCK, universal joint center

1шт.

13

382692R1

PIN

center block

1шт.

14

382694R11

ROD

SHAFT ASSY, governor control lower

1шт.

15

385681R1

PIN

1/4 x 1-1/4 str

1шт.

16

382695R11

BRACKET

SUPPORT ASSY, governor control shaft

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

17

382696R11

LEVER

ASSY, governor control rod operating

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

18

393353R91

JOINT TURNING

JOINT, 5/16-24 C-Z type SP ball

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

1шт.

19

382697R1

ROD, governor control

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.
