(12-15) - POWER, CHOKE CONTROLS, 766 GASOLINE TRACTORS

Запчасти Case IH 766 (12-15) - POWER, CHOKE CONTROLS, 766 GASOLINE TRACTORS Power

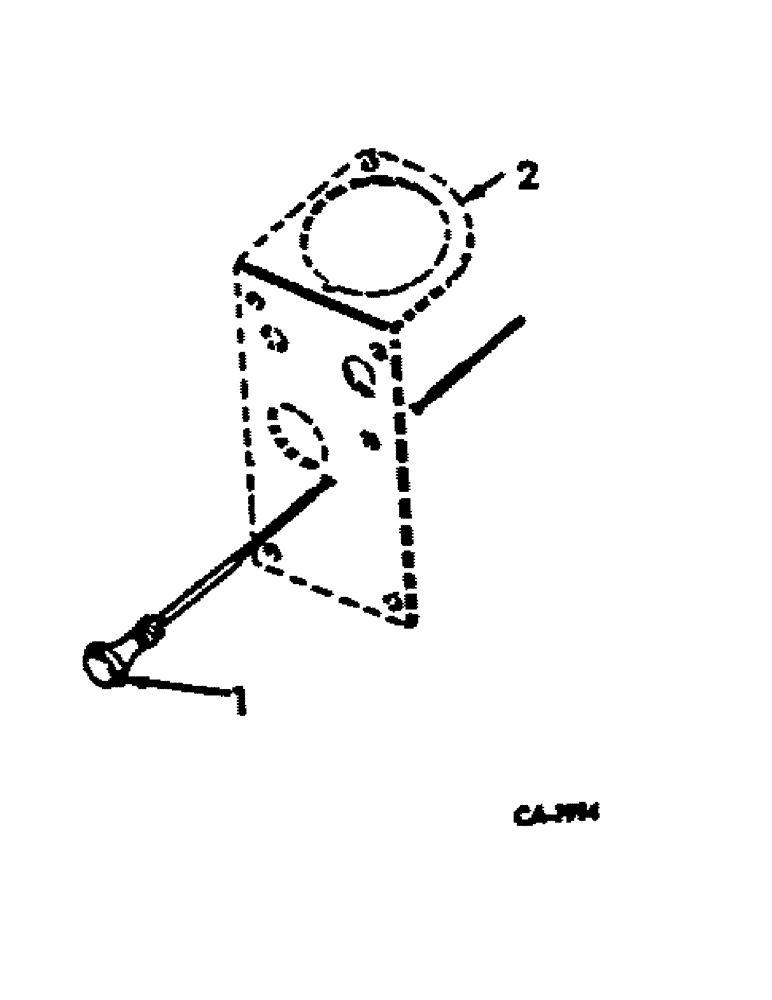

Схема запчастей Case IH 766 - (12-15) - POWER, CHOKE CONTROLS, 766 GASOLINE TRACTORS Power
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

374219R93

CABLE

CONTROL ASSY, choke

1шт.

1

374219R93GV

CABLE

Value, Choke Cable

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

2

PANEL, instrument RH, refer to instrument panel and gauges listing, Figure(s) 11-2, 11-3, 11-4

1шт.
