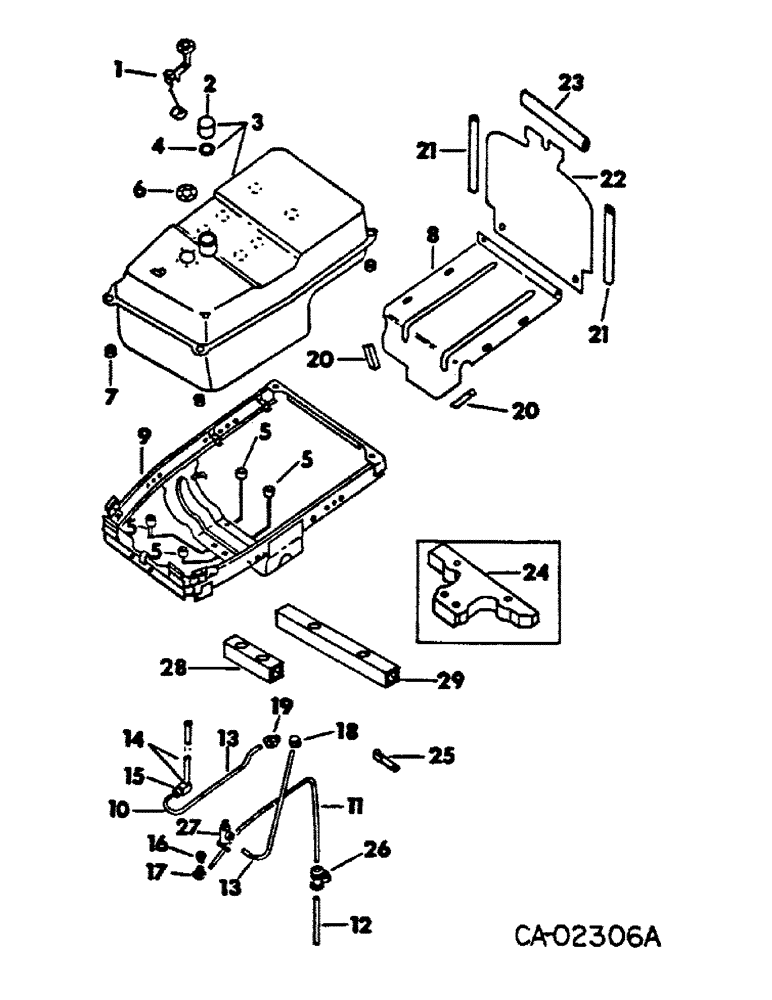

Запчасти Case IH 766 (12-08) - POWER, FUEL TANK, SUPPORTS AND PIPING, 766 DIESEL AND 966 TRACTORS Power

1

378427R93

GAUGE

SENDING UNIT, electric fuel gage

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

2

361910R91

PLUG

CAP W/GASKET, fuel tank filler

1шт.

213516

RIVET

7/8 x 1/8 C-Z ov-hd tubular

2шт.

3

406424R92

TANK

ASSY, fuel w/filler cap

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

4шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

4шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

4шт.

4

23977DB

GASKET

fuel tank filler cap

1шт.

5

536630R1

BUSHING

fuel tank support isomount

4шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

4шт.

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

17/32 x 1-1/2 x 11 ga

4шт.

6

369154R1

GASKET

sending unit

1шт.

7

60671DA

WASHER,11.94mm ID x 30.48mm OD x 8.13mm Thk

PAD, fuel tank insulating

4шт.

PO10532

WASHER

SPACER, 13/32 x 1-1/4 x 11 ga

12шт.

8

531290R1

SHIELD ASSY, lower heat

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5-16/18 x 1/2 hex-hd cap

2шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

9

536628R91

SUPPORT ASSY, fuel tank

1шт.

389117R91

NUT

5/16-18 floating cage

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

10

TUBE ASSY, fuel return line, 766 diesel tractors, use 16.25 in. of 3/8 OD copper tubing from 50 ft. rolls marked, 995063R1 and two nuts, 137399

1шт.

10

TUBE ASSY, fuel return line, 966 tractors, use 17.38 in. of 3/8 OD copper tubing from 50 ft roll marked, 995063R1 and two nuts, 137399

1шт.

222-1004

TUBE NUT,5/8" - 18

NUT, 5/8-18 inverted flared tube

2шт.

11

TUBE ASSY, fuel tank drain long, 766 diesel tractors, use 28.0 in. of 1/5 OD copper tubing from 50 ft foll marked, 995061R1, one nut, 137397, one nut, 114627 and one sleeve, 114628

1шт.

11

TUBE ASSY, fuel tank drain long, 966 tractors, use 27.7 in. of 1/4 OD copper tubing from 50 ft roll marked, 995061R1, one nut, 137397, one nut, 114627 and one sleeve, 114628

1шт.

NLS

NO LONGER SERVICED

7/16-24 inverted flared tube

1шт.

12

TUBE, fuel tank drain short, use 7.0 in. of 1/4 OD copper tubing from 50 ft roll marked 995061R1, one nut, 114627 and one sleeve, 114628

1шт.

13

TUBE ASSY, fuel tank to fuel filter, use 15.87 in. 3/8 OD copper tubing from 50 ft roll marked, 995061R1 and two nuts, 137399, 766 diesel tractors

1шт.

13

TUBE ASSY, fuel tank to fuel filter, use 19.12 in. of 3/8 OD copper tubing from 50 ft roll marked, 995063R1 and two nuts, 137399, 966 tractors

1шт.

222-1004

TUBE NUT,5/8" - 18

NUT, 5/8-18 inverted flared tube

2шт.

14

405685R2

FUEL TUBE

PIPE ASSY, fuel over flow

1шт.

15

144535R1

ELBOW

5/8-18 90 deg inverted flared tube

1шт.

16

119933

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

3/8 x 1/8 reducing pipe

1шт.

17

225810

ELBOW UNION

ELBOW, 7/16-24 x 90 deg inverted flared tube, tank to drain valve, tank end

1шт.

18

193004

ELBOW

5/8-18 90 deg inverted flared tube, tank to filter, filter end

1шт.

19

442323

CONNECTOR, ELEC

CONNECTOR, 5/8-18 inverted flared tube, return line, engine end

1шт.

20

535683R1

SEAL, lower heat shield

2шт.

21

536503R1

SEAL

LH & RH side

2шт.

22

533563R1

SHIELD ASSY, upper heat

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

23

SEAL, heat shield upper, use 15 in. of seal, 536503R1

1шт.

24

535349R2

SPACER, fuel tank support

1шт.

21903R1

WASHER

17/32 x 3/4 x .059, 766, on orders for 535349R2 furnish 4 spacers 524925R1, 1 spacer 109038C1 and 1 tube 109039C1, Serial Range: -17330

1шт.

21903R1

WASHER

17/32 x 3/4 x .059, 966, on orders for 535349R2 furnish 4 spacers 524925R1, 1 spacer 109038C1 and 1 tube 109039C1, Serial Range: -32725

1шт.

25

370740R1

CLAMP

CLIP, fuel tank water drain

1шт.

26

385747R91

COCK

VALVE, fuel tank drain w/nut & sleeve

1шт.

27

537978R1

LOCK VALVE

VALVE, fuel tank shut-off, 966 tractors

1шт.

27

390069R91

SHUT-OFF VALVE

VALVE, fuel tank shut-off, 766 diesel tractors

1шт.

28

109038C1

SPACER, fuel tank front support

1шт.

524925R1

SPACER, 1/2 x 1-3/8 pipe

2шт.

29

109039C1

TUBE, fuel tank rear, support

1шт.

524926R1

SPACER, 1/2 x 1-3/8 pipe

2шт.
