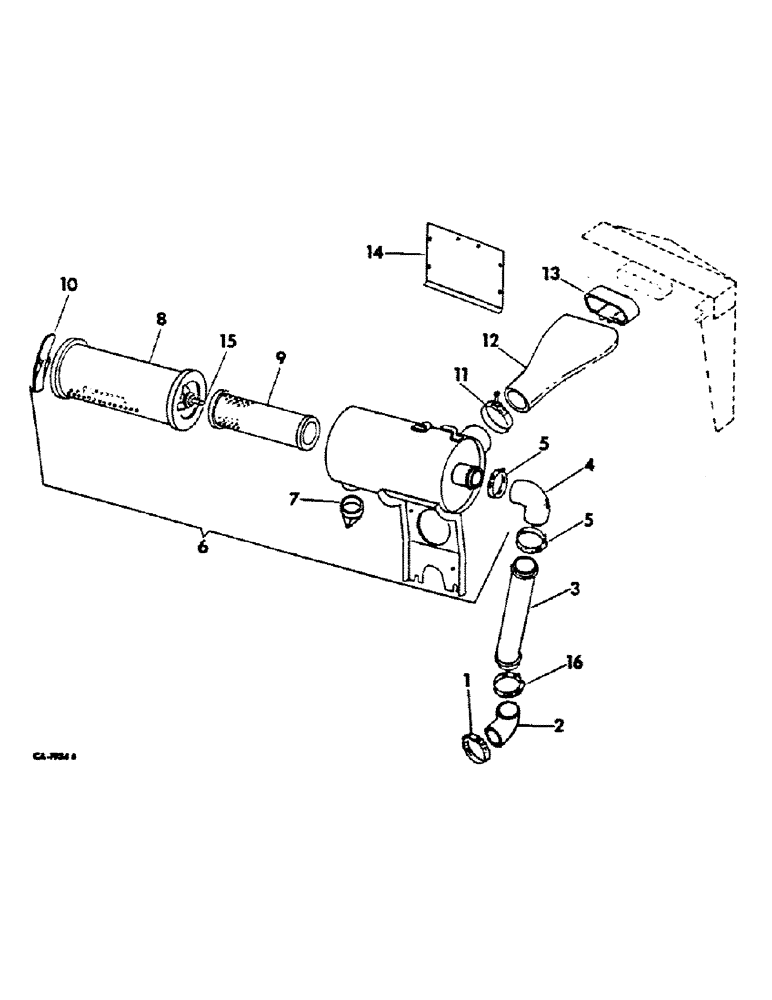

Запчасти Case IH 766 (12-02) - POWER, AIR CLEANER AND CONNECTIONS, 766 GASOLINE TRACTOR Power

1

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, air cleaner pipe hose

1шт.

2

382400R1

INTAKE AIR HOSE,2.25" ID, 2.50" ID, SAE 20R4, Class SC

Air Cleaner 2.25" ID, 2.50" ID, SAE 20R4, Class SC

1шт.

3

389910R21

TUBE ASSY, air, Serial Range: cleaner-carburetor

1шт.

4

306190R1

HOSE ASSY.

HOSE, air cleaner pipe

1шт.

5

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, upper hose

2шт.

6

398518R92

CLEANER ASSY, air

1шт.

7

383734R2

VALVE

dust unloader

1шт.

8

537334R1

AIR CLEANER,Round, 4.38" ID x 6.09" OD x 13" L

ELEMENT ASSY, filter

1шт.

9

537335R2

ELEMENT

ASSY, safety

1шт.

10

71913C1

LOCK VALVE

LATCH ASSY, replaces 530480R1

1шт.

11

391671R91

HOSE CLAMP,#56, 3.06/4.00 Type F Worm

CLAMP, intake hose rear

1шт.

12

532452R1

HOSE, air cleaner intake

1шт.

13

427312R91

HOSE CLAMP,#100, 5.88/6.75 Type F Worm

CLAMP, intake hose front

1шт.

14

532451R2

BAFFLE, pre-cleaner

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

15

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSY

1шт.

16

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, lower hose upper

1шт.
