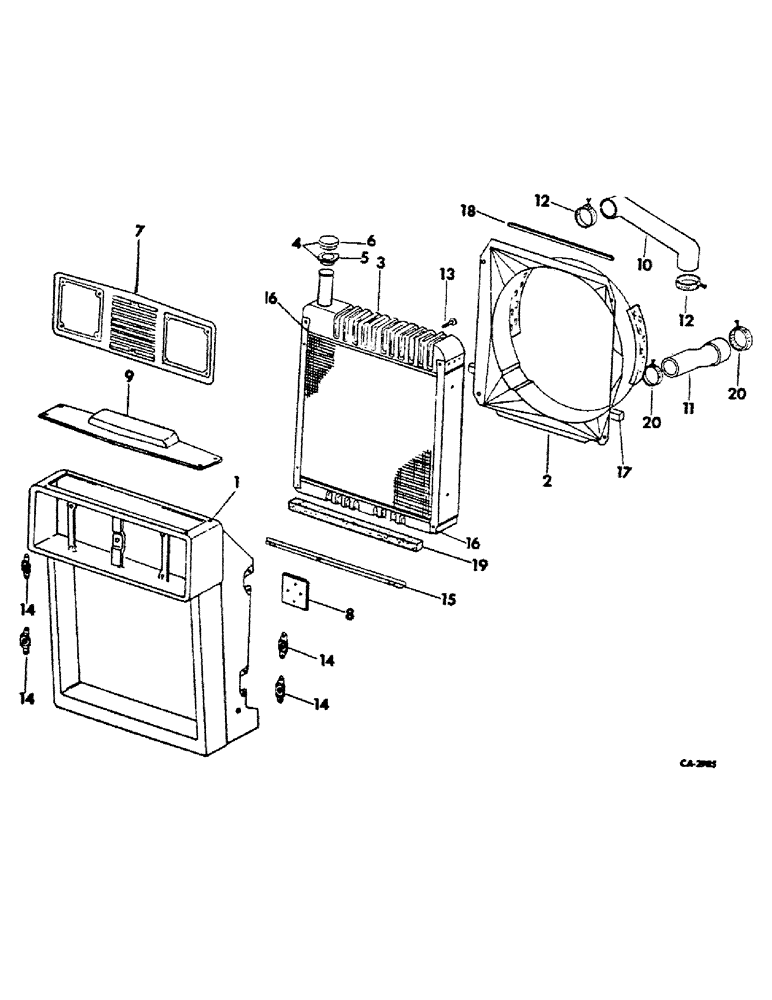

Запчасти Case IH 766 (06-08) - COOLING, RADIATOR AND CONNECTIONS, 766 TRACTORS Cooling

1

71782C91

SUPPORT ASSY.

SUPPORT, radiator & grille

1шт.

19555R1

PIN,5/16" x 1", Coiled

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5-8/11 x 2-3/4 hex-hd cap

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

104520C1

PLUG

radiator support

1шт.

2

531210R1

SHROUD

ASSY, fan, diesel engine tractors

1шт.

2

531226R2

SHROUD ASSY, fan, gasoline engine tractors

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

3

121723C1

CORE, RADIATOR

RADIATOR ASSY, less filler cap, diesel engine tractors

1шт.

3

533581R2

RADIATOR ASSY, less filler cap, gasoline engine tractors

1шт.

68429C1

CLIP

radiator overflow hose

1шт.

107518R1

CLIP, radiator overflow hose, tractors w/tricycle front axle

1шт.

306132C1

CABLE TIE,14.5" L

STRAP, hose lock

1шт.

444614

PLUG,Hex Hd, 1/8"-27, Brass

1/8-27 BRS auto hex-hd pipe

1шт.

4

532672R91

CAP

w/cover, radiator

1шт.

5

532673R1

CAP

ASSY

1шт.

6

532674R1

PLUG

COVER

1шт.

7

531217R1

SUPPORT ASSY.

SUPPORT, head light

1шт.

156265

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

1/4-20 x 1 cr-rec-f-hd mach

2шт.

531225R1

SQ HOLE WASHER

head light support

6шт.

8

531218R2

SCREEN

head light support

1шт.

9

531221R2

COVER ASSY

COVER, head light support

1шт.

369917R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 5/8"

1/4-20 x 5/8 hex washer-hd cap

4шт.

10

66003C1

RADIATOR HOSE,57.20 mm ID x 393.70 mm, SAE 20R4 Class SC, SAE 20R Class R Grade 1A

Inlet, Diesel engine tractors 57.20 mm ID x 393.70 mm, SAE 20R4 Class SC, SAE 20R Class R Grade 1A

1шт.

10

532679R1

RADIATOR HOSE,50.80 mm ID x 365.80 mm, SAE 20R4 CLASS 5C, SAE 20R4 CLASS R, GRADE 1A

Inlet, Gasoline Engine Tractors 50.80 mm ID x 365.80 mm, SAE 20R4 CLASS 5C, SAE 20R4 CLASS R, GRADE 1A

1шт.

11

532678R1

RADIATOR HOSE,2.50" ID, 2.62" ID x 7.80", SAE 20R4 CLASS5C, SAE 20R4 CLASS R GRADE 1A

2.50" ID, 2.62" mm ID X 7.80", SAE 20R4 CLASS5C, SAE 20R4 CLASS R GRADE 1A, Outlet, Diesel Engine Tractors

1шт.

11

532676R1

RADIATOR HOSE,2.00" ID x 13.70", SAE 20R4 CLASS D-2, SAE 20R4 CLASS R GRADE 1A.

2.00" ID x 13.70", SAE 20R4 Class D-2, SAE 20R4 Class R Grade 1A, Outlet, Gasoline engine tractors

1шт.

12

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, hose

2шт.

13

614201R1

VALVE

COCK, radiator drain

1шт.

14

378710R91

PLATE ASSY.

BRACKET, radiator mounting plate

4шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

15

531224R1

BAFFLE, radiator air

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

16

528936R1

GASKET

SEAL, radiator air

2шт.

17

531216R1

STRIP

SEAL, fan shroud, lower

1шт.

18

385631R1

SEAL

fan shroud, upper

1шт.

19

394787R1

GASKET

GASKET, radiator baffle, tractors w/tricycle front upper bolster

1шт.

20

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, hose

2шт.

STRIP, radiator support panel foam, use as required from a bulk roll marked 73213C1

1шт.
