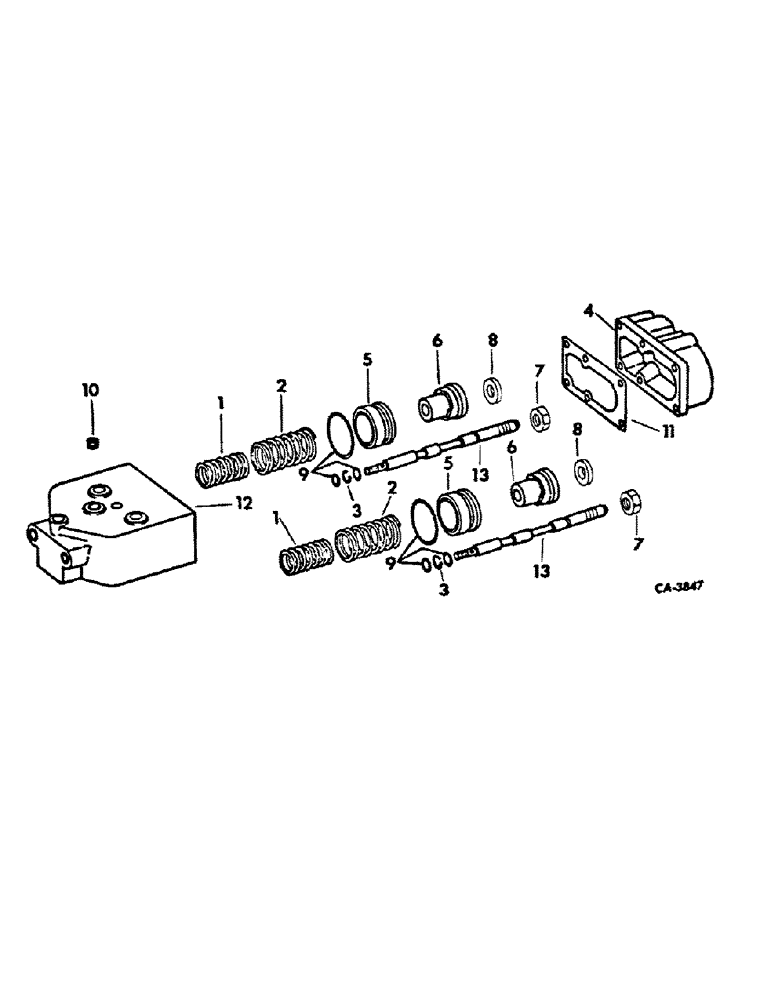

Запчасти Case IH 766 (04-7) - BRAKES, POWER BRAKE VALVE (5.1) - BRAKES

72807C93

VALVE

PACKAGE, hyd power brake valve, consists of (1) valve 123331C92 (1) instruction sheet (NSS)

1шт.

123331C92

VALVE

ASSY, hyd power brake, for replacement order service package, 72807C93

1шт.

69719C91

LOCK VALVE

VALVE ASSY, hyd power brake, for replacement order service package, 72807C93

1шт.

1

384492R1

SPRING

return, used w/valve, 69719C91

2шт.

1

71707C1

SPRING

return, used w/valve, 123331C92

2шт.

2

384493R1

SPRING

large piston return, used w/valve, 69719C91

2шт.

2

71708C1

SPRING

large piston, used w/valve, 123331C92

2шт.

3

85663R1

RING, 1/2 sq snap

2шт.

4

384495R1

CAP

body

1шт.

5

384496R2

PISTON ASSY.

PISTON, large, used with valve 69719C91

2шт.

5

69156C2

PISTON

used with valve 123331C92

2шт.

6

69157C1

PISTON

small

2шт.

7

9411648

LOCK NUT,1/2"-20, GC

NUT, 1/2-20 lock

1шт.

8

69158C1

WASHER,12.78mm ID x 25.4mm OD x 6.35mm Thk

piston

2шт.

9

71487C91

PACKAGE

brake valve o-ring & gasket, replaces 384502R91, consists of (1) gasket 384503R2, (1) instructions (NSS), (4) o-ring 399906R1 (NSS), (2) o-ring 399907R1 (NSS), (4) o-ring 364839R1, (2) o-ring 70340C1 (NSS)

1шт.

10

384501R1

PLATE

orifice

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

6шт.

384503R2

GASKET,0.38mm Thk

valve cap

1шт.

12

NSS

NOT SOLD SEPARAT

VALVE BODY, not serviced separately order service package 72807C93

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL, not serviced separately order service package 72807C93

1шт.
