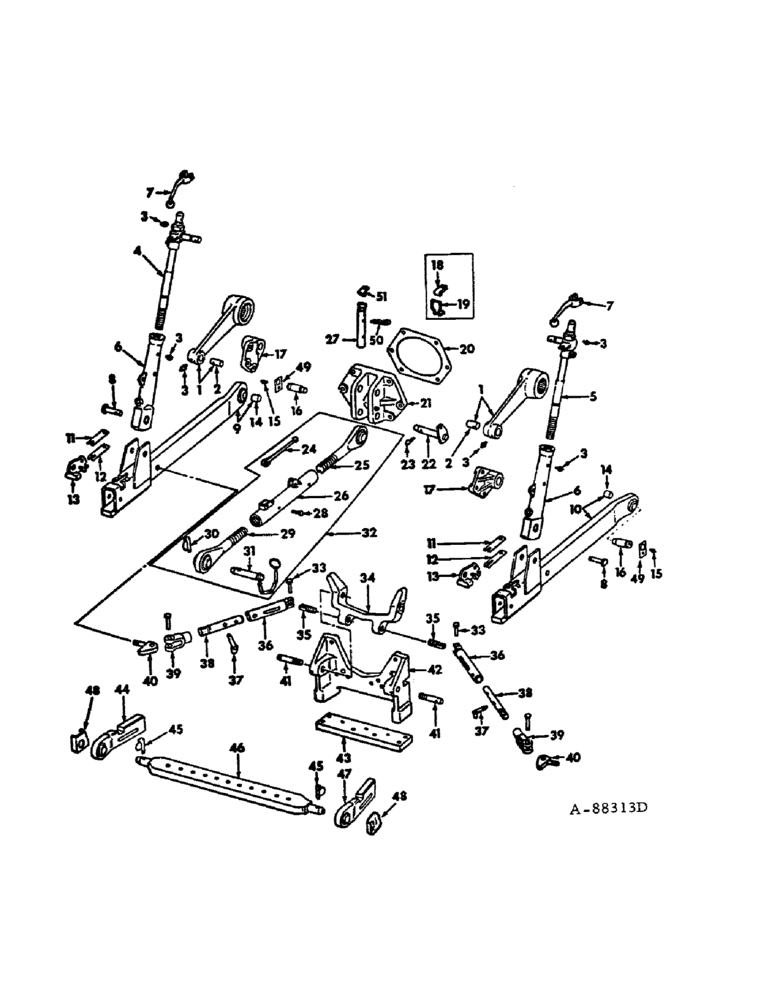

Запчасти Case IH 766 (09-10) - FRAME, THREE POINT HITCH, 766, 966 AND HYDRO 100 TRACTORS WITH DRAFT CONTROL AND DRAFT SENSING (12) - FRAME

1

382156R11

ARM

ASSY, rockshaft

2шт.

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm

2шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

2шт.

2

383357R1

BUSHING,28.56mm ID x 33.38mm OD x 63.5mm L

rockshaft arm

2шт.

3

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

6шт.

4

397095R2

SCREW

ASSY, LH leveling

1шт.

4

397095R2GV

SCREW

Value, LH Leveling Screw

1шт.

520175R1

CLIP

PIN, quick attachable cot

1шт.

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8 x 1 sq-hd cone-pt set

1шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga

1шт.

5

397096R2

SCREW

ASSY, RH leveling

1шт.

5

397096R2GV

SCREW

Value, RH Leveling Screw

1шт.

520175R1

CLIP

PIN, quick attachable cot

1шт.

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8 x 1 sq-hd cone pt set

1шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga

1шт.

6

396752R1

HOUSING

leveling screw

2шт.

19791R1

PIN,1/4" x 1 1/8", Coiled

2шт.

7

523861R2

HANDLE

HANDLE, leveling screw

2шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

2шт.

8

392915R1

AXLE PIN

PIN, leveling screw housing

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

9

398251R92

DRAG LINK

LINK W/BUSHING, front section lower LH

1шт.

10

398252R92

LINK

W/BUSHING, front section lower RH

1шт.

11

382193R1

SPRING

stiffener

2шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

SCREW, 5/16-24 x 1/2 hex-hd cap

2шт.

12

382192R1

SPRING

lower link latch

2шт.

13

398373R1

LATCH

lower link

2шт.

14

383361R1

BUSHING

front lower link ball

2шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg

2шт.

16

406685R1

PIN,25.4mm OD x 101.6mm L

lower link

2шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

384025R1

BRACKET

lockout, not included in three-point hitch attachment

2шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

6шт.

18

(Not used in this application)

1шт.

19

(Not used in this application)

1шт.

20

383330R1

GASKET

draft control adj opening cover

1шт.

21

382212R2

KIT

BRACKET ASSY, upper link, replaces 382212R11, on orders for 382212R2 and 70801C1, pin

1шт.

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 hex-hd cap

6шт.

22

382210R11

PIN

ASSY, upper link bracket, used w/bracket 382212R11

1шт.

22

70801C1

PIN

ASSY, upper link, use w/bracket 382212R2

1шт.

23

520175R1

CLIP

PIN, quick attachable cot

1шт.

24

392204R1

HANDLE

upper link turnbuckle

1шт.

25

395970R2

BOLT (SPREADER),Cheese, M5 x 8mm, Cl 5.8

SCREW ASSY, RH thread

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

1шт.

26

404633R1

BUCKLE

BODY, turnbuckle

1шт.

27

393002R11

TUBE

ASSY, upper link storage

1шт.

28

SB191

HEADED PIN,3/8" x 1 3/4"

PIN, 3/8 x 1-3/4 std-hd

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

29

395968R2

SCREW

ASSY, LH thread

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

1шт.

30

517758R91

SPLIT PIN/SAFETY PIN

PIN, implement pin retaining

1шт.

31

380563R91

PIN

ASSY, upper link implement

1шт.

32

404631R92

TRUNNION

TURNBUCKLE ASSY, upper link

1шт.

33

384852R1

AXLE PIN

PIN, stabilizer

4шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

4шт.

34

382386R2

ARM

stabilizer control

1шт.

35

382390R1

BOLT (SPREADER),1 1/4" - 7 x 2.38"

EYEBOLT, stabilizer front

2шт.

36

406243R2

UPPER LINK

YOKE, lateral limiter

2шт.

37

383363R11

AXLE PIN

PIN ASSY, lockout

2шт.

520175R1

CLIP

PIN, quick attachable cot

2шт.

38

386198R1

STUD

later limiter

2шт.

527374R1

AXLE PIN,12.7mm OD x 57.15mm L

PIN, 1/2 x 1-3/4 HV coiled spring

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

2шт.

364436R1

PIN,3/16" x 1", Coiled

2шт.

39

406244R2

YOKE

limiter rear

2шт.

40

382397R1

BOLT,3/4" - 16 x 2", Drilled

EYEBOLT, stabilizer rear

2шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

2шт.

41

383362R2

AXLE PIN,25.4mm OD x 106.68mm L

SHAFT, stabilizer control arm

2шт.

616252R1

LOCK PIN,3/8" x 2 1/8", Slotted

Pin, 3/8" x 2 1/8", Slotted

2шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt hex

2шт.

119179

PIN< 3/16 x 1-7/8 cot

2шт.

42

108501C1

SUPPORT

drawbar, 766, Start Serial: 13893

1шт.

42

108501C1

SUPPORT

drawbar, 966, Start Serial: 27089

1шт.

42

108501C1

SUPPORT

drawbar, hydro 100, Start Serial: 10431

1шт.

42

539749R91

SUPPORT ASSY.

PACKAGE, drawbar support service, consists of (1) nut 114495, (1) screw 271585, (1) support (NSS), 766, Serial Range: -13892

1шт.

42

539749R91

SUPPORT ASSY.

PACKAGE, drawbar support service, consists of (1) nut 114495, (1) screw 271585, (1) support (NSS), 966, Serial Range: -27088

1шт.

42

539749R91

SUPPORT ASSY.

PACKAGE, drawbar support service, consists of (1) nut 114495, (1) screw 271585, (1) support (NSS), hydro 100, Serial Range: -10430

1шт.

271585

WASHER,Hex, 5/8" - 18 x 1.75", Gr 5

SCREW, 5/8-18 x 1-3/4 hex-hd cap, RH crank arm stop

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

8шт.

43

400714R1

BAR

PLATE, drawbar support

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap

4шт.

44

398371R11

DRAG LINK

LINK ASSY, rear section lower LH

1шт.

20126R1

PIN,1/2" x 2", Coiled

1шт.

45

517758R91

SPLIT PIN/SAFETY PIN

PIN ASSY, drawbar

2шт.

46

(Not used in this application)

1шт.

47

398372R11

DRAG LINK

LINK ASSY, rear section lower RH

1шт.

20126R1

PIN,1/2" x 2", Coiled

1шт.

48

404787R1

SHIELD

linch pin

2шт.

49

406687R1

RETAINER

lower link pin

2шт.

50

517843R1

COTTER PIN

PIN, upper link quick attachable

1шт.

51

393004R1

SUPPORT

CLIP, upper link storage bracket

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

380579R91

BUSHING

PARTS ACCESSORY, bushing & pin adapter, for use w/category I implements when mounting on category II hitch, consists of

1шт.

380581R1

BUSHING

upper link category #1 short

1шт.

380582R1

BUSHING

upper link category #1 long

1шт.

380583R1

BUSHING

lower link category #1 short

2шт.

380584R1

BUSHING

lower link category #1 long

2шт.

380580R91

PIN

ASSY, upper link implement

1шт.

11484R

BUSHING

SPACER, lower long bushing

2шт.
