(09-07[A]) - FRAME, ROCKSHAFT ARMS, 766 AND 966 TRACTORS WITH DRAFT CONTROL AND DRAFT SENSING

Запчасти Case IH 766 (09-07[A]) - FRAME, ROCKSHAFT ARMS, 766 AND 966 TRACTORS WITH DRAFT CONTROL AND DRAFT SENSING (12) - FRAME

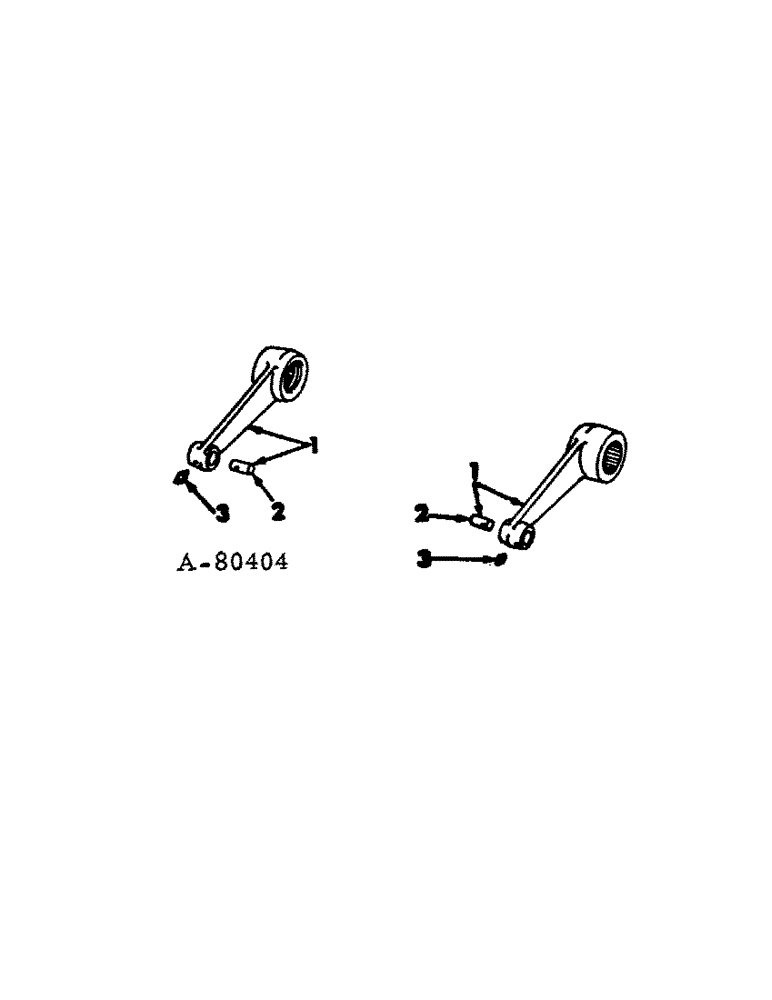

Схема запчастей Case IH 766 - (09-07[A]) - FRAME, ROCKSHAFT ARMS, 766 AND 966 TRACTORS WITH DRAFT CONTROL AND DRAFT SENSING (12) - FRAME
1
2
2
3
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

382156R11

ARM

ASSY, rockshaft

2шт.

2

383357R1

BUSHING,28.56mm ID x 33.38mm OD x 63.5mm L

rockshaft arm

2шт.

3

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type lub

2шт.
