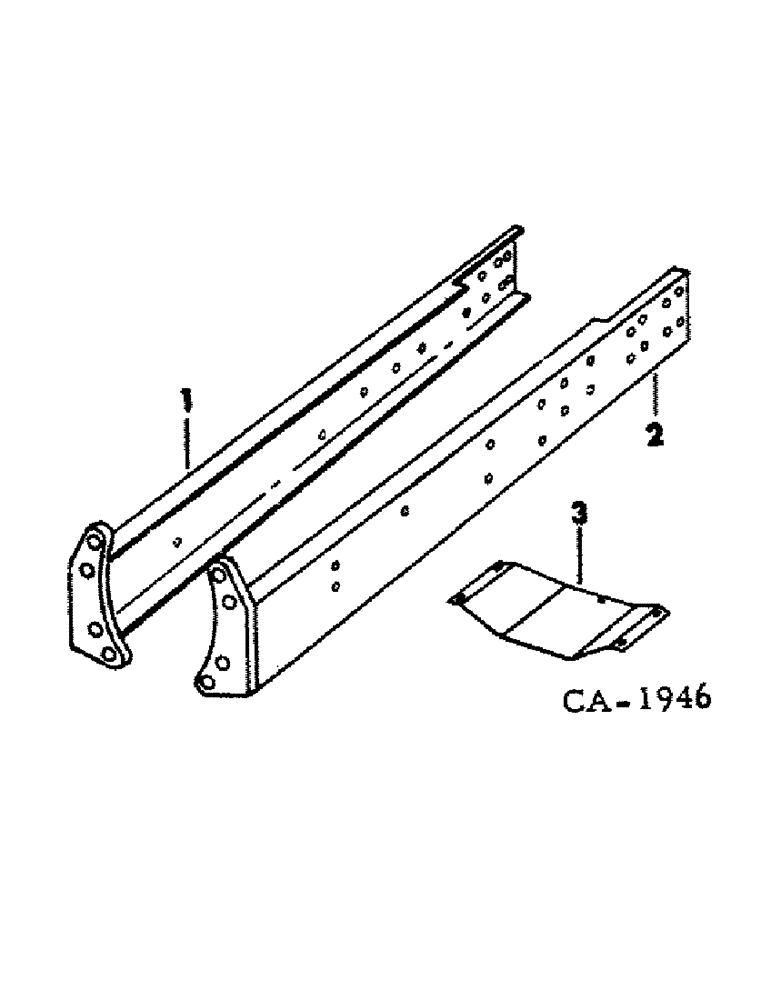

Запчасти Case IH 766 (09-02) - FRAME, FRONT CHANNELS (12) - FRAME

1

532307R3

CHANNEL ASSY, LH front frame, 766 gasoline tractors

1шт.

1

534159R3

CHANNEL ASSY, LH front frame, 766 gasoline tractors w/tricycle front upper bolster

1шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 hex-hd cap

2шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap

2шт.

396843R1

SCREW, 3/4-10 x 2-1/2 12 pt cap

1шт.

1

532316R5

CHANNEL

ASSY, LH front frame, 766 diesel, 966 - 1066, 1466 and hydro 100 tractors

1шт.

1

534165R4

CHANNEL

ASSY, LH front frame, 766 diesel, 966, 1066, 1466 and hydro 100 tractors w/tricycle front upper bolster

1шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-3/4 hex-hd cap

2шт.

271617

O-RING

SCREW, 3/4-10 x 3-1/2 hex-hd cap

2шт.

25582R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/2"

SCREW, 3/4-10 x 3-1/2 12 pt cap

1шт.

1

538105R1

CHANNEL, LH front frame, 1468 tractors

1шт.

20727R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

4шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 5/8-11 x 5 hex-hd cap

2шт.

271616

SEAL KIT

SCREW, 3/4-10 x 3-1/4 hex-hd cap

2шт.

396842R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/4"

SCREW, 3/4-10 x 3-1/4 12 pt cap

1шт.

2

532308R3

CHANNEL ASSY, RH front frame, 766 gasoline tractors

1шт.

2

534160R3

CHANNEL ASSY, RH front frame, 766 gasoline tractors w/tricycle front upper bolster

1шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 hex-hd cap

2шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap

2шт.

396843R1

SCREW, 3/4-10 x 2-1/2 12 pt cap

1шт.

2

532317R4

SUPPORT ASSY.

CHANNEL ASSY, RH front frame, 766 diesel, 966, 1066, 1466 and hydro 100 tractors

1шт.

2

534166R4

CHANNEL ASSY, RH front frame, 766 diesel, 966, 1066, 1466 and hydro 100 tractors w/tricycle front upper bolster

1шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-3/4 hex-hd cap

2шт.

271617

O-RING

SCREW, 3/4-10 x 3-1/2 hex-hd cap

2шт.

25582R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/2"

SCREW, 3/4-10 x 3-1/2 12 pt cap

1шт.

2

538106R1

CHANNEL, RH front frame, 1468 tractors

1шт.

20727R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

4шт.

271574

BEARING ASSY

SCREW, 5/8-11 x 5 hex-hd cap

2шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 hex-hd cap

2шт.

396842R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/4"

SCREW, 3/4-10 x 3-1/4 12 pt cap

1шт.

3

531245R1

SHIELD, fan pulley, 766, 966, 1066, 1466 and hydro 100 tractors

1шт.

17430R1

BOLT,Hex, 5/8" - 11 x 1", Gr 2

SCREW, 5/8-11 x 1 hex-hd cap

2шт.

3

381714R1

SHIELD

fan pulley, 766, 966, 1066 & 1466 tractors w/tricycle front upper bolster

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.
