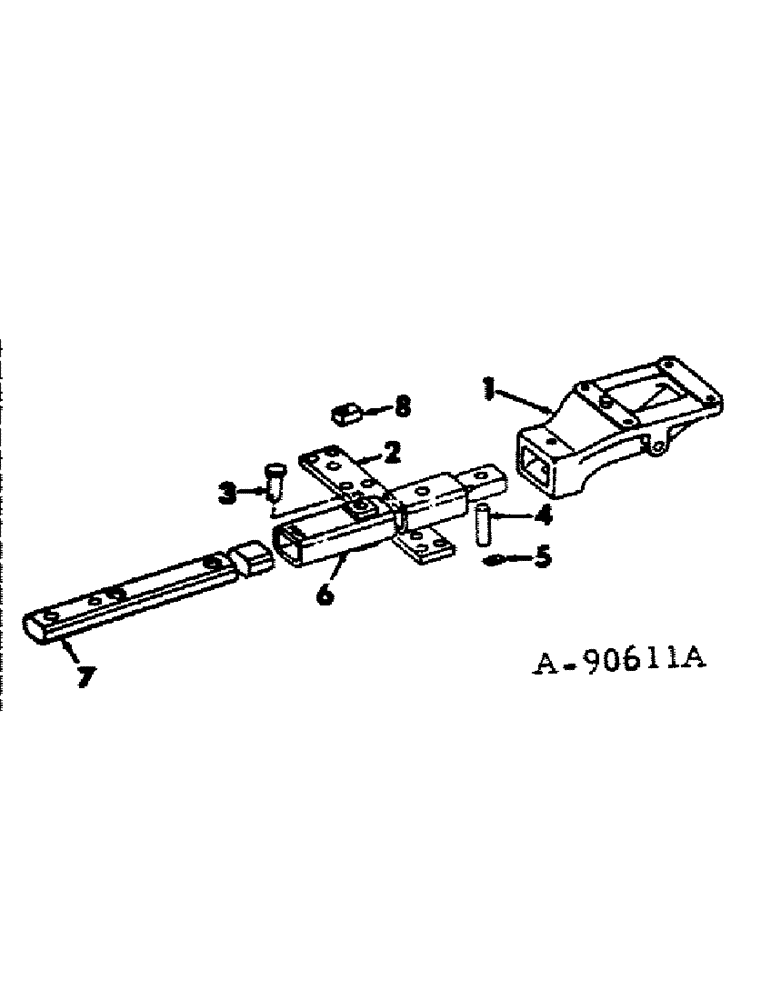

Запчасти Case IH 766 (09-02[A]) - FRAME, INDEPENDENT SWINGING DRAWBAR, WITH TWO OR THREE POINT HITCH (12) - FRAME

ATTACHMENT, independent swinging drawbar, tractors w/ three point hitch composed of all parts marked A

1шт.

ATTACHMENT, independent swinging drawbar, tractors w/ two point hitch composed of all parts marked B

1шт.

1

381707R21

SUPPORT

ASSY, swinging drawbar pivot

1шт.

20324C1

PIN, 1 x 2 dowel

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

2

389065R1

BAR, support, unit B

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap

4шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd cap, drawbar stop

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

220081

NUT

3/4-10 hex

2шт.

3

389428R1

AXLE PIN,25.4mm OD x 95.25mm L

PIN, 1 x 3-3/4 headed, operating position, units A and B

1шт.

520175R1

CLIP

PIN, quick attachable cot

1шт.

3

397067R1

PIN

drawbar, storage position, units A and B

1шт.

4

57654D

PIVOT PIN

PIN, drawbar pivot, units A and B

1шт.

5

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, pivot pin lock, units A and B

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

393501R11

BAR

DRAWBAR ASSY, front section, units A and B

1шт.

7

397065R1

BAR

DRAWBAR ASSY, rear section, units A and B, for use with hammer strap 389425R1

1шт.

Ref #7 - hole size at right hand end is 1.156"

1шт.

8

65301C1

BLOCK

drawbar stop, 2 for unit A

1шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW, 3/4-10 x 1-3/4 hex-hd cap

2шт.
