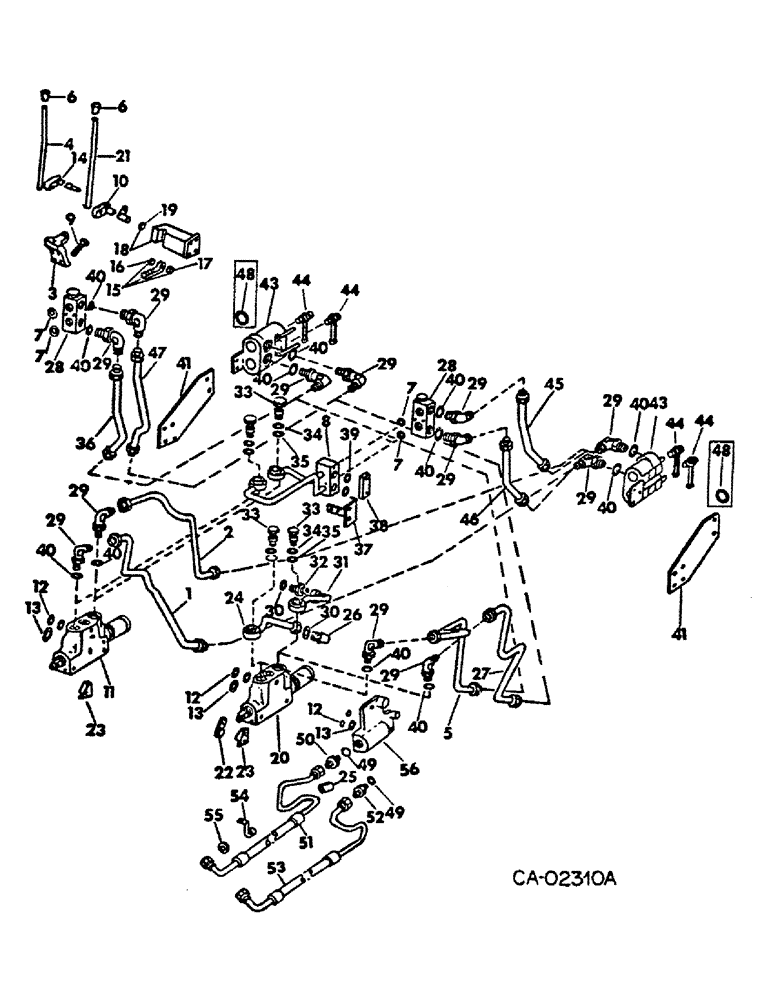

Запчасти Case IH 766 (10-41) - HYDRAULICS, AUXILIARY VALVES AND TUBES, REAR (07) - HYDRAULICS

ATTACHMENT, double auxiliary hydraulic valve w/left and right rear outlets, consists of all unmarked parts and those marked unit A

1шт.

ATTACHMENT, double auxiliary hydraulic valve w/left and right rear outlets and check valve on each rear outlet, consists of all unmarked parts and those marked B

1шт.

ATTACHMENT, single auxiliary hydraulic valve w/left rear outlet, consists of all unmarked parts and those marked unit C

1шт.

ATTACHMENT, single auxiliary hydraulic valve w/left rear outlet and check valve, consists of all unmarked parts, and those marked unit D

1шт.

537254R91

KIT

PARTS ACCESSORY, second auxiliary hydraulic valve w/right rear outlet, gear drive tractors with single auxiliary hydraulic valve, consists of all unmarked parts, and those marked unit E

1шт.

537255R91

KIT

PARTS ACCESSORY, second auxiliary hydraulic valve w/right rear outlet, 966 & 1066 hydrostatic drive and hydro 100 tractors with single auxiliary hydraulic valve, consists of all unmarked parts and those marked unit F

1шт.

1

536976R1

TUBE

ASSY, LH drop, units A and C

1шт.

2

536978R1

TUBE

ASSY, LH lift

1шт.

3

389605R1

BRACKET

float lockout, units A, B, C and D

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

389167R1

LEVER

HANDLE, auxiliary valve control outer, units A, B, E and F

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

5

536977R1

TUBE

ASSY, RH drop, units A, E and f

1шт.

6

3879168R1

KNOB, auxiliary valve control handle, 1 per control handle

1шт.

7

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 x 3/32, 2 for unit D, 4 for unit B

1шт.

8

398420R1

MANIFOLD

ASSY, left rear, units B & D

1шт.

9

20641R1

SCREW

5/16-18 x 1-3/8 hex-hd mach, adjusting screw, 1 for units C, D, E and F, 2 for units A and B

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1 per screw Jam, 5/16"-18, G5

1шт.

10

389164R12

BASE

ASSY, auxiliary valve inner handle, units A, B, C and D

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 X 1-5/16 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

529910R93

LOCK VALVE

VALVE ASSY, hyd open center control, open on both sides

1шт.

11

529912R92

VALVE

ASSY, hyd open center control, open on both sides, for 1466 and 1468 tractors, for components, see list of parts under details of hydraulic controls valve, 1 for units A, B, E and F, 2 for units A and B, 966 and 1066 hydrostatic drive tractors

1шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex-hd cap, 3 for units A, B and E

1шт.

20159R1

BOLT,Hex, 3/8" - 16 x 5 1/8", Gr 8

SCREW, 3/8-16 x 5-1/8 hex-hd cap, 2 for unit F

1шт.

381782R1

BOLT,Hex, 3/8" - 16 x 5 7/8", Gr 8

SCREW, 3/8-16 x 5-7/8 hex-hd cap, unit F

1шт.

12

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, open center control valve small, 2 for units C, D, E and F, 4 for units A and B, gear drive tractors, also units C and D, 966 & 1066 hydrostatic drive tractors, 6 for units A and B, 966 & 1066 hydrostatic drive tractors

1шт.

13

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, open center control valve large

1шт.

1 for units C, D, E and F, 2 for units A and B, gear drive tractors, also units C and D, 966 and 1066 hydrostatic drive and hydro 100 tractors, 3 for units A and B, 966 & 100 hydrostatic drive tractors

1шт.

14

389166R12

BASE

ASSY, auxiliary valve outer handle, units A, B, E and F

1шт.

15

384111R91

SUPPORT

ASSY, double control lever tube inner

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

2шт.

95-11041

WASHER,3/8"

med lock 3/8"

2шт.

16

383234R1

BUSHING,11.14mm ID x 12.71mm OD x 6.35mm L

control lever shaft, units A, B, E and F

1шт.

17

383233R1

BUSHING,19.15mm ID x 20.65mm OD x 9.65mm L

control lever tube

1шт.

18

383235R21

BRACKET

SUPPORT ASSY, control lever, units A, B, C and D

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

19

383236R1

BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L

control lever outer, units A, B, C and D

1шт.

20

529911R93

LOCK VALVE

VALVE ASSY, hyd open center control, closed on one side

1шт.

20

61082C91

VALVE

ASSY, hyd open center control, closed on one side, for 1466 & 1468 tractors, units A, B, C and D, gear drive tractors, for components see list of parts under details of hydraulic control valve

1шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex-hd cap, 3 for units A and B

1шт.

631994R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

SCREW, 3/8-16 x 2-1/2 hex-hd cap, 3 for units C and D

1шт.

21

389165R1

SHAFT

HANDLE, auxiliary valve control inner, units A, B, C and D

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

22

383243R92

ARM

ASSY, valve operating outer, units A, B, E and F

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

23

384112R11

DRIVE ASSY.

ACTUATOR ASSY, valve spool, 1 per valve

1шт.

24

398433R1

TUBE

ASSY right rear lift, unit B

1шт.

25

534214R1

HYDRAULIC HOSE,0.61" ID x 1.25"

Oil Cooler Line Bumper, Units A, B, C, D and F for 966 & 1066 Hydrostatic Drive and Hydro 100 Tractors 0.61" ID x 1.25"

1шт.

26

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg, right rear lift tube, unit B

1шт.

27

536979R1

TUBE

ASSY, RH lift, units A, E and F

1шт.

28

544840R91

LOCK VALVE

VALVE ASSY, double acting check, 1 for unit D, 2 for unit B, for components see list of parts under details of double acting check valve

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2 for unit B Hex, 3/8"-16 x 2", G5

1шт.

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2 for units B and D Hex, 3/8"-16 x 4", G5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065), 2 for unit D, 4 for unit B 3/8"

1шт.

102635

NUT,3/8"-16, G5

2 for unit D, 4 for unit B 3/8"-16, G5

1шт.

29

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg, 2 for unit D w/platform extension, 4 for units C, D, E and F, also units A and B w/platform extension, 8 for units A and B

1шт.

29

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, tractors w/platform extension, 2 for unit D, 4 for unit B

1шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, right rear lift tube, 2 for unit B

1шт.

31

398426R1

TUBE

ASSY, right rear drop, unit B

1шт.

32

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, rear drop tube

1шт.

33

378169R1

SCREW,Hex, 7/8" - 14 x 1.62"

PLUG, union inlet, 2 for unit d, 4 for unit B

1шт.

34

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 2 for unit D, 4 for unit B

1шт.

35

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

15/16 x 1-1/16 x 1/16, 2 for unit D, 4 for unit B

1шт.

36

535042R1

TUBE

ASSY, RH coupler lower, unit B

1шт.

36

535044R1

TUBE ASSY, RH coupler lower, unit B w/platform extension

1шт.

37

398425R1

ANGLE

BRACKET, left rear manifold, units B and D

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

38

398424R1

BAR, left tube manifold block cap, units B and D

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

39

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32, manifold block cap, 2 for units B and D

1шт.

40

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 for units C, D, E and F, 8 for units A and B

1шт.

41

535033R2

BRACKET

coupler, 1 for units C, D, E and F, 2 for units A and B

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap, 2 per bracket

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap, 2 per bracket

1шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap, tractors w/heavy duty drawbar, 3 per bracket

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap, tractors w/two point hitch cross drawbar, 3 per bracket

1шт.

Q5035

WASHER

17/32 x 1 x 16 GA, 2 per bracket

1шт.

41

535038R1

BRACKET, coupler, units B and D w/platform extension

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap, 4 for unit D, 8 for unit B

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga, 2 for unit D, 4 for unit B

1шт.

102637

NUT,1/2"-13, G5

2 for unit D, 4 for unit B 1/2"-13, G5

1шт.

42

(Not used in this application)

1шт.

43

544786R93

COUPLING

COUPLER ASSY, female, 1 for units C, D, E and F, 2 for units A and B, for components, see list of parts under details of female coupler

1шт.

44

64757C1

PLUG

ASSY, coupler dust, 2 for units C, D, E and F, 4 for units A and B, replaces 537589R91 and bracket, 537588R1 (Replace 64759C1)

1шт.

45

353034R1

TUBE ASSY, LH coupler upper, units B and D

1шт.

45

535036R1

TUBE ASSY, LH coupler upper, units B and D w/platform extension

1шт.

46

535035R1

TUBE

ASSY, LH coupler lower, units B and D

1шт.

46

535037R1

TUBE ASSY, LH coupler lower, units B and D w/platform extension

1шт.

47

535041R1

TUBE

ASSY, RH coupler upper, unit B

1шт.

47

535043R1

TUBE ASSY, RH coupler upper, unit B w/platform extension

1шт.

48

25641R1

OIL SEAL

RING, retaining, used only w/bracket, 537588R1

2шт.

49

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, units A, B, C, D and F for 966 & 1066 hydrostatic drive and hydro 100 tractors

1шт.

50

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, units A, B, and F for 966 and 1066 hydrostatic drive and hydro 100 tractors

1шт.

51

67303C91

PACKAGE

oil cooler supply hose service, units A, B and F for 966 & 1066 hydrostatic drive and hydro 100 tractors, consists of (2) clip 67301C1, (1) clip 67302C1, (1) hose 536987R2 (NSS), (1) instruct 1084193R1 (NSS)

1шт.

52

9411106

ELBOW

7/8-14 37 deg hyd flared tube adj str-thd 45 deg, units C and D for 966 and 1066 hydrostatic drive and hydro 100 tractors

1шт.

53

67304C91

PACKAGE

oil cooler supply hose service, units C and D for 966 and 1066 hydrostatic drive and hydro 100 tractors, consists of (2) clip 67301C1, (1) clip 67302C1, (1) hose 536988R2 (NSS), (1) instruct 1084193R1 (NSS)

1шт.

54

67301C1

CLIP

oil cooler supply hose front, units A, B, C, D and F for 966 & 1066 hydrostatic drive and hydro 100 tractors

1шт.

54

67302C1

CLIP

oil cooler supply hose rear, units A, B, C, D and F for 966 & 1066 hydrostatic drive and hydro 100 tractors

1шт.

55

393259R1

HOSE

INSULATOR, oil cooler supply tube, units A, B, C, D and F for 966 & 1066 hydrostatic drive and hydro 100 tractors

1шт.

56

531894R1

COVER

control valve end, units A, B, C and D for 966 and 1066 hydrostatic drive and hydro 100 tractors

1шт.

20157R1

BOLT,3/8" x 3 1/8", Gr 8

SCREW, 3/8-16 x 3-1/8 hex-hd cap, 2 for units C and D

1шт.

381783R1

BOLT,3/8" x 3 7/8", Gr 8

SCREW, 3/8-16 x 3-7/8 hex-hd cap, units C and D

1шт.

20159R1

BOLT,Hex, 3/8" - 16 x 5 1/8", Gr 8

SCREW, 3/8-16 x 5-1/8 hex-hd cap, 2 for units A and B

1шт.

381782R1

BOLT,Hex, 3/8" - 16 x 5 7/8", Gr 8

SCREW, 3/8-16 x 5-7/8 hex-hd cap, units A and B

1шт.

544787R91

COUPLING, BREAK AWAY

COUPLER ASSY, male, not included in attachments or parts accessory

1шт.
