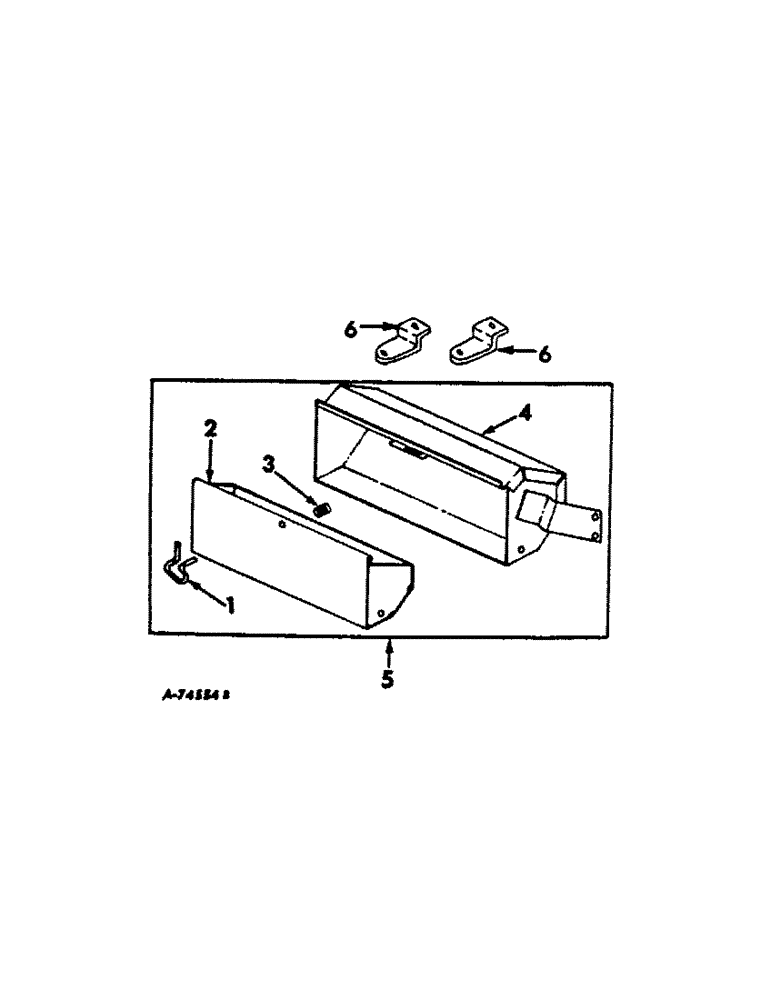

Запчасти Case IH 766 (02-2) - MISCELLANEOUS, TOOL BOX, BASIC, 766 GASOLINE TRACTORS Accessories & Attachments / Miscellaneous

1

383114R1

HANDLE

tool box

1шт.

114856

PIN, 3/64 x 1/2 cot.

1шт.

103338

WASHER,#10

7/32 x 1/2 x 16 ga

1шт.

2

DRAWER ASSY, tool box, tool box, furnish toolbox assembly 534503R1

1шт.

113354

RIVET

3/16 x 1/4 ov-hd tubular

2шт.

3

27452D

VALVE SPRING

SPRING, tool box handle

1шт.

4

534504R1

COVER ASSY, tool box

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

575807R1

WASHER

13/32 x 13/16 x .120

1шт.

179814

SPACER

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

5

534503R1

BOX ASSY, tool

1шт.

6

(Not used in this application)

1шт.
