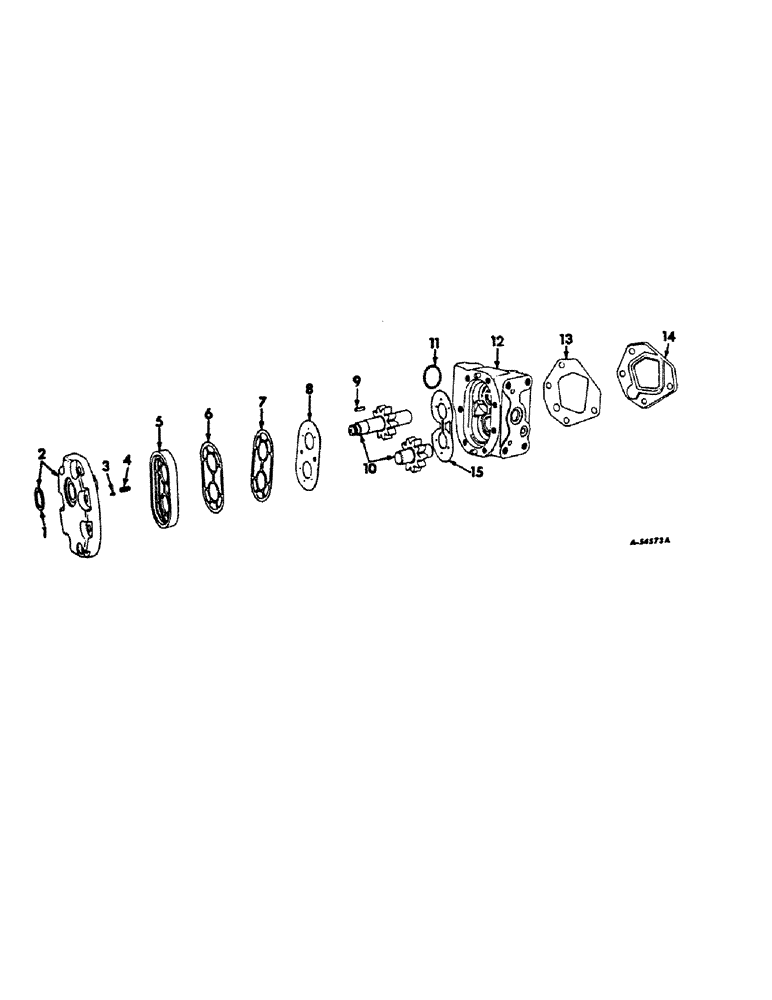

Запчасти Case IH 766 (10-10) - HYDRAULICS, HYDRAULIC PUMP, CESSNA, 12 GPM (07) - HYDRAULICS

70933C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic gear, 12 GPM, optional w/70194C91

1шт.

1949296C1

REMAN-HYD PUMP

1066 (1/74-12/78), 1466 (1/72-12/77), 1468 (1/74-12/76), 966 (1/71-12/71), All DIESEL, 766 (1/72-12/78), HYDRO 100, All INTERNATIONAL 66 SERIES TRACTOR, PUMP ASSY

1шт.

1949297C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

SEAL, pump shaft oil, not serviced separately, order seal repair kit 71264C1

1шт.

2

COVER, pump, not serviced separately, order complete pump assy

1шт.

3

16007R1

BALL

7/32 cr-stl

1шт.

4

383663R1

VALVE SPRING

SPRING, ball check

1шт.

5

SEAL, diaphragm, not serviced separately, order seal repair kit 71264C1

1шт.

6

GASKET, protection, not serviced separately, order seal repair kit 71264C1

1шт.

7

GASKET, back-up, not serviced separately order seal repair kit 71264C1

1шт.

8

DIAPHRAGM, not serviced separately, order seal repair kit 71264C1

1шт.

9

71266C1

KEY

pump drive gear

1шт.

10

GEAR, drive and driven, not serviced separately, order complete pump assy

1шт.

11

O-RING, not serviced separately, order seal repair kit 71264C1

1шт.

12

BODY, pump, not serviced separately, order complete pump assy

1шт.

13

71265C1

GASKET

rear cover

1шт.

14

371524R1

LARGE PLATE

COVER, rear

1шт.

15

PLATE, thrust, not serviced separately, order seal repair kit 71264C1

1шт.

71264C1

SEAL KIT

seal repair

1шт.

Consists of (1) diaphragm (NSS), (1) o-ring (NSS), (1) thrust plate (NSS), (1) spring 383663R1, (1) gasket, back-up (NSS), (1) gasket, protective (NSS), (1) seal, diaphragm (NSS), (1) seal, shaft 16007R1 (NSS), (1) ball, (1) instruction (NSS)

1шт.
