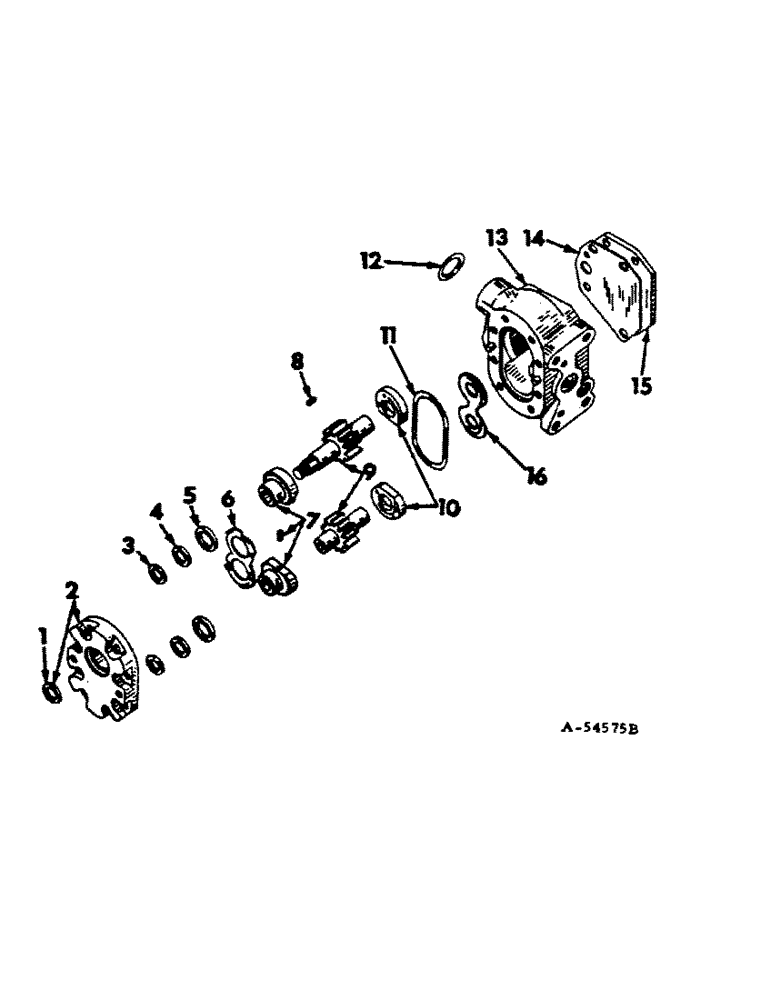

Запчасти Case IH 766 (10-09) - HYDRAULICS, HYDRAULIC PUMP, THOMPSON, 12 GPM (07) - HYDRAULICS

70194C91

PUMP

ASSY, hydraulic gear, optional w/70933C91

1шт.

1

373157R91

OIL SEAL

SEAL, pump shaft oil

1шт.

2

COVER ASSY, pump, not serviced separately order pump assembly

1шт.

306354R2

12 PT SCREW

3/8-16 x 7/8 12 point cap

7шт.

528109R1

SCREW, 3/8-16 x 5/8 12 point cap

1шт.

3

WASHER, back-up, not serviced separately order package, 113791C1

2шт.

4

O-RING, pressure bearing, not serviced separately order package, 113791C1

2шт.

5

374543R1

RETAINER

pressure bearing o-ring

2шт.

6

371530R1

SPRING

pressure plate

1шт.

7

PACKAGE, pressure bearing, not serviced separately order pump assembly

1шт.

8

370942R1

KEY

5/32 x 13/32 sq parallel

1шт.

9

PACKAGE, drive and driven gear, not serviced separately order pump assembly

1шт.

10

PACKAGE, body bearing, not serviced separately order pump assembly

1шт.

19501R1

SCREW, 6-32 x 1 hex-soc-hd cap

6шт.

11

O-RING, pump cover, not serviced separately order package, 113791C1

1шт.

12

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, suction port

1шт.

13

BODY W/BEARING, pump, not serviced separately order pump assembly

1шт.

14

GASKET, implement pump rear cover, not serviced separately order package, 113791C1

1шт.

15

371532R1

COVER, implement pump rear

1шт.

16

528110R1

LARGE PLATE

PLATE, body wear, .10 thick, when ordering wear plate also furnish o-ring and gasket service package, 113791C1

1шт.

113791C1

STRIPPER PACKAGE

PACKAGE, hydraulic pump o-ring and gasket service, replaces 371549R94

1шт.

Consists of (1) oil seal 373157R91, (1) o-ring 252483R1, (1) o-ring 252739R1, (1) o-ring 254091R1 (NSS), (1) o-ring 254691R1, (2) o-ring 386867R1 (NSS), (1) o-ring 352221R1, (2) washer 371548R1 (NSS), (2) washer 374541R1 (NSS)

1шт.
