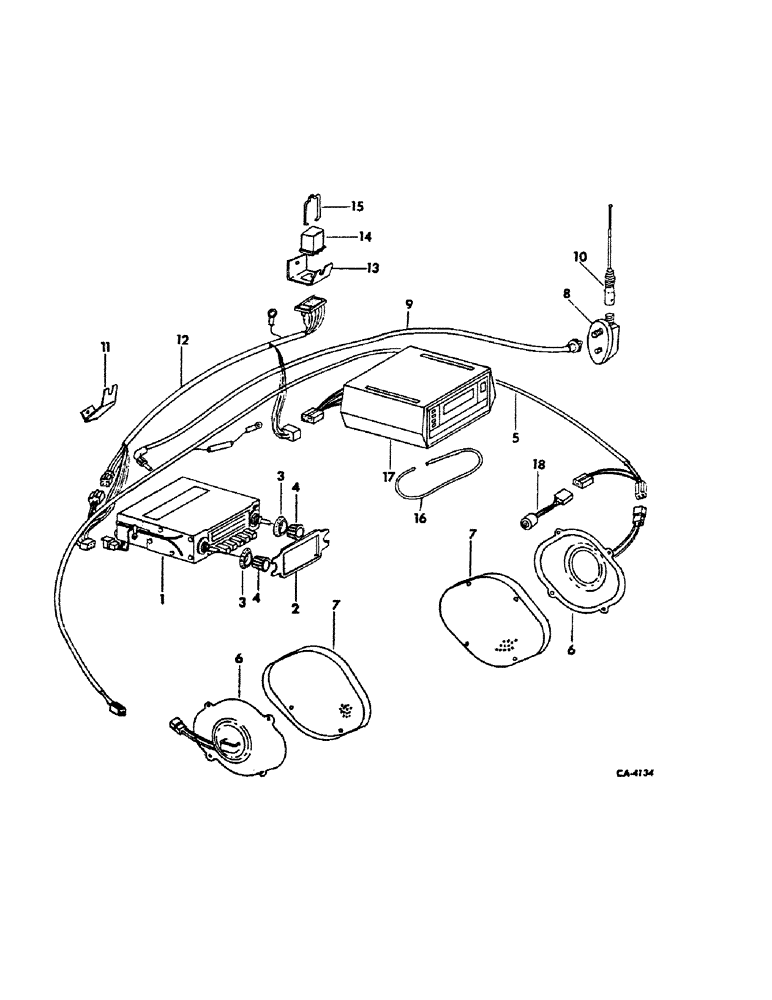

Запчасти Case IH 766 (08-41) - ELECTRICAL, AM/FM RADIO, TAPE PLAYER AND CONNECTIONS (06) - ELECTRICAL

70563C92

PARTS ACCESSORY, AM radio w/fader control, consists of ref. nos. 1 through 11 and instructions

1шт.

70564C92

PARTS ACCESSORY, AM/FM monaural radio w/rader control, consists of ref. nos. 1 through 11 and instructions

1шт.

70565C91

PARTS ACCESSORY, 8 track stereo tape player, consists of ref. nos. 12 through 17 and instructions

1шт.

1

549156C91

RADIO, AM w/fader control

1шт.

1

549157C91

RADIO, AM/FM monaural w/fader control

1шт.

2

326258C1

BEZEL

radio chrome

1шт.

328505C1

NUT

radio mounting

2шт.

3

385532C1

KNOB

tone and fader black

2шт.

4

385533C1

KNOB

on-off and volume control

2шт.

5

70726C1

HARNESS, radio wiring

1шт.

126049

FUSE,5 Amp, Type 1AG

cartridge type AGA5 ampere

1шт.

6

70727C3

SPEAKER

4 x 8 dual 8 OHM radio speaker

1шт.

7

70728C1

GRILLE

GRILL, speaker satin black

2шт.

171929

BRACKET

SCREW, 8-32 x 5/8 C-Z

4шт.

8

70729C1

BASE

ASSY, antenna

1шт.

9

70730C1

CABLE

ASSY, antenna

1шт.

10

70731C1

ANTENNA

MAST, antenna

1шт.

11

70738C1

BRACKET, radio mounting

1шт.

21026R1

SCREW

1/4-20 x 1/2 hex-hd

1шт.

21026R1

SCREW

1/4-20 x 1/2 hex-hd

1шт.

178518

WASHER, 1/4 tooth lock

3шт.

178518

WASHER, 1/4 tooth lock

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

12

70732C1

HARNESS ASSY, tape player

1шт.

13

70739C1

BRACKET, relay and tape player mounting

1шт.

14

70733C1

RELAY, switching

1шт.

15

70734C1

SPRING, hold down

1шт.

436803

SCREW, #4-40 x 3/8 sc-pan-hd C-Z

1шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

1шт.

225-14104

NUT,#4-40

hex #4-40

1шт.

16

70735C1

GASKET, tape player mounting

1шт.

17

70725C1

PLAYER, 8 track stereo tape

1шт.

18

70566C91

JACK

PARTS ACCESSORY, headphone jack with instructions

1шт.
