Запчасти Case IH 766 (08-38) - ELECTRICAL, DELUXE TRACTOR CAB WIRING (06) - ELECTRICAL

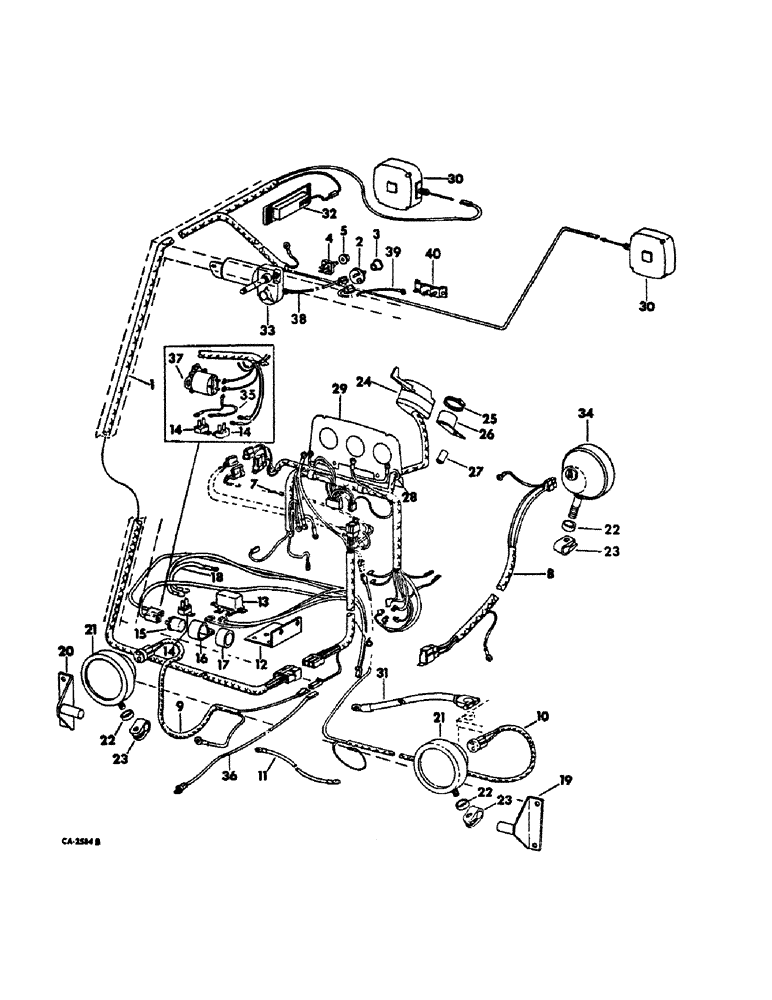

Схема запчастей Case IH 766 - (08-38) - ELECTRICAL, DELUXE TRACTOR CAB WIRING (06) - ELECTRICAL
38
14
23
28
22
30
32
10
12
14
6
25
29
30
13
8
23
18
36
22
27
34
22
23
39
1
21
14
21
31
35
37
9
11
26
4
16
5
19
40
15
20
17
2
24
7
3
33

Артикул

Название

Примечание

Количество

1

539051R2

HARNESS ASSY, cab light duty

1шт.

1

539060R2

HARNESS

ASSY, cab heavy duty, tractor cabs w/air conditioning

1шт.

2

537027R1

SWITCH

1 speed wiper

1шт.

3

535729R1

KNOB

wiper switch

1шт.

4

539052R2

SWITCH

blower

1шт.

5

539809R1

KNOB

blower switch

1шт.

6

537050R2

HARNESS

ASSY, cab power cable, light duty

1шт.

6

537065R2

HARNESS

ASSY, cab power cable, heavy duty, tractor cabs w/air conditioning

1шт.

7

537051R1

HARNESS

ASSY, cab tractor panel

1шт.

8

537052R1

HARNESS

ASSY, cab rear combination light cable

1шт.

9

537053R1

HARNESS

ASSY, front RH flood light cable

1шт.

10

537054R1

HARNESS

ASSY, front LH flood light cable

1шт.

11

537055R1

CABLE

ASSY, cab tractor ground

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap, located underneath RH front cab floor

1шт.

178556

WASHER,Ext-Int Tooth, 7/16"

3/8 znd int-ext tooth lock, use under ground terminal of cab

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

12

537056R3

BRACKET, cab relay

1шт.

321872R1

SCREW

W/NYLON PELLET INSERT, 3/8-16 x 3/4 hex-hd cap

2шт.

178556

WASHER,Ext-Int Tooth, 7/16"

3/8 C-Z int-ext tooth lock

2шт.

13

1115841

RELAY

cab load, 202303R91

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 znd int-ext tooth lock

2шт.

14

403069R1

CIRCUIT-BREAKER,30A

BREAKER, circuit, 30 amp, light duty harness

1шт.

14

403069R1

CIRCUIT-BREAKER,30A

BREAKER, circuit, 30 amp, heavy duty harness

2шт.

120614

NUT,Hex, #10 - 32

NUT, , 2 per circuit breaker #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, , 2 per circuit breaker #10

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 zn int-ext tooth lock

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

15

394132R91

FLASHER UNIT

FLASHER, turn signal & warning light

1шт.

16

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 znd int-ext tooth lock

1шт.

17

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

18

403070R2

CABLE ASSY, relay terminal to circuit breaker

1шт.

19

537057R2

BRACKET

ASSY, LH front flood light

1шт.

20

537057R2

BRACKET

ASSY, RH front flood light, replaces 537058R1

1шт.

21

391005R91

HEADLIGHT

LIGHT ASSY, front flood sealed beam, only serviceable items are sealed beam unit, 373662R91, rubber retainer, 676078R1 and connector, 530029R91

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

22

365503R1

SPACER

front flood light & combination rear light

3шт.

23

350920R1

CLAMP

front flood light & combination rear light

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

24

401612R2

SIGNAL

SWITCH, turn signal

1шт.

25

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

CLAMP, switch mounting

1шт.

26

401609R1

BRACKET ASSY, turn signal switch

1шт.

192280

HOLE PLUG BUTTON,1 1/4"

PLUG, 1-1/4 C-Z button

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

SCREW, 5-16-18 x 1-3/4 C-Z hex-hd cap

1шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z int-tooth lock

1шт.

27

U13039

SPACER

turn signal bracket mounting

1шт.

28

363846R1

GROMMET

turn signal switch cable

1шт.

29

538055R1

PANEL ASSY, instrument upper

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

9шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

9шт.

30

67538C92

HEADLIGHT

LIGHT ASSY, combination flashing and turn signal, square, only serviceable item is lamp 9417866

2шт.

124934

HOSE

1/2-20 znd hex jam

2шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

31

537063R1

CABLE

ASSY, battery to solenoid switch, 766 diesel, 966, 1066, 1466, 1468 and hydro 100 tractors

1шт.

31

537062R1

CABLE

ASSY, battery to solenoid switch, 766 gasoline tractors

1шт.

32

539050R1

LIGHT

ASSY, cab dome

1шт.

33

537026R91

MOTOR

ASSY, 1 speed wiper

1шт.

34

387729R92

LIGHT ASSY.

LIGHT ASSY, combination rear and tail, only serviceable items are sealed beam unit, 371461R91, rubber retainer, 676078R1 and lamp, 455490

1шт.

35

537066R1

CABLE ASSY, magnetic switch to circuit breakers junction, tractors cabs w/air conditioning

1шт.

36

395472R1

CABLE ASSY, air conditioner clutch, tractor cabs w/air conditioning

1шт.

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, air conditioner clutch cable

1шт.

37

107655C1

SOLENOID SWITCH

SWITCH ASSY, cab load magnetic, replaces 537067R2 and 66581C3, tractor cabs w/air conditioning

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 znd int-ext tooth lock

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

38

67257C1

CABLE

CABLE ASSY, wiper, Serial Range: switch-motor

1шт.

39

67258C1

CABLE

CABLE ASSY, wiper switch to junction block

1шт.

40

378336R91

BLOCK

ASSY, junction

1шт.

445666

SCREW, 10-32 x 3/8 znp cr-rec truss hd mach

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

362122R1

CLIP

cab power cable harness, on RH side throttle bracket support bolt

1шт.

362126R1

CLIP

cab power cable harness, on RH side front relay bracket mounting bolt

1шт.

363660R1

CLIP

cab power cable harness, twisted, on hi-lo shift shaft bushing fron mounting bolt

1шт.

370820R1

CLIP

cable harness, on flood light and combination light stems

3шт.

362121R1

CLIP

combination rear light cable harness, on LH rear corner of tractor platform

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

362121R1

CLIP

combination rear light cable harness, on LH rear cab face

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1/2 znd hex washer hd tapping

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 zn int-ext-tooth lock

1шт.

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, flood light cable harness, on LH & RH upper battery support bolts

2шт.

178556

WASHER,Ext-Int Tooth, 7/16"

3/8 znd int-ext tooth lock

2шт.

384559R1

CLIP

flood light cable harness, on LH side of clutch housing

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.
