Запчасти Case IH 766 (08-32) - ELECTRICAL, ELECTRIC LIGHTING, TRACTORS WITH DELUXE FLAT TOP FENDERS (06) - ELECTRICAL

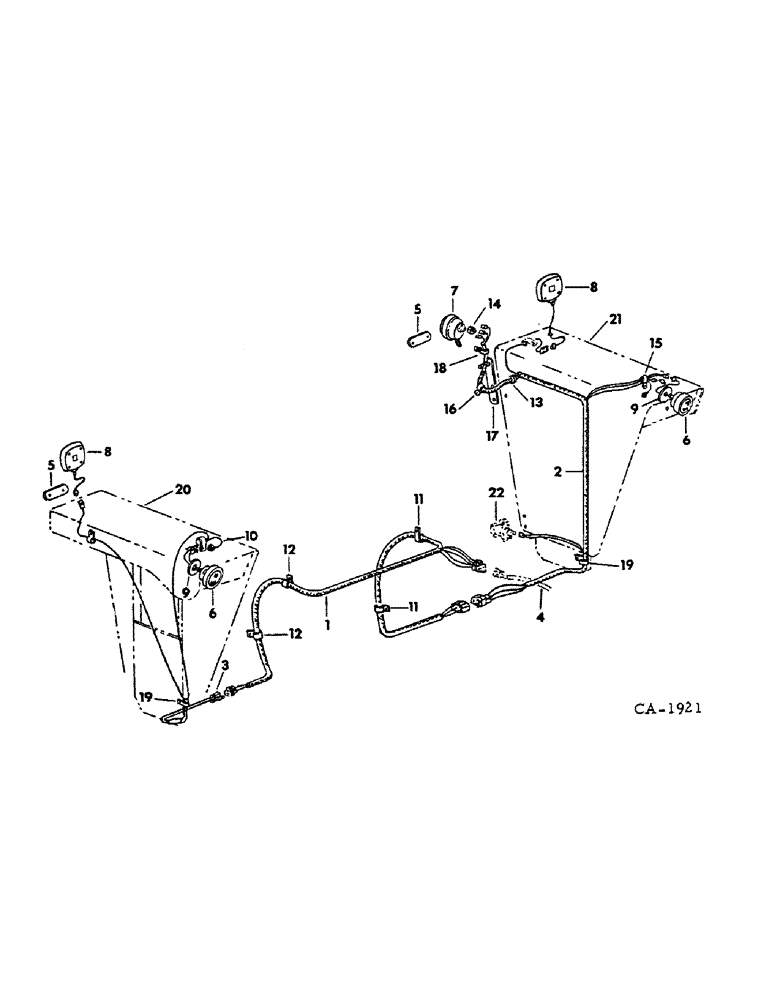

Схема запчастей Case IH 766 - (08-32) - ELECTRICAL, ELECTRIC LIGHTING, TRACTORS WITH DELUXE FLAT TOP FENDERS (06) - ELECTRICAL
22
1
5
19
10
3
2
12
11
20
15
6
19
21
8
9
8
11
16
14
7
4
18
5
13
12
6
6
17
9

Артикул

Название

Примечание

Количество

1

533254R1

HARNESS

ASSY, fender main

1шт.

2

533255R1

HARNESS

ASSY, LH fender

1шт.

67278C1

CABLE ASSY, flashing warning light extension, tractors w/four post protective frame

1шт.

67277C1

HARNESS ASSY, rear combination light extension, tractos w/four post protective frame

1шт.

266516C1

CONNECTOR, ELEC

CONNECTOR, extension harness, tractors w/four post protective frame

1шт.

3

533256R1

CABLE

ASSY, fender lighting RH

1шт.

4

HARNESS ASSY, main cable, refer to starting and lighting listing, this group

1шт.

5

REFLECTOR, refer to starting and lighting listing, this group

1шт.

6

388946R91

LIGHT

ASSY, flood, only serviceable items are sealed beam unit, 390756R91 and rubber retainer, 676078R1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

LIGHT ASSY, combination rear & tail, refer to starting and lighting listing, this group

1шт.

8

LIGHT ASSY, flashing warning, refer to starting and lighting listing, this group

2шт.

9

388947R1

RETAINER

head light

2шт.

10

405209R1

CABLE

ASSY, flood light to ground junction

1шт.

11

383622R1

CLIP

main cable harness

2шт.

12

384558R1

CLIP

main harness at carrier

2шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095

2шт.

13

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

combination rear light rubber

1шт.

14

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear light

1шт.

15

362121R1

CLIP

fender lighting cable

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

362127R1

CLIP

flashing light cable

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 znd hex-hd cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

382407R11

BAR

BRACKET ASSY, rear light

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, combination rear light harness

1шт.

19

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, fender lighting cable

2шт.

120376

NUT,5/16"-18, G5

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

2шт.

20

FENDER ASSY, RH, refer to deluxe fenders listing, group 13

1шт.

21

FENDER ASSY, LH, refer to deluxe fenders listing, group 13

1шт.

22

SOCKET ASSY, breakaway connector, refer to starting and lighting listing, this group

1шт.

405226R1

CABLE ASSY, flashing light, tractors w/two post protective frame

1шт.

394420R1

BRACKET, flashing warning light, tractors w/four post protective frame

2шт.

358986R1

CABLE CLIP

CLIP, cable harness

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 znd ext-tooth lock

2шт.

370821R1

CLIP,ELECTRICAL

CLIP, combination rear light extension harness, tractors w/four post protective frame

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

2шт.

Выбрано товаров: 50
