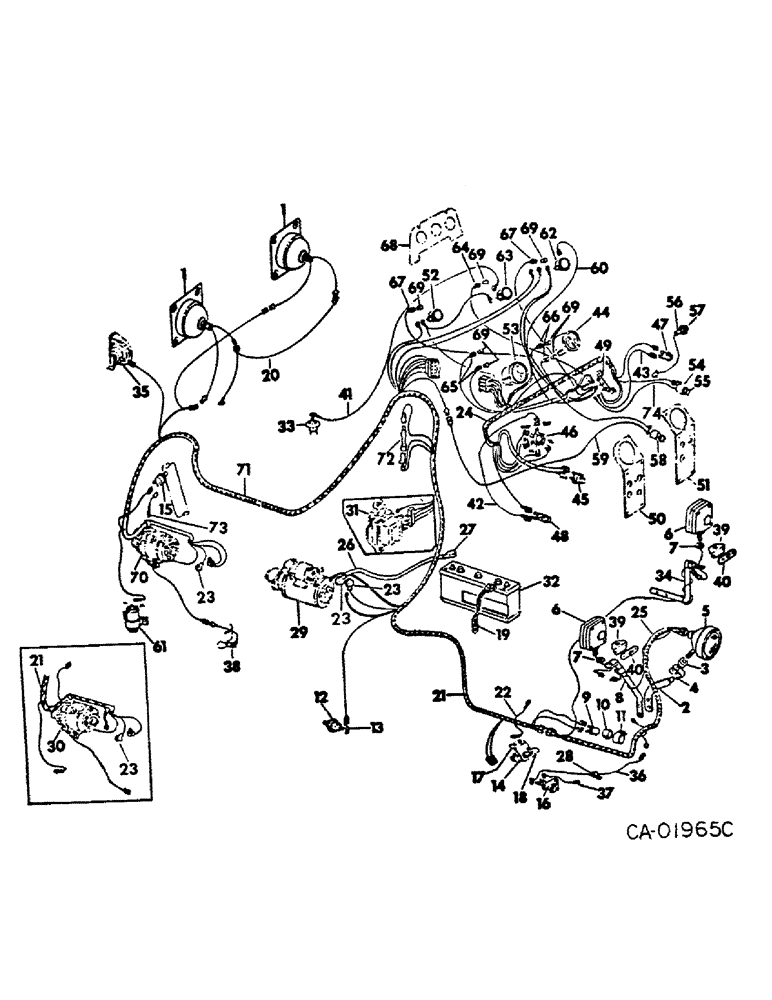

Запчасти Case IH 766 (08-17) - ELECTRICAL, STARTING AND LIGHTING, 766 GASOLINE TRACTORS (06) - ELECTRICAL

1

533063R91

LIGHT

ASSY, shock proof head, only serviceable item are sealed beam unit, 373662R91 and rubber retainer, 676078R1

2шт.

533081R1

SCREW,Phillips Drive, Flat HD, 1/4" x 1"

head light support

8шт.

2

397479R11

SUPPORT

ASSY, rear light bracket

1шт.

3

365503R1

SPACER

combination rear light

1шт.

4

350920R1

CLAMP

combination rear light

1шт.

5

387729R92

LIGHT ASSY.

LIGHT ASSY, combination rear and tail, only serviceable items are sealed beam unit, 371461R91, rubber retainer, 676078R1 and lamp, 455490

1шт.

102637

NUT,1/2"-13, G5

1шт.

6

67538C92

HEADLIGHT

LIGHT ASSY, square vertical warining, only serviceable item is lamp, 9417866

2шт.

405226R1

CABLE ASSY, flashing light, tractors w/two post protective frame and w/o fenders

1шт.

120371

NUT,1/2"-20, G5

2шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

2шт.

7

394262R1

WASHER

GASKET, flashing warning light

2шт.

8

394135R1

BRACE, LH flashing warning light MTG

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .060) 3/8"

2шт.

9

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

10

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

11

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

12

376855R92

SWITCH

transmission oil pressure

1шт.

13

384396R1

SPADE TERMINAL,Male

TERMINAL, transmisison oil pressure switch straight

1шт.

14

121629C1

IGNITION SWITCH

SWITCH ASSY, neutral starting

1шт.

15

SWITCH ASSY, electric air cleaner, refer to electronic air cleaner switch listing, this group

1шт.

16

362002R92

SOCKET

ASSY, breakaway connector

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

For tractors w/o deluxe fenders Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

18660R1

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 2

SCREW, 1/4-20 x 2-1/4 znd hex-hd cap for tractors w/deluxe fenders

2шт.

8719W

SPACER, 1/8 x 1-3/8 std pipe for tractors w/deluxe fenders

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

534484R1

BRACKET, neutral starting switch

1шт.

14991R1

BOLT

3/8-16 x 5/8 short sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

18

534409R1

ROD

neutral starting switch

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

19

629029R92

NEG BATTERY CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

20

534374R1

CABLE

ASSY, head light, Serial Range: junction-ground

1шт.

21

534369R1

HARNESS ASSY, main cable, Serial Range: -7404

1шт.

86982772

GROMMET

main cable harness, in upper heat shield

1шт.

22

405219R1

CABLE

ASSY, platform to rear frame ground

1шт.

23

399470R1

BOOT

INSULATOR, terminal

2шт.

24

534367R1

HARNESS

ASSY, instrument panel cable

1шт.

25

534370R1

HARNESS

ASSY, combination and flashing warning light

1шт.

26

384198R91

CABLE

ASSY, battery to solenoid switch

1шт.

26

537062R1

CABLE

ASSY, battery to solenoid switch, tractors w/deluxe cab

1шт.

364910R1

BOOT

COVER, battery terminal

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

27

383618R1

COVER

battery cable terminal

1шт.

28

395228R1

CABLE CLIP

CLIP, breakaway connector cable, tractors w/o deluxe fenders

1шт.

29

CRANKING MOTOR, refer to cranking motor listing, this group

1шт.

30

ALTERNATOR GENERATOR, refer to alternator generator listing, this group, Serial Range: -7404

1шт.

31

VOLTAGE REGULATOR, refer to alternator- generator and connections listing, this group, Serial Range: -7404

1шт.

32

406104R1

BATTERY, prestolite 3323X-12 volt

1шт.

32

392236R91

BATTERY, prestolite 3327X-12 volt, heavy duty

1шт.

33

SENDING UNIT, fuel gage, refer to fuel tank, piping and connections listing, group 12

1шт.

34

533090R1

PIPE, RH flashing warning light mtg

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

2шт.

PO10532

WASHER

13/32 x 1-1/4 x 11 ga

2шт.

20285H

WASHER

13/32 x 3/4 x 11 ga

2шт.

102635

NUT,3/8"-16, G5

2шт.

35

411949C91

HORN

ASSY, electric

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

36

405889R1

CABLE PULLING GRIP

CABLE ASSY, harness junction to breakaway connector socket, tractors w/o deluxe fenders

1шт.

36

405877R1

HARNESS

CABLE ASSY, harness junction to breakaway connector socket, tractors w/deluxe fenders

1шт.

37

404395R1

CABLE

ASSY, breakaway connector, Serial Range: socket-ground

1шт.

38

SOLENOID ASSY, fuel shut-off, refer to carburetor listing, eng

2шт.

39

533091R1

BRACKET, reflector mounting

2шт.

40

533092R1

REFLECTOR

red rear

2шт.

163162

SCREW,Self Tap, Cross Pan Hd, #8 - 18 x 1/2"

8-18 x 1/2 C-Z cr-rec-pan-hd tap

4шт.

41

68624C1

CABLE

ASSY, fuel gauge to sending unit

1шт.

145510

FUSE,1 Amp, Type 3AG

cartridge type AGC

1шт.

42

404401R1

CABLE PULLING GRIP

CABLE ASSY, fuse housing to lighting switch

1шт.

43

534372R1

CABLE

ASSY, key switch to junction block

1шт.

44

GAUGE ASSY, cluster, refer to instrument panel and gauges listing, group 11

1шт.

45

SWITCH ASSY, push botton, refer to engine controls and switches listing, this group

1шт.

46

SWITCH ASSY, lighting, refer to engine controls and switches listing, this group

1шт.

47

SWITCH ASSY, key, refer to engine controls and switches listing, this group

1шт.

48

HOUSING ASSY, fuse, refer to engine controls and switches listing, this group

1шт.

49

BLOCK ASSY, junction, refer to engine controls and switches listing, this group

1шт.

50

PANEL ASSY, instrument LH, refer to instrument panel and gauges listing, group 11

1шт.

51

PANEL ASSY, instrument RH, refer to instrument panel and gauges listing, group 11

1шт.

52

INDICATOR, electric air cleaner, refer to instrument panel and gauges listing, group 11

1шт.

53

TACHOMETER SPEEDOMETER, refer to instrument panel and gauges listing, group 11

1шт.

54

107595C91

LAMP

LIGHT ASSY, transmission oil pressure, replaces 392441R91, by also furnishing cable assy 121626C1

1шт.

55

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt

1шт.

56

406127R1

LAMP BASE

LIGHT ASSY, shift quadrant

1шт.

57

9417865

BULB,2C2R, #1155, 13.5V

no. 1155 12 volt light

1шт.

58

SWITCH ASSY, horn, refer to engine controls and switches listing, this group

1шт.

59

405221R1

CABLE

ASSY, horn switch to harness junction

1шт.

60

534373R1

CABLE ASSY, horn switch to charge indicator

1шт.

61

IGNITION COIL, refer to spark plugs, coil, cables, and distributor listing, eng

2шт.

62

GAUGE ASSY, charge indicator, refer to instrument panel and gaugess listing, group 11

1шт.

63

GAUGE ASSY, fuel, refer to instrument panel and gauges listing, group 11

1шт.

64

534819R1

SOCKET

ASSY, fuel gauge instrument light

1шт.

65

534848R1

SOCKET

ASSY, tachometer instrument light

1шт.

66

534847R1

SOCKET

ASSY, gauge cluster instrument light

1шт.

67

534849R1

WIRE HARNESS

SOCKET ASSY, charge & air indicator instrument light

1шт.

68

PANEL ASSY, instrument upper, refer to instrument panel and gauges listing, group 11

1шт.

69

9417863

BULB,C2F, #1895, 14V

no. 1895 12-volt light

7шт.

70

ALTERNATOR GENERATOR, refer to alternator generator this group, Start Serial: 7405

1шт.

71

538996R1

HARNESS ASSY, main cable, Start Serial: 7405

1шт.

86982772

GROMMET

main cable harness, in upper heat shield

1шт.

72

548239R2

RECTIFIER

DIODE ASSY, Start Serial: 7405

1шт.

73

405209R1

CABLE

ASSY, vaccum switch to ground, Start Serial: 7405

1шт.

74

121626C1

CABLE ASSY.

CABLE ASSY, trans. oil pressure warning light

1шт.

405883R91

PARTS ACCESSORY, electric breakaway connector socket, tractors w/o deluxe fenders

1шт.

Consists of (1) cable 404395R1, (1) cable 405889R1, (1) clip 395228R1, (2) nut 120375, (2) screw 64022H, (2) screw 180020, (1) socket 362002R92, (2) washer 120380, (2) washer 121841

1шт.

405884R91

PARTS ACCESSORY, electric breakaway connector socket, tractors w/deluxe fenders, c

1шт.
