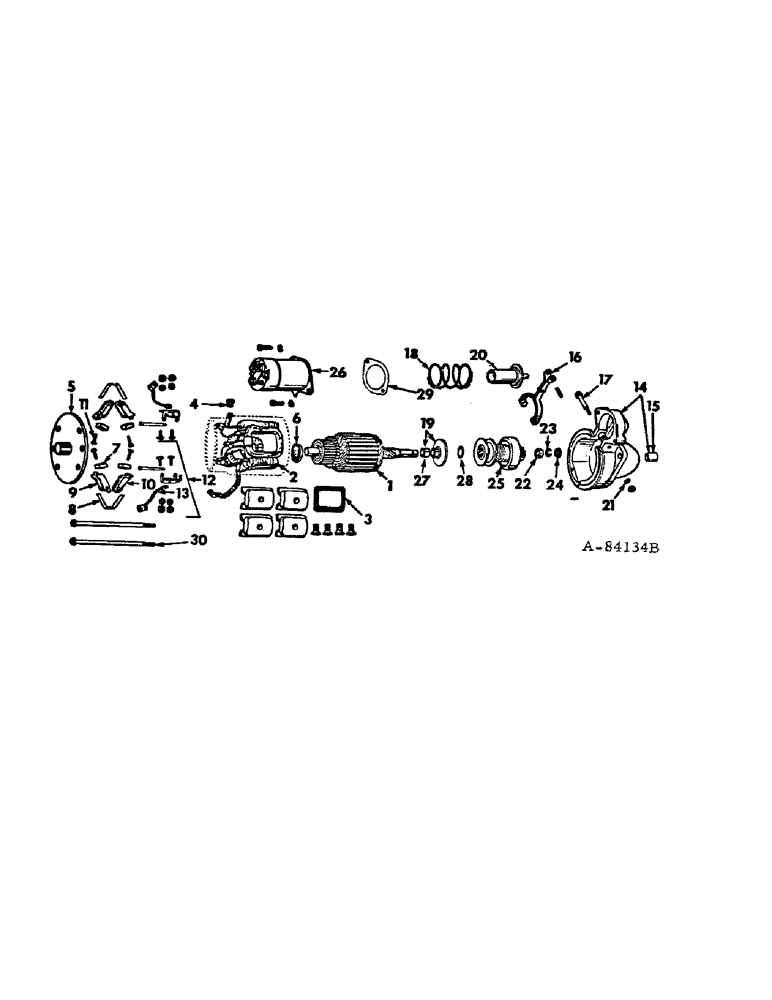

Запчасти Case IH 766 (08-07) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, 766 GASOLINE TRACTORS (06) - ELECTRICAL

1108334

SPARE PART MOTOR ASSY, cranking, 396565R92 12 volt

1шт.

104193A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104193A1C

CORE-STARTER

Return Number

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

1947353

FRAME

ARMATURE

1шт.

2

1942870

COIL

FIELD COIL ASSY, 3 coils

3шт.

1935131

COIL

COIL, shunt field

1шт.

3

1927853

FOAM INSULATION

INSULATION, field coil

4шт.

4

1966391

GROMMET

GROMMET, field frame

1шт.

5

1928966

FRAME

FRAME, commutator end

1шт.

6

1914842

WASHER

WASHER, commutator end brake

1шт.

7

1906945

COMMUTATOR BRUSH

BRUSH

1шт.

8

1926622

VALVE SPRING

SPRING, brush

2шт.

9

1940477

HOLDER

HOLDER, brush ground

2шт.

10

1926618

HOLDER

HOLDER, brush insulated

2шт.

11

1926648

SCREW, brush attaching

4шт.

12

1922801

PACKAGE, brush holder support

2шт.

13

1926605

ELECTRICAL WIRE

WIRE LEAD, brush ground

2шт.

14

1968704

HOUSING ASSY, drive end

1шт.

15

1839345

BUSHING

BUSHING, drive end bushing

1шт.

16

1951567

LEVER

LEVER, shift

1шт.

17

1814529

STUD, shift lever

1шт.

18

1958679

SPRING

SPRING, plunger return

1шт.

19

820149

PLATE

PLATE ASSY, center bearing

1шт.

20

1941113

PLUNGER

PLUNGER, solenoid switch

1шт.

21

1953479

WASHER, shift lever stud sealing lock

2шт.

22

1928021

COLLAR

COLLAR, pinion stop drive end

1шт.

23

1928022

SNAP RING

RING, pinion stop retainer drive end

1шт.

24

1928023

WASHER

COLLAR, drive end spacing

1шт.

25

1851427

DRIVE

DRIVE ASSY, motor

1шт.

26

1114356

SOLENOID,Starter

SWITCH ASSY, solenoid, optional w/64478C1

1шт.

26

65478C1

SWITCH

SWITCH ASSY, solenoid, optional w/1114356

1шт.

120622

NUT,#8-32

NUT, #8-32

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

121-841

WASHER, no. 8 C-Z med lock

2шт.

110730

LOCK WASHER

WASHER, 3/8 light lock

1шт.

27

820148

BUSHING

BUSHING, center bearing

1шт.

28

R15043

WASHER

WASHER, between center bearing & motor drive

1шт.

29

1952427

GASKET

GASKET, solenoid switch

1шт.

30

A41342

BOLT

BOLT, thru

2шт.
