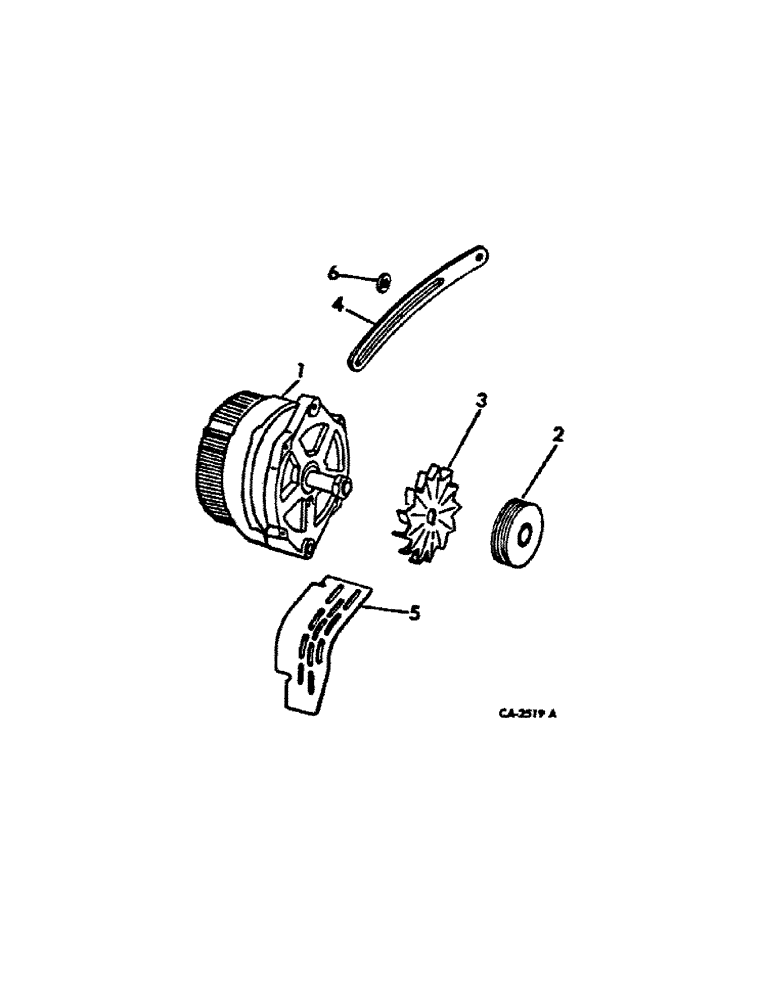

Запчасти Case IH 766 (08-04) - ELECTRICAL, ALTERNATOR-GENERATOR AND CONNECTIONS, WITH INTEGRAL VOLTAGE REGULATOR (06) - ELECTRICAL

1

1100578

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 37 ampere, 538988R91, order 1110583, for components see list of parts under detail of alternator generator, all 766 diesel tractors

1шт.

1

1100578

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 37 ampere, 538988R91, order 1110583, for components see list of parts under detail of alternator generator, 966 tractors, Start Serial: 11684

1шт.

1

1100578

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 37 ampere, 538988R91, order 1110583, for components see list of parts under detail of alternator generator, 1066 tractors, Start Serial: 12510

1шт.

1

1100578

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 37 ampere, 538988R91, order 1110583, for components see list of parts under detail of alternator generator, 1466 tractors, Start Serial: 10326

1шт.

1

1100578

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 37 ampere, 538988R91, order 1110583, for components see list of parts under detail of alternator generator, all 1468 tractors

1шт.

1

1100578

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 37 ampere, 538988R91, order 1110583, for components see list of parts under detail of alternator generator, all hydro 100 tractors

1шт.

1

1102375

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 72 ampere, 548237R91, order 1100585, tractors w/air conditioned cab, for components see list of parts under details of alternator generator, all 766 diesel tractors

1шт.

1

1102375

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 72 ampere, 548237R91, order 1100585, tractors w/air conditioned cab, for components see list of parts under details of alternator generator, 966 tractors, Start Serial: 11524

1шт.

1

1102375

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 72 ampere, 548237R91, order 1100585, tractors w/air conditioned cab, for components see list of parts under details of alternator generator, 1066 tractors, Start Serial: 12276

1шт.

1

1102375

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 72 ampere, 548237R91, order 1100585, tractors w/air conditioned cab, for components see list of parts under details of alternator generator, 1466 tractors, Start Serial: 10231

1шт.

1

1102375

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 72 ampere, 548237R91, order 1100585, tractors w/air conditioned cab, for components see list of parts under details of alternator generator, all 1468 tractors

1шт.

1

1102375

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 72 ampere, 548237R91, order 1100585, tractors w/air conditioned cab, for components see list of parts under details of alternator generator, all hydro 100 tractors

1шт.

1

A47625

ALTERNATOR

ALTERANTOR - 12 Volt 72 ampere

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 72 Ampere

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 Ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Part Number, 12 volt 63 Ampere

1шт.

1

87297246

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 61 Amp Alternator

1шт.

1

103802A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 Ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 Ampere

1шт.

1

103806A1C

CORE-ALTERNATOR

Return Part Number

1шт.

121743

CHAIN,#12 - 24

12-24 C-Z hex. mach screw

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT - 3/8-16 PHC hex. lock

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

2

384645R1

PULLEY

PULLEY, alternator generator, 766 diesel, 966, 1066, and 1466 tractors

1шт.

2

676628R1

PULLEY

PULLEY, alternator generator, 1468 tractors

1шт.

2

537070R1

PULLEY

PULLEY, alternator generator, double groove, w/air conditioned cab

1шт.

3

221425R1

FAN

FAN, alternator generator

1шт.

4

532418R1

BRACE

BRACE, alternator generator, 766 diesel, 966, 1066, and 1466 tractors

1шт.

4

168130R1

SPARE PART BRACE, alternator generator, 1468

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

71197C91

STRIPPER PACKAGE

PACKAGE, alternator shield

1шт.

6

557265R1

WASHER

WASHER, .344 x 1.0 x .105

1шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/U6-18 distorted thd lock

1шт.

537326R1

BOLT

SCREW, 5/16-18 x 1-1/2 znd hex-hd cap

1шт.
