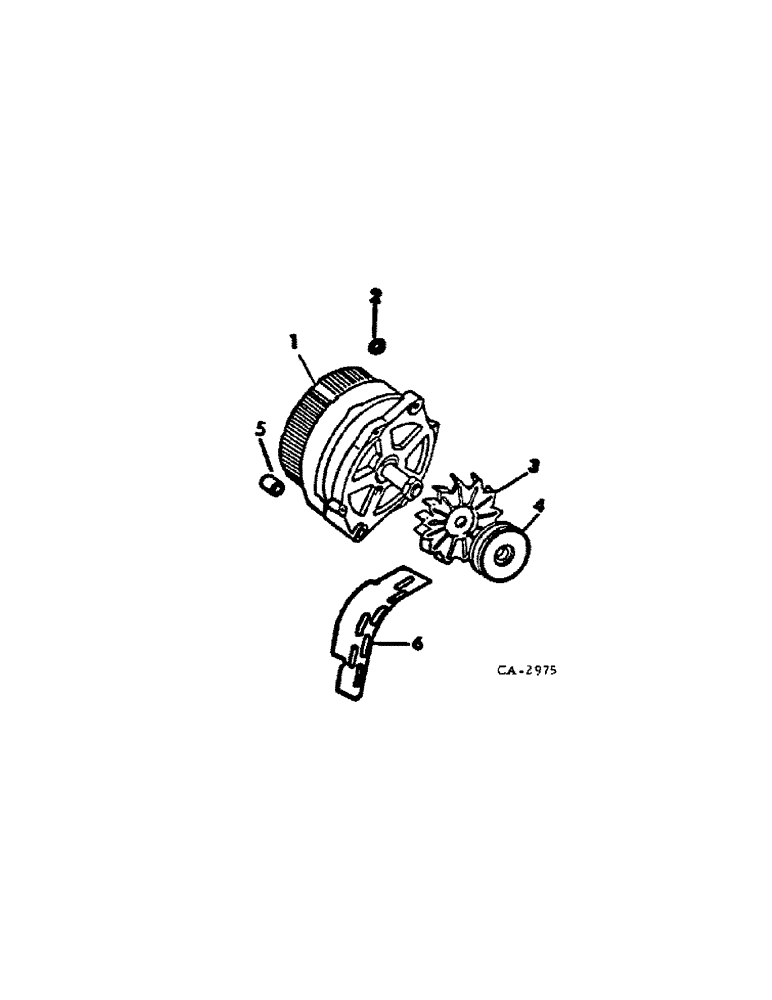

Запчасти Case IH 766 (08-04[A]) - ELECTRICAL, ALTERNATOR-GENERATOR & CONNECTIONS, W/ INTEGRAL VOLTAGE REGULATOR, 766 GASOLINE TRACTORS (06) - ELECTRICAL

1

1100593

ALTERNATOR GENERATOR ASSY, 37 ampere, 539323R91, order 1100583, for components see list of parts under detail of alternator generator

1шт.

1

1100583

GENERATOR

ALTERNATOR GENERATOR ASSY, 42 ampere, for components see list of parts under details of alternator generator

1шт.

1

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Reman For New PN A47625

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere,

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex. mach screw

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex. lock

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

SCREW, 3/8-16 x 4-1/2 hex-hd cap

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

20285H

WASHER

WASHER, 13/32 x 3/4 x 11 ga

3шт.

2

557265R1

WASHER

WASHER, .344 x 1.0 x .105

1шт.

537326R1

BOLT

SCREW, 5/16-18 x 1-1/2 znd hex-hd cap

1шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/U6-18 distorted thd lock

1шт.

3

221425R1

FAN

FAN, alternator generator

1шт.

4

384986R1

PULLEY

PULLEY, alternator generator

1шт.

5

384993R1

SPACER

SPACER, alternator generator

1шт.

6

71196C92

PACKAGE

PACKAGE, alternator pulley shield, consists of (1) shield (NSS), (1) instructions (NSS), (1) screw 537326R1, (2) washer 557265R1, (1) nut 472146R1, (1) screw 186288, (1) nut 9413953

1шт.
