Запчасти Case IH 766 (08-02) - ELECTRICAL, ALTERNATOR-GENERATOR & CONNECTIONS, W/ EXTERNAL VOLTAGE REGULATOR, 766 GASOLINE TRACTORS (06) - ELECTRICAL

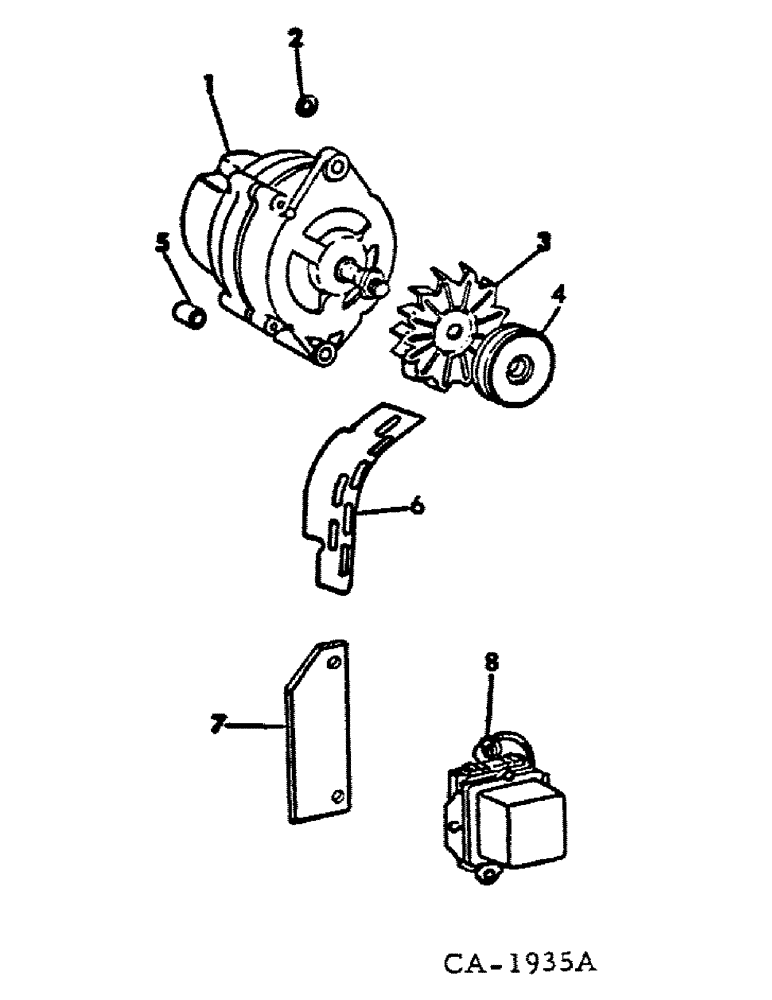

Схема запчастей Case IH 766 - (08-02) - ELECTRICAL, ALTERNATOR-GENERATOR & CONNECTIONS, W/ EXTERNAL VOLTAGE REGULATOR, 766 GASOLINE TRACTORS (06) - ELECTRICAL
3
6
4
2
8
5
1
7

Артикул

Название

Примечание

Количество

1

1100805

GENERATOR

ALTERNATOR GENERATOR ASSY, 32 ampere, 702337C91, for components see list of parts under detail of alternator generator

1шт.

1

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Reman For New P/N A47625

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103806A1C

CORE-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere, Return Number

1шт.

121743

CHAIN,#12 - 24

12-24 C-Z hex. mach screw

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex. lock

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

SCREW, 3/8-16 x 4-1/2 hex-hd cap

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

20285H

WASHER

WASHER, 13/32 x 3/4 x 11 ga

3шт.

2

280185R1

SPACER

SPACER, alternator generator brace

1шт.

537326R1

BOLT

SCREW, 5/16-18 x 1-1/2 znd hex-hd cap

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

1шт.

3

221425R1

FAN

FAN, alternator generator

1шт.

4

1961261

PULLEY

PULLEY, alternator generator, 384986R1

1шт.

5

384993R1

SPACER

SPACER, alternator generator

1шт.

6

537721R2

SPARE PART SHIELD, alternator fan & pulley, also order package, 537722R91, Serial Range: -7247

1шт.

7

535994R1

SPARE PART BRACKET ASSY, voltage regulator

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

1шт.

179804

RETAINING WIRE

SCREW, 1/4-20 x 1-7/8 hex-hd cap

1шт.

385544R1

SPACER,1/4" Pipe x 3/8"

SPACER, mounting bracket, short

1шт.

385545R1

SPARE PART SPACER, mounting bracket, long

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

1119507

GOVERNOR

REGULATOR ASSY, voltage, optional w/65030C1

1шт.

1962629

BRACKET

BRACKET ASSY, shock mount, optional w/65304C1

1шт.

65303C1

REGULATOR

REGULATOR ASSY, voltage, optional w/1119507

1шт.

65304C1

PACKAGE

BRACKET ASSY, shock mount, optional w/1962629

1шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

537722R91

PACKAGE

PACKAGE, alternator pulley shield, consists of (1) instructions (NSS), (1) nut 120376, (1) nut 9413953, (1) screw 186288, (1) screw 537326R1, (1) washer 120393, (3) washer 20285H, Serial Range: -7247

1шт.

Выбрано товаров: 36
