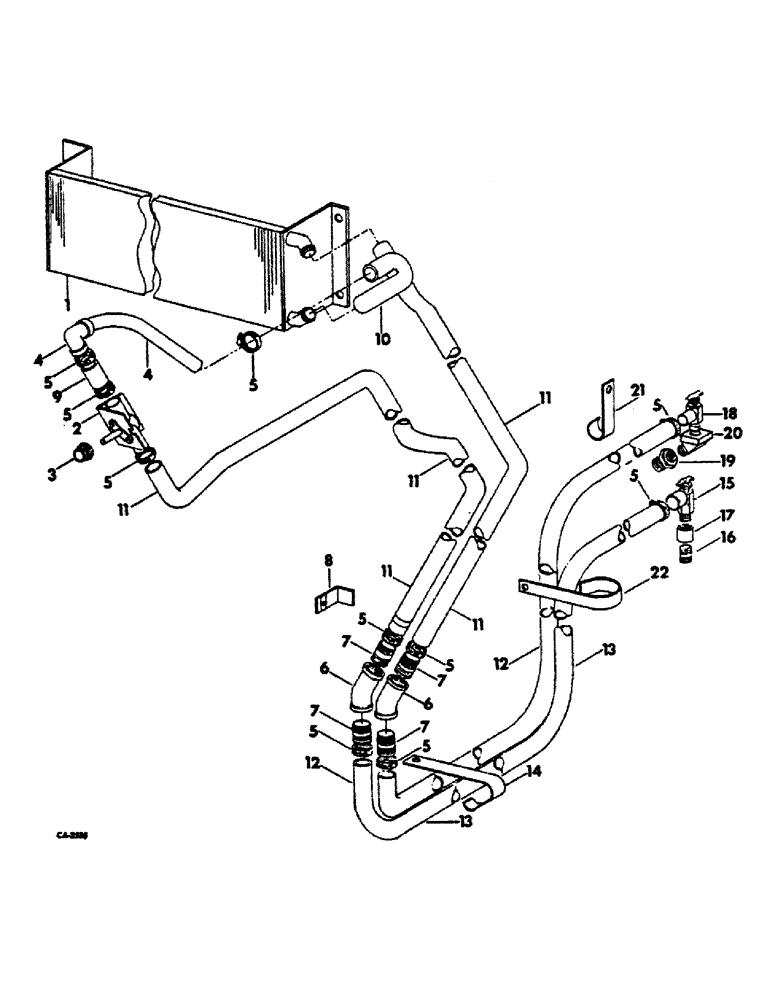

Запчасти Case IH 766 (13-51) - SUPERSTRUCTURE, HEATER AND CONNECTIONS, CUSTOM CAB, 766 GASOLINE TRACTORS (05) - SUPERSTRUCTURE

1

539021R1

CORE ASSY, heater

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

2

539020R1

VALVE

heater control

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

3

539024R1

KNOB

1шт.

4

539042R1

TUBE ASSY, inlet

1шт.

5

39093H

HOSE CLAMP

CLAMP, hose

12шт.

6

144136

ELBOW, 3/4 45 deg znp pipe

2шт.

7

574631R1

FITTING

NIPPLE, 3/8 x 2 pipe

4шт.

8

539038R1

RETAINER, hose

2шт.

9

HOSE, heater, use 2 in. of 5/8 ID heater hose from a 50 ft roll marked, 117724C1

1шт.

10

HOSE, heater, use 8 in. of 5/8 ID heater hose from a 50 ft roll marked, 117724C1

1шт.

11

HOSE, heater, use 72 in. of 5/8 ID heater hose from a 50 ft roll marked, 117724C1

2шт.

12

HOSE, heater inlet, use 52 in. of 5/8 ID heater hose from a 50 ft roll marked, 117724C1

1шт.

13

HOSE, heater outlet, use 76 in. of 5/8 ID heater hose from a 50 ft. roll marked, 117724C1

1шт.

14

391179R3

CLIP, straight double heater hose

1шт.

15

301803R91

VALVE

ASSY, heater inlet shut-off

1шт.

16

191296

PIPE,Nipple, 3/8" NPT x 4 1/2"

NIPPLE, 3/8 x 4-1/2 pipe

1шт.

17

120755

COUPLING,3/8" NPT

3/8 pipe

1шт.

18

941980R91

LOCK VALVE

VALVE ASSY, heater outlet shut-off

1шт.

19

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8 reducing pipe

1шт.

20

444056

ELBOW

3/8-18 45 deg auto. pipe

1шт.

21

534671R1

CLIP, heater hose single

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

22

537064R1

CLIP, 90 deg double heater hose

1шт.
