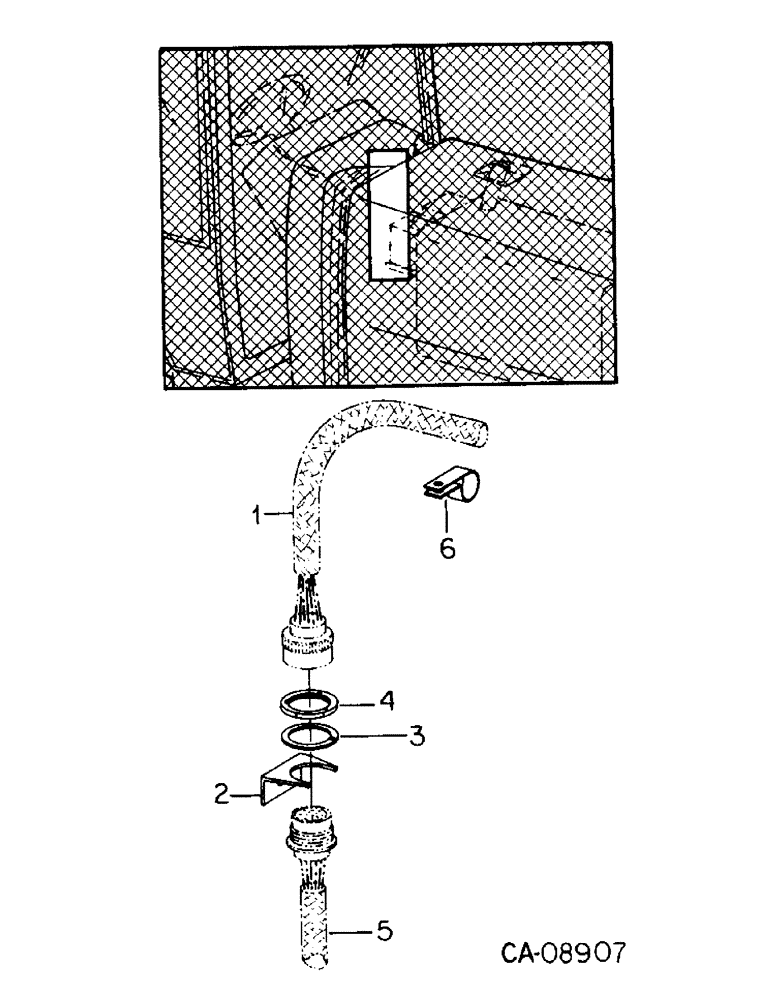

Запчасти Case IH 7488 (08-15) - ELECTRICAL, PIVOT AREA WIRING HARNESSES, SUPPORTS, CLIPS AND CONNECTIONS (06) - ELECTRICAL

1

HARNESS ASSY, intermediate, Refer to chassis wiring, forward listing, this group

1шт.

2

245510C2

SUPPORT, bulkhead connector on firewall

1шт.

30848R2

BOLT,Hvy Hex, M10 x 1.5 x 20mm, Cl 10.9

M10 x 20MM phc flg class 10.9

3шт.

31083R1

NUT,M10 x 1.5, Flg, Cl 10

M10 class 10 phc flg

3шт.

3

459330R1

WASHER, harness connector lock

1шт.

4

459329R1

NUT, harness connector

1шт.

5

HARNESS ASSY, instrument main, Refer to instrument panel wiring listing, this group

1шт.

6

892033C1

CLAMP

1.25 dia znp coated closed, Intermediate harness at cowl support

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

245822C1

CABLE

ASSY, front frame ground, steering relief valve mtg bracket to steering check valve mtg bolt

1шт.

892033C1

CLAMP

1.250 dia znp coated med clo, Upper LH side of cowl support, On hose support assy

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , 1 per clamp 1/8" x 3/4"

1шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064, 2 per clamp

1шт.
