Запчасти Case IH 7488 (08-13) - ELECTRICAL, CHASSIS WIRING HARNESSES, SUPPORTS AND CLIPS, FORWARD OF ARTICULATION POINT (06) - ELECTRICAL

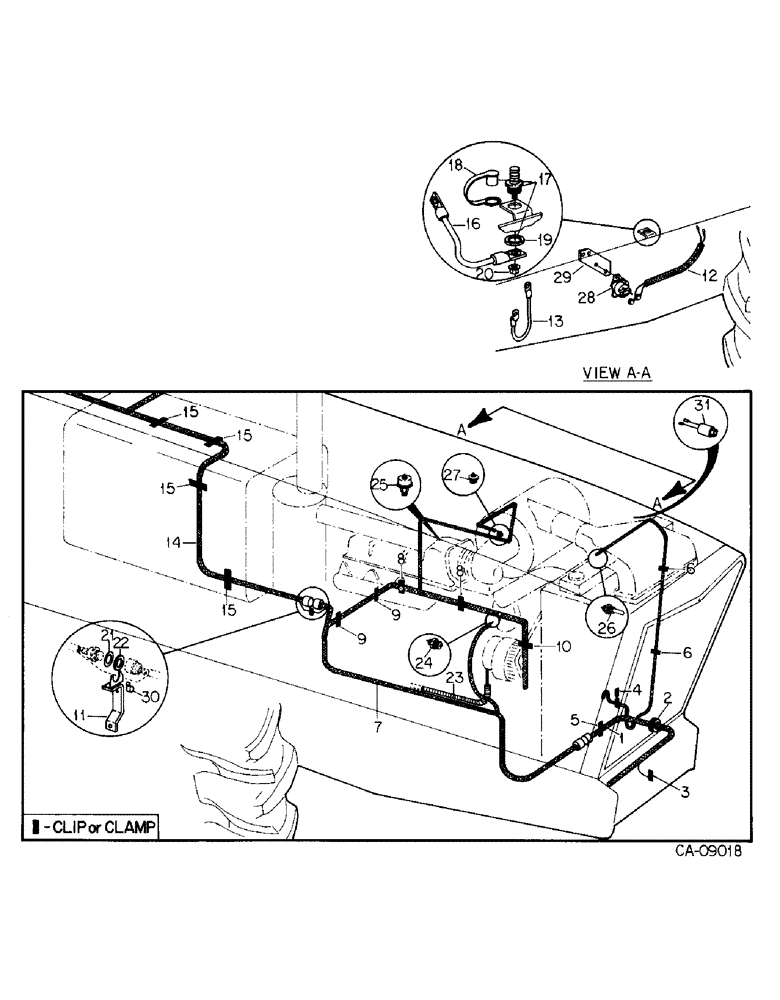

Схема запчастей Case IH 7488 - (08-13) - ELECTRICAL, CHASSIS WIRING HARNESSES, SUPPORTS AND CLIPS, FORWARD OF ARTICULATION POINT (06) - ELECTRICAL
8
15
23
25
9
6
20
5
6
28
30
13
31
15
16
8
11
12
17
27
7
15
26
18
19
21
9
10
22
29
3
24
15
2
14
4

Артикул

Название

Примечание

Количество

1

245282C1

HARNESS

ASSY, front end

1шт.

399470R1

BOOT

coolant probe terminal insulator

1шт.

121814R1

RETAINER, probe boot

1шт.

2

587215R1

GROMMET,1 1/2" ID x 2 1/8" x .062"

1-1/2 x 1-1/8 x 7/16 N/C rub, in radiator baffle

1шт.

3

362126R1

CLIP

horn cable, on horn mounting bracket

1шт.

4

363660R1

CLIP

front end harness, twisted, ether solenoid cable

1шт.

5

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, front end harness, on radiator shroud below fan

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, front end harness, coolant level cables on fan shroud LH side

2шт.

7

245292C3

HARNESS

ASSY, engine

1шт.

399470R1

BOOT

INSULATOR, terminal

4шт.

892033C1

CLAMP

1.250 dia znp coated med clo, On engine LH behind fuel filters

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

561277R1

SPACER,5/8" Tube x 1/2"

5/8 x .500 tube

1шт.

8

362123R1

CLIP

engine harness

2шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2 type 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

9

362123R1

CLIP

engine harness rear

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, engine harness, under bottom bolt of injection pump

1шт.

11

1269378C1

SUPPORT

ASSY, engine/intermediate harness junction

1шт.

30021R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

PHC Hex, M10 x 30, 10.9, Full Thd

1шт.

933965R1

LOCK WASHER,M10

1шт.

30168R1

NUT,M10, Cl 10

M10 phc class 10

1шт.

12

245310C1

HARNESS

ASSY, magnetic switch to cranking motor

1шт.

399470R1

BOOT

terminal insulator

2шт.

13

245507C1

CABLE PULLING GRIP

CABLE ASSY, engine ground

1шт.

14

245143C4

HARNESS

ASSY, intermediate

1шт.

15

245517C1

CLIP

CLAMP, intermediate harness, to hydraulic tubes above & side of tank

8шт.

31047R1

BOLT,Hex Flg, M6 x 25, 8.8

M6 x 25 phc cl 8.8 flg/hd

4шт.

31081R1

NUT,M6 x 1, Flg, Cl 8

M6 class 10 phc flg

4шт.

16

245506C1

CABLE PULLING GRIP

CABLE ASSY, jump start stud, positive

1шт.

17

582784C91

STUD

jump start positive

1шт.

18

582783C1

CAP

jump start stud insulator

1шт.

19

150450H1

LOCK NUT

NUT, 1-11-1/2 NPSM conduit lock

1шт.

20

476074C1

NUT

3/8-16 terminal

1шт.

21

459330C1

LOCK WASHER

WASHER, cable harness junction lock

1шт.

22

459329C1

NUT

cable harness junction

1шт.

23

CABLE ASSY, alternator output, Refer to battery, fuse holder and connections listing, this group

1шт.

24

121756C2

SENSOR

SENDER, coolant temp

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

25

130707C3

SENDER UNIT

SENDER, engine oil pressure

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

26

449791C1

SWITCH

PROBE ASSY, low coolant level

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

27

3224405R91

RESTRICTION SWITCH

SWITCH ASSY, electric air cleaner

1шт.

28

121613C1

IGNITION SWITCH

SWITCH ASSY, cranking motor solenoid

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4 x 1/2 type 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

29

224980C1

SUPPORT

ASSY, solenoid switch

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2 type 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

30

362127R1

CLIP

intermediate/engine harness

1шт.

31

111266C1

SWITCH, A/C HIGH PRE

SWITCH ASSY, high pressure, On compressor discharge hose

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, cable lock

1шт.
