Запчасти Case IH 7488 (08-10) - ELECTRICAL, TRACTOR SAFETY LIGHTS AND CONNECTIONS (06) - ELECTRICAL

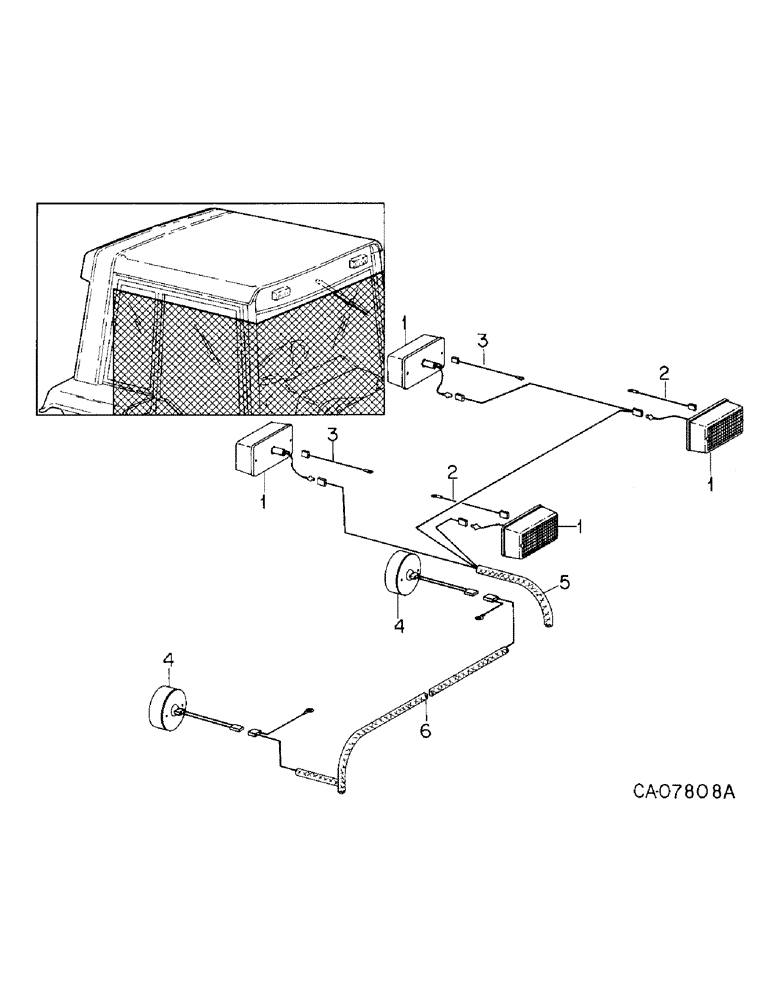

Схема запчастей Case IH 7488 - (08-10) - ELECTRICAL, TRACTOR SAFETY LIGHTS AND CONNECTIONS (06) - ELECTRICAL
2
3
1
5
1
1
6
4
3
1
4
2

Артикул

Название

Примечание

Количество

1

130882C91

LAMP

LIGHT ASSY, comb flash/turn signal, Only serviceable items are

4шт.

130883C1

LENS

comb flash/turn signal

4шт.

9417866

BULB,C6, #1156, 12.8V

LAMP, type C-6 trade #1156

4шт.

1276059C1

SELF-TAP SCREW,Pan HD, #10 - 16 x 3"

SCREW, SELF-TAPPING, , polyseal p/hdcr tap Cross Pan Hd, #10 x 2 1/2"

8шт.

2

111263C3

CABLE

ASSY, front turn signal light ground

2шт.

3

111264C3

CABLE

ASSY, rear turn signal light ground

2шт.

456107C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10-16 x 1/2 phc c/r s/d tap

2шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 ext-int tooth lock

2шт.

4

131183C91

STOP LIGHT

LAMP ASSY, tail

2шт.

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 p/hdcr tap

4шт.

5

111227C3

HARNESS

ASSY, main cab cable

1шт.

6

245179C1

HARNESS

ASSY, fender lights

1шт.

Выбрано товаров: 12
