Запчасти Case IH 7488 (08-08) - ELECTRICAL, TRACTOR FLOOD AND HEAD LIGHTS AND CONNECTIONS (06) - ELECTRICAL

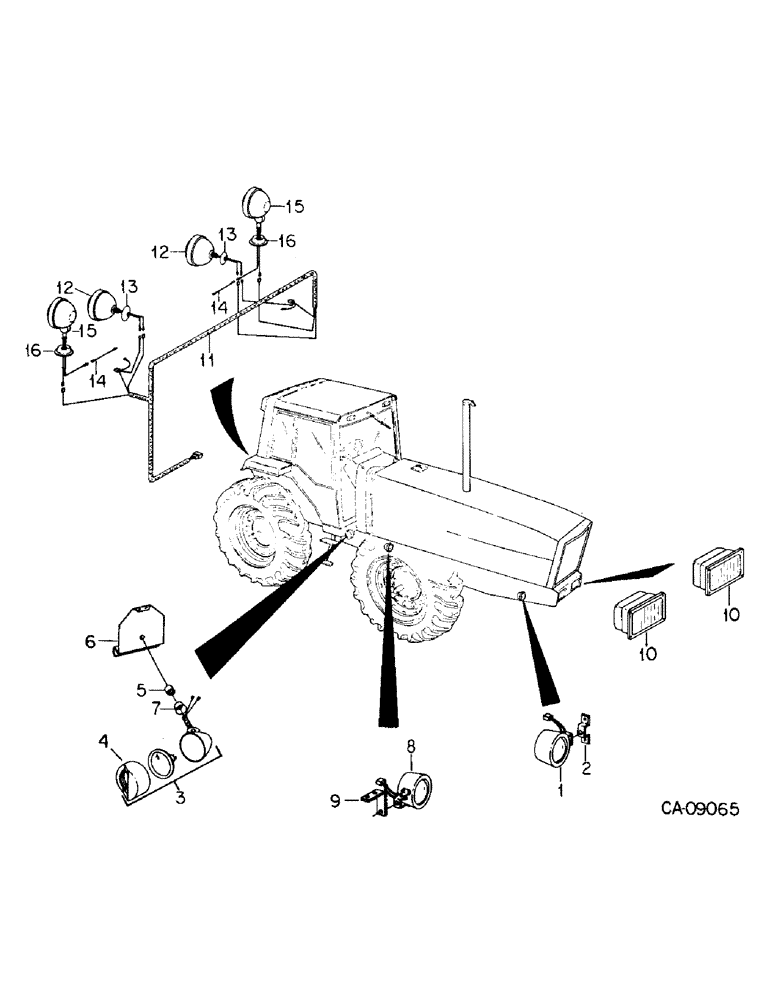

Схема запчастей Case IH 7488 - (08-08) - ELECTRICAL, TRACTOR FLOOD AND HEAD LIGHTS AND CONNECTIONS (06) - ELECTRICAL
16
13
15
1
14
13
8
6
3
5
16
15
11
10
10
9
4
2
7
12
14
12

Артикул

Название

Примечание

Количество

1

1258290C92

LIGHT

ASSY, front side, halogen, Includes lamp

2шт.

131203C1

LAMP

sealed beam unit

2шт.

2

141791C1

BRACKET

light

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

NLS

NO LONGER SERVICED

3/8 pln hi-crown stl

4шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

4шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

3

245718C91

HEADLIGHT

LIGHT ASSY, center flood, Includes lamp and Ref: 4

2шт.

131203C1

LAMP

sealed beam unit

2шт.

4

107471C1

RETAINER

shock proof light

2шт.

5

1267358C2

SEAT

BUSHING, light mounting, seat

2шт.

22187R1

WASHER

.531 x 1.125 x .054

2шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-NF p/t lock type 5

2шт.

6

1250477C3

BRACKET

light mounting

2шт.

118071C2

SCREW,Phillips Drive, Truss HD, #8 - 18 x 1/2"

panel mounting

2шт.

138534

LOCK WASHER,Int Tooth, #10

WASHER, no. 10 int phc tooth lock

8шт.

7

358900R1

SEAL

COVER, dust

2шт.

8

1258290C92

LIGHT

ASSY, front axle flood

2шт.

131203C1

LAMP

sealed beam unit

2шт.

9

141895C1

BRACKET

light mounting

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

4шт.

102635

NUT,3/8"-16, G5

4шт.

10

146512C91

INTERIOR LIGHT

LIGHT ASSY, rectangular head, Includes lamp

2шт.

131423C1

LAMP

sealed beam unit

2шт.

27118R1

SCREW, no. 10 x 1 phc o/hdcr mach

4шт.

157190

SCREEN

SCREW, no. 10 x 1-1/2 phc o/hdcr mach

4шт.

11

245179C1

HARNESS

fender lights

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int tooth lock

2шт.

169850C1

CLIP

1шт.

370383R1

CLIP

rear lamp harness conduit, convolute, Use 26 in. from roll marked 464835C1

2шт.

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

7/8 x 1-9/16 x 3/4 D/C rub

1шт.

12

388945R91

HEADLIGHT

LIGHT ASSY, rear flood, Only serviceable items are

2шт.

373662R91

LAMP

type C-6 trade #4411, or

2шт.

131508C1

LAMP BASE

LAMP, replacement GE #H7610

2шт.

676078R1

RETAINER

shock proof light

2шт.

13

388947R1

RETAINER

light

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

2шт.

14

405209R1

CABLE

ASSY, aux light ground

2шт.

15

131368C92

HEADLIGHT

LIGHT ASSY, rear aux flood, Only serviceable items are

2шт.

131203C1

LAMP

sealed beam

2шт.

676078R1

RETAINER

shockproof light, For J.W. Hobbs light assy

2шт.

1252609C1

RETAINER

shockproof light, for Midwest Mfg. light assy

2шт.

16

1267358C2

SEAT

flood light mtg ball

2шт.

120371

NUT,1/2"-20, G5

2шт.

362667R1

CLIP

aux lighting cable

3шт.

Выбрано товаров: 47
